Productnummer: 3385893

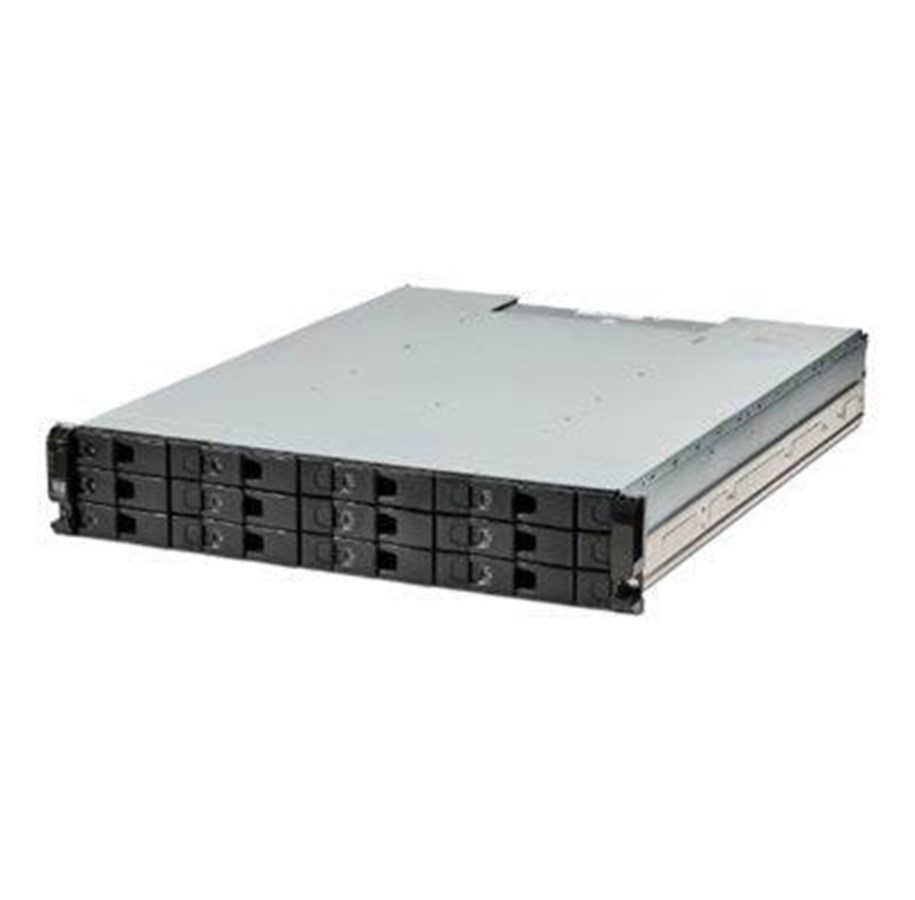

Seagate Exos E 2U12 J1212X000000DA - storage enclosure
Opslagbehuizing, 12 bays (SAS-3), rack-uitvoering, 2U
4.198,12 €
3.469,52 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 12 - 13 werkdagen levertijd
The Seagate Exos E 2U12 storage enclosure is engineered to meet the demanding storage needs of businesses, offering a blend of performance, reliability, and scalability. With support for up to 12 Serial Attached SCSI 3 modules, it provides a flexible solution for data growth, allowing for seamless expansion. The device ensures operational continuity through hot-swappable controllers and fans, alongside a robust power redundancy system featuring a dual internal power supply with 580 W and a 1+1 redundancy scheme. Designed to operate in a wide range of environmental conditions, the Seagate Exos E 2U12 maintains optimal performance with an operating temperature range of 5°C to 40°C and humidity range of 10 - 80% non-condensing. Its compliance with numerous standards, including RoHS, FCC, and UL 60950-1, underscores its global applicability and reliability. Whether for critical business operations or expanding storage needs, the Seagate Exos E 2U12 is a comprehensive solution that delivers on both performance and durability.
Producent
Productnummer
3385893
Model
J1212X000000DA-02
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Seagate Exos E 2U12 J1212X000000DA - opslagbehuizing
Type apparaat
Opslagbehuizing
Type bijvoegsel
Rack-uitvoering - 2U
Aantal geïnstalleerde apparaten/modules
12 (max.)
Ondersteunde Drives
SAS-3
Ingebouwde apparaten
2 x I/O-module
Harde schijf
Geen HDD
Stroom
90-264 V wisselstroom V 50/60 Hz
Stroomredundantie
Ja
Afmetingen (BxDxH)
48.3 cm x 63 cm x 8.89 cm
Algemeen
Type apparaat
Opslagbehuizing
Type bijvoegsel
Rack-uitvoering - 2U
Chassis
Ingebouwde apparaten
2 x I/O-module
Aantal ondersteunde apparaten/modules
12
Ondersteunde Drives
SAS-3
Harde schijf
Type
Geen HDD
Uitbreiding / Aansluiting
Expansion Bays
12 (totaal) / 12 (vrij) x hot-swap - 3.5"
Interfaces
6 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644)
1 x serieel RS-232
1 x beheer - RJ-45
1 x serieel RS-232
1 x beheer - RJ-45
Diversen
Voorzieningen
In bedrijf verwisselbare regelaars, hot-swappable ventilators
Kabels meegeleverd
2 x gegevenskabel
Software meegeleverd
Genesis Enclosure Management 5.x
Conformiteitsnormen
UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07, EN 60950-1, IEC 60950-1, CCC, BIS, Directive 2009/125/EC, AS/NZS CISPR 32 Class A, CNS 13438 Class A, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 B Class A, ICES-3(A)/NMB-3(A), KN24, KN35, VCCI Class A, FCC, RoHS 2011/65/EU, WEEE, KC, RCM
Meegeleverde accessoires
Rail kit
Stroom
Voeding
2 x interne stroomtoevoer - hot-plug
Stroomredundantie
Ja
Stroomredundantieschema
1+1
Vereiste netspanning
90-264 V wisselstroom V 50/60 Hz
Geleverde energie
580 watt
Afmetingen & gewicht
Breedte
48.3 cm
Diepte
63 cm
Hoogte
8.89 cm
Omgevingsparameters
Min. gebruikstemperatuur
5 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
10 - 80% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
