Productnummer: 3362031

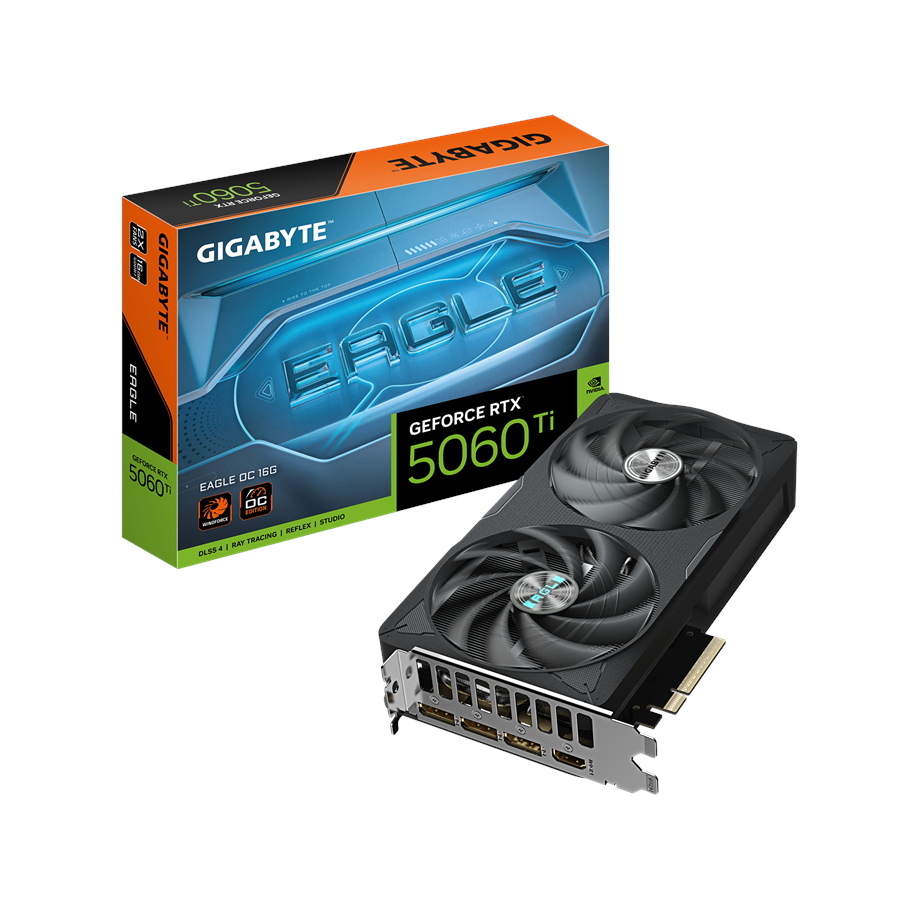

GIGABYTE GeForce RTX 5060 Ti EAGLE OC - 16GB GDDR7 RAM - Grafische kaarten

Grafische kaart, NVIDIA GeForce RTX 5060 Ti Overclocked (Core clock 2241 MHz / Boost clock 2617 MHz), 4608 CUDA cores, ondersteunt NVIDIA DLSS 4, 16GB GDDR7 (Memory clock 28 GHz) - 128-bit, PCI-Express 5.0 x16 (x8 mode), 3 x DisplayPort 2.1a / 1 x HDMI 2.1b aansluitingen, ondersteunt NVIDIA G-Sync, 1 x 8-Pins voedingsaansluiting, aanbevolen voeding: 650 Watt, kaart lengte: 215mm, PCI-poortbreedte: 2 slots, Gigabyte WindForce 2X low noise koeler - met ventilatormodus zonder toerental (bij lage temperatuur), modelnummer: GV-N506TEAGLE OC-16GD

Goedkoopste privé verzending 8,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The GIGABYTE GeForce RTX 5060 Ti EAGLE OC 16G is designed for high-performance gaming and content creation, featuring a powerful NVIDIA GeForce RTX 5060 Ti graphics processor. With a 16 GB capacity of GDDR7 SDRAM, this graphics card ensures smooth gameplay and stunning visuals at resolutions up to 7680 x 4320. Users can take advantage of advanced technologies such as NVIDIA DLSS 4, 4th Gen Ray Tracing Cores, and 5th Gen Tensor Cores for lifelike graphics and optimal performance. The GIGABYTE WINDFORCE cooling design, coupled with a dual fan setup and metal backplate, enhances thermal efficiency while minimizing noise during intensive tasks.

The ease of connecting to multiple displays is supported by three DisplayPorts and one HDMI output, allowing a maximum of four monitors to be used simultaneously. With PCI Express 5.0 compatibility and DirectX 12 support, this graphics card is prepared for the demands of modern gaming and graphical applications. The EAGLE OC Edition features advanced cooling technologies like composite copper heat pipes and a screen cooling system to maintain optimal temperatures. Gamers can benefit from NVIDIA G-Sync readiness and NVIDIA Avatar Cloud Engine (ACE) for an enhanced gaming experience without stuttering or tearing.

Case accessoires

Producent
Productnummer
3362031
Model
GV-N506TEAGLE OC-16GD
EAN
4719331356071
Naar de website van de producent
Productbeschrijving
Gigabyte GeForce RTX 5060 Ti EAGLE OC 16G - OC Edition - grafische kaart - GeForce RTX 5060 Ti - 16 GB
Type apparaat
Grafische kaart
Bustype
PCI Express 5.0
Grafische motor
NVIDIA GeForce RTX 5060 Ti
Geheugen
16 GB GDDR7
Geheugensnelheid
28 Gbps
Core klok
2617 MHz
CUDA Cores
4608
Geheugeninterface
128-bit
Max. resolutie
7680 x 4320
Max. aantal ondersteunde monitoren
4
Interface Details
3 x DisplayPort
HDMI
Ondersteuning voor API
OpenGL 4.6, DirectX 12
Afmetingen (BxDxH)
4 cm x 21.5 cm x 12.2 cm

Algemeen

Type apparaat
Grafische kaart
Bustype
PCI Express 5.0
Grafische motor
NVIDIA GeForce RTX 5060 Ti
Core klok
2617 MHz
CUDA Cores
4608
Max. resolutie
7680 x 4320
Max. aantal ondersteunde monitoren
4
Interface Details
3 x DisplayPort
HDMI
Ondersteuning voor API
OpenGL 4.6, DirectX 12
Functies
Dual Fan Design, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA G-Sync voorbereid, NVIDIA Reflex 2, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, NVIDIA Avatar Cloud Engine (ACE), 5e gen Tensor-kernen, 4e generatie Ray Tracing-kernen, 9e Gen NVIDIA-encoder, Nvidia Broadcast, Nvidia Studio, GIGABYTE WINDFORCE-koelingsdesign, Hawk Fan ontwerp, thermisch geleidingsgel van serverkwaliteit, composiet-koperen warmtepijpen, Gigabyte Alternate Spinning, 3D Active Fan, Graphene Nano Lubricant, schermkoeling, metalen achterplaat, Ultra Durable VGA

Geheugen

Grootte
16 GB
Technologie
GDDR7 SDRAM
Geheugensnelheid
28 Gbps
Busbreedte
128-bit

Systeemvereisten

Vereiste stroomtoevoer
650 W
Extra vereisten
8-pins PCI Express stroomconnector

Diversen

Software meegeleverd
Stuurprogramma's geschikt voor GeForce-spel, nVIDIA Studio-stuurprogramma's, Gigabyte Control Center
Conformiteitsnormen
DisplayPort 2.1b
Breedte
4 cm
Diepte
21.5 cm
Hoogte
12.2 cm
