Productnummer: 3418869

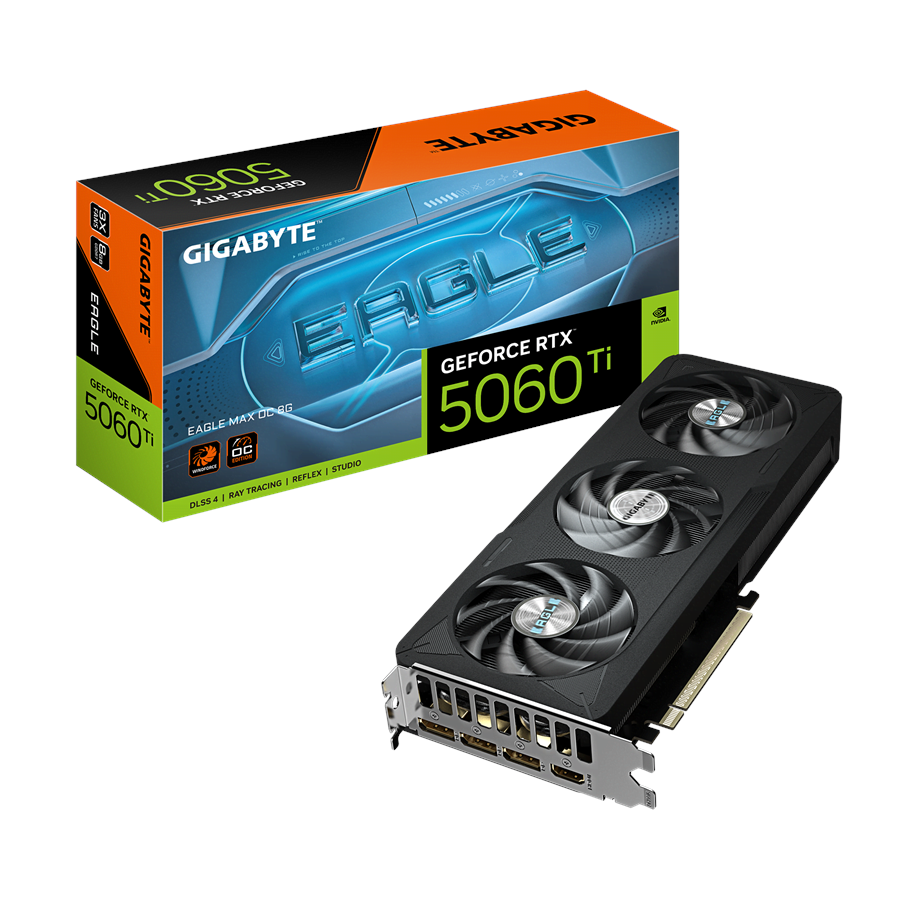

GIGABYTE GeForce RTX 5060 Ti EAGLE MAX OC - 8GB GDDR7 RAM - Grafische kaarten

Grafische kaart, NVIDIA GeForce RTX 5060 Ti Overclocked (Core clock 2241 MHz / Boost clock 2617 MHz), 4608 CUDA cores, ondersteunt NVIDIA DLSS 4, 8GB GDDR7 (Memory clock 28 GHz) - 128-bit, PCI-Express 5.0 x16 (x8 mode), 3 x DisplayPort 2.1a / 1 x HDMI 2.1b aansluitingen, ondersteunt NVIDIA G-Sync, 1 x 8-Pins voedingsaansluiting, aanbevolen voeding: 650 Watt, kaart lengte: 281mm, PCI-poortbreedte: 2 slots, Gigabyte WindForce 3X low noise koeler - met ventilatormodus zonder toerental (bij lage temperatuur), modelnummer: GV-N506TEAGLEMAX OC-8GD

Deze bundel bevat

NVIDIA Game Bundle - 007 First Light

Waarde 40,00 € Geldig van 13-05-2026 15:00 tot en met 10-06-2026 23:59 - Zolang de voorraad strekt
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The GIGABYTE EAGLE MAX OC Edition graphics card combines performance and reliability, making it a choice for gamers and content creators. With 8 GB of GDDR7 SDRAM and a memory speed of 28 Gbps, this card provides the power needed for demanding applications. Connectivity options include HDMI and DisplayPort interfaces, allowing support for up to 4 monitors with a maximum external resolution of 7680 x 4320. The advanced cooling design features a triple fan system and unique technologies that enhance thermal efficiency, ensuring optimal performance during extended use.Equipped with NVIDIA's Blackwell GPU architecture and enhanced with features like NVIDIA DLSS 4, this graphics card delivers smooth gameplay with impressive visual fidelity. The card is PCI Express 5.0 compatible, ready to support advancements in gaming and graphical performance, including DirectX 12 and OpenGL 4.6 support. The GIGABYTE EAGLE MAX is built on durability with an anti-bending plate and server-grade thermal conductive gel, ensuring longevity and consistent performance.

Case accessoires

Producent
Productnummer
3418869
Model
GV-N506TEAGLEMAX OC-8GD
EAN
4719331356637
Naar de website van de producent
Productbeschrijving
Gigabyte EAGLE MAX - OC Edition - grafische kaart - GeForce RTX 5060 Ti - 8 GB
Type apparaat
Grafische kaart
Bustype
PCI Express 5.0
Grafische motor
NVIDIA GeForce RTX 5060 Ti
Geheugen
8 GB GDDR7
Geheugensnelheid
28 Gbps
Core klok
2617 MHz
CUDA Cores
4608
Geheugeninterface
128-bit
Max. resolutie
7680 x 4320
Max. aantal ondersteunde monitoren
4
Interface Details
3 x DisplayPort
HDMI
Ondersteuning voor API
OpenGL 4.6, DirectX 12
Afmetingen (BxDxH)
4 cm x 28.1 cm x 11.5 cm

Algemeen

Type apparaat
Grafische kaart
Bustype
PCI Express 5.0
Grafische motor
NVIDIA GeForce RTX 5060 Ti
Core klok
2617 MHz
CUDA Cores
4608
Max. resolutie
7680 x 4320
Max. aantal ondersteunde monitoren
4
Interface Details
3 x DisplayPort
HDMI
Ondersteuning voor API
OpenGL 4.6, DirectX 12
Functies
Ontwerp met drie ventilatoren, GIGABYTE WINDFORCE-koelingsdesign, thermisch geleidingsgel van serverkwaliteit, Hawk Fan ontwerp, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex 2, Nvidia Studio, Nvidia Broadcast, 9e Gen NVIDIA-encoder, 4e generatie Ray Tracing-kernen, 5e gen Tensor-kernen, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, NVIDIA G-Sync voorbereid, NVIDIA Avatar Cloud Engine (ACE), Gigabyte Alternate Spinning, 3D Active Fan, schermkoeling, Graphene Nano Lubricant, composiet-koperen warmtepijpen, niet-buigbare plaat, Ultra Durable VGA

Geheugen

Grootte
8 GB
Technologie
GDDR7 SDRAM
Geheugensnelheid
28 Gbps
Busbreedte
128-bit

Systeemvereisten

Vereiste stroomtoevoer
650 W
Extra vereisten
8-pins PCI Express stroomconnector

Diversen

Software meegeleverd
nVIDIA Studio-stuurprogramma's, stuurprogramma's geschikt voor GeForce-spel, Gigabyte Control Center
Conformiteitsnormen
DisplayPort 2.1b
Breedte
4 cm
Diepte
28.1 cm
Hoogte
11.5 cm
