Productnummer: 3324295

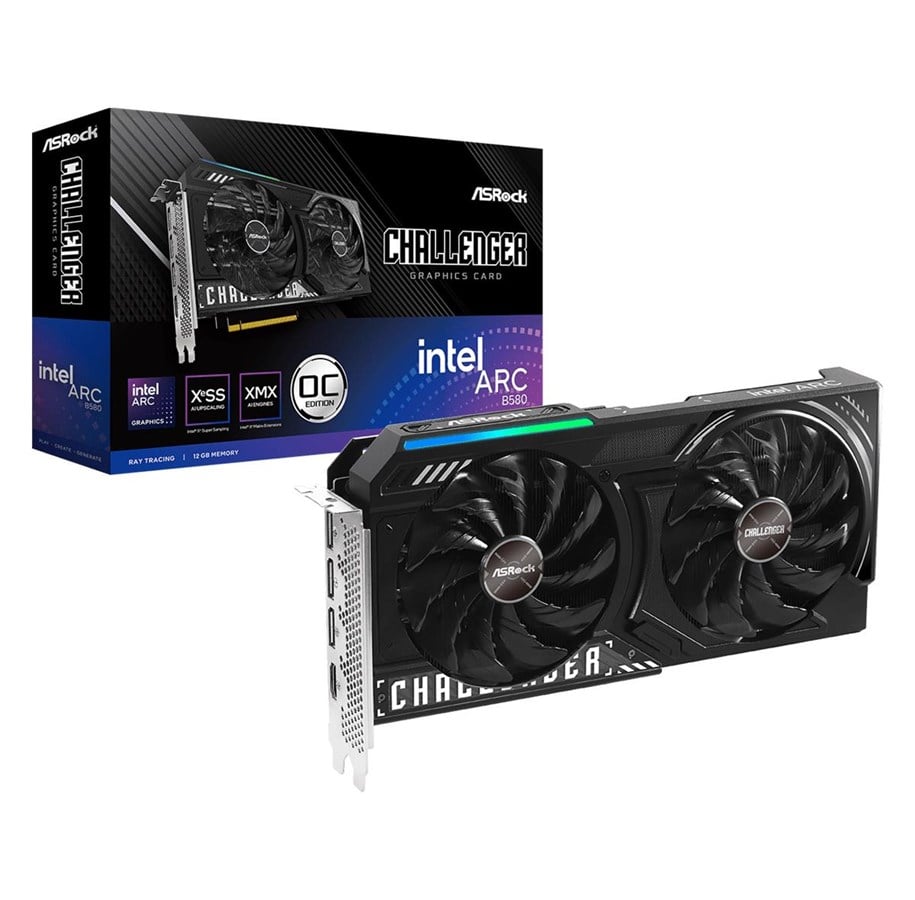

ASRock Arc B580 Challenger OC - 12GB GDDR6 RAM - Grafische kaarten

Grafische kaart, Intel Arc B580 Overclocked (Core clock 2670 MHz / Boost clock 2740 MHz), 20 Xe cores, ondersteunt XeSS AI, 12GB GDDR6 (Memory clock 19 GHz) - 192-bit, PCI-Express 4.0 x16 (x8 mode), 3 x DisplayPort 2.1 / 1 x HDMI 2.1 aansluitingen, 1 x 8-Pins voedingsaansluiting, aanbevolen voeding: 650 Watt, kaart lengte: 249mm, PCI-poortbreedte: 2 slots, Challenger 2X low noise koeler - met ventilatormodus zonder toerental (bij lage temperatuur), met Asrock Polychrome Sync, modelnummer: B580 CL 12GO

328,90 € 271,82 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

The ASRock Challenger Intel Arc B580 12GB OC graphics card is designed to elevate your gaming and multitasking experience. With 12 GB of GDDR6 SDRAM and a 192-bit memory bus, this graphics card ensures smooth performance and high-speed graphics rendering, making it ideal for demanding applications and current games. Supporting a maximum external resolution of 7680 x 4320 and the capability to run up to 4 monitors simultaneously, it provides a rich visual experience that can accommodate high-resolution displays for immersive gaming or productivity setups. Equipped with advanced features such as Dual Fan Design for enhanced cooling, LED indicators for easy monitoring, and Smart Power Stages, it ensures efficient power delivery while maintaining optimal temperature levels during intense sessions. With support for DirectX 12 Ultimate and OpenGL 4.6, users can enjoy enhanced graphics and remarkable realism. The ASRock Challenger Intel Arc B580 is a solid choice for boosting your gaming rig.

Case accessoires

Producent
Productnummer
3324295
Model
90-GA5LZZ-00UANF
EAN
4711581490031
Naar de website van de producent
Productbeschrijving
ASRock Challenger Intel Arc B580 12GB OC - OC Edition - grafische kaart - Arc B580 - 12 GB
Type apparaat
Grafische kaart
Bustype
PCI Express 4.0 x8
Grafische motor
Intel Arc B580
Geheugen
12 GB GDDR6
Geheugensnelheid
19 Gbps
Core klok
2740 MHz
Geheugeninterface
192-bit
Max. resolutie
7680 x 4320
Max. aantal ondersteunde monitoren
4
Interface Details
3 x DisplayPort
HDMI
Ondersteuning voor API
DirectX 12 Ultimate, OpenGL 4.6
Afmetingen (BxDxH)
4.1 cm x 24.9 cm x 13.2 cm

Algemeen

Type apparaat
Grafische kaart
Bustype
PCI Express 4.0 x8
Grafische motor
Intel Arc B580
Core klok
2740 MHz
Max. resolutie
7680 x 4320
Max. aantal ondersteunde monitoren
4
Interface Details
3 x DisplayPort
HDMI
Ondersteuning voor API
DirectX 12 Ultimate, OpenGL 4.6
Functies
160 Intel XMX Engines, 20 rekeneenheden, 2-slot Fan Cooler, Dual Fan Design, 0dB Technology, LED-indicator, Super Alloy Power-technologie, Striped Axial Fan, Intel Xe Super Sampling 2 (XeSS 2), Intel Xe Matrix eXtensions (XMX), Intel Xe2 HPG Architecture, LED aan/uit-schakelaar, nano thermische pasta, goed passende warmtepijp, japanese SP-Cap, slimme vermogensfasen (SPS), Premium Power Choke, 2oz koperen PCB, PCB-glazen materiaal met hoge dichtheid, metalen achterplaat, HDCP

Geheugen

Grootte
12 GB
Technologie
GDDR6 SDRAM
Geheugensnelheid
19 Gbps
Busbreedte
192-bit

Systeemvereisten

Vereiste stroomtoevoer
650 W
Extra vereisten
8-pins PCI Express stroomconnector

Diversen

Conformiteitsnormen
DisplayPort 2.1, Ultra High Bit Rate 10 (UHBR10), Ultra High Bit Rate 13.5 (UHBR13.5)
Breedte
4.1 cm
Diepte
24.9 cm
Hoogte
13.2 cm
Gewicht
720 g
