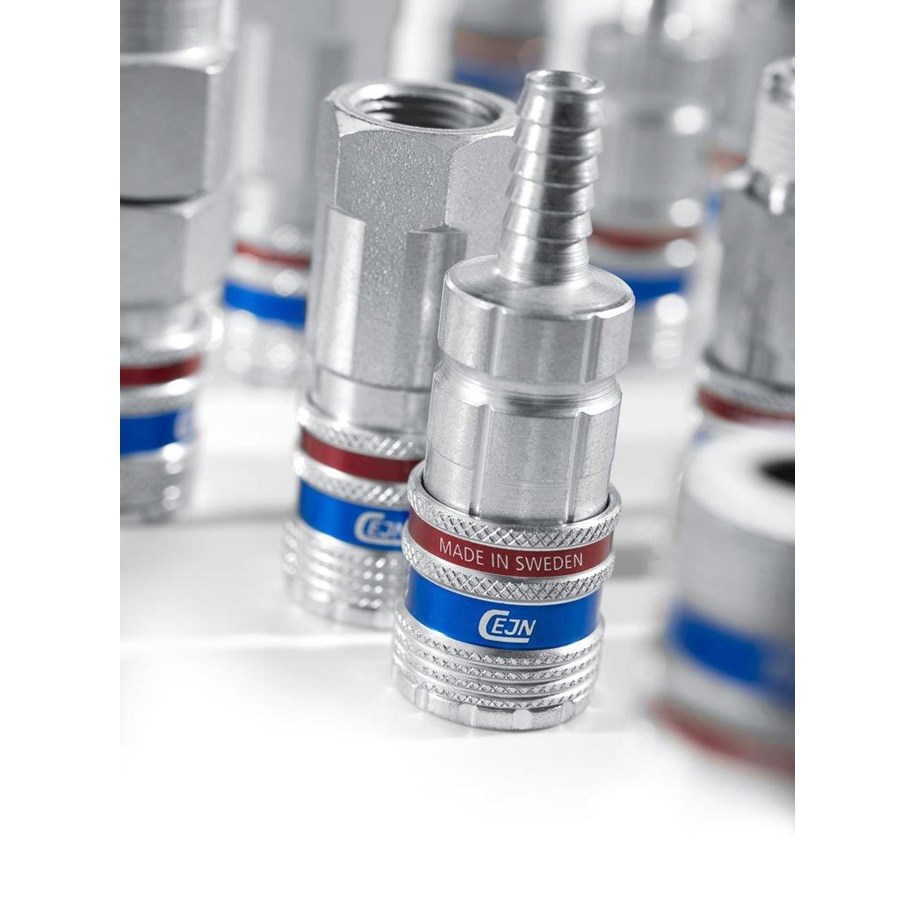

Cejn Coupling 3/8 hose nbr
eSafe Series 320 coupling is an easy-to-handle high performing coupling with a long service life. eSafe is a one hand operated safety coupling that vents before disconnection eliminating the risk of hose whip. Male threads on the couplings and nipples feature pre-applied thread sealant. The couplings have a smaller outside dimension than comparable designs. Full automatic operation ensures easy handling. eSafe complies with ISO Standard 4414 and EN 983.Serie 320 is also available in standard, Soft-Line and Multi-Link versions
26,90 €
22,23 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
Safety coupling CEJN eSafe 3/8" SL ST Product description: The eSafe Series 320 coupling is an easy-to-use coupling with high performance and long life. eSafe is a one-handed safety coupling that vents before disconnection, eliminating the risk of recoil. The external threads on couplings and nipples have applied seals. The couplings have smaller external dimensions than comparable designs. Fully automatic operation ensures easy operation. eSafe complies with ISO standard 4414 and EN 983.Series 320 is also available in standard, Soft-Line, and Multi-Link versions.Download drawings/3dmodels print Technical specifications: Max working pressure (bar): 16 bar (232 PSI)Temperature range: -20°C — +100°C (-4°F — +212°F)Engagement force: 86 NMaterial of couplings and nipples: Zinc-plated steel/brass
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
