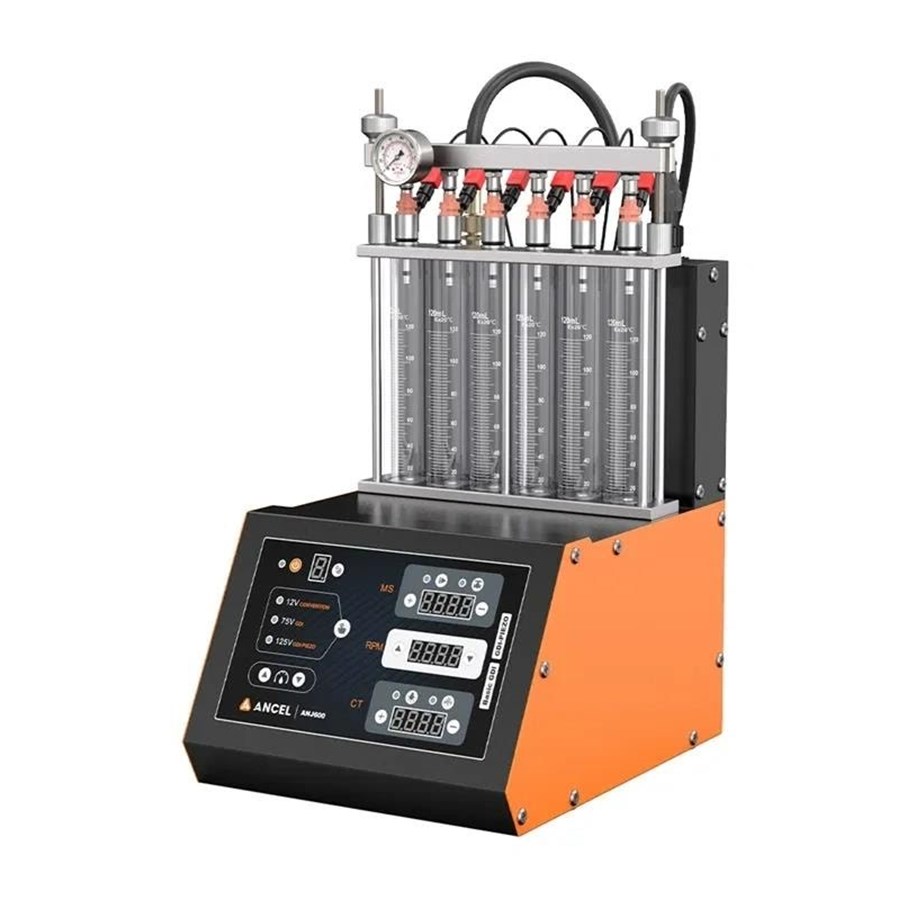

Ancel ANJ600 Car Fuel Injector Cleaner
The ANCEL ANJ600 is a professional fuel injector cleaning and testing machine with an ultrasonic cleaner, digital display and microprocessor-controlled fuel pressure regulation. It supports both electromagnetic injectors, including EFI and GDI types, and piezoelectric injectors. The machine provides spray pattern, leak and injection volume tests, as well as automatic simulations covering idle, medium and high RPM, variable acceleration, variable braking and pulse width modulation. Fuel pressure can be adjusted from 0 to 8 bar, while engine simulation supports up to 9,900 rpm and pulse widths up to 30 ms. Backflushing, low-resistance injector testing and automatic fuel drainage further expand its capabilities.
Diagnostic functions include spray pattern and uniformity testing, leak testing and injection volume measurement over a 15-second operating cycle. Automatic testing can simulate idle, medium- and high-RPM operation, variable acceleration, variable braking and pulse width modulation. Fuel pressure is adjustable from 0 to 8 bar, with engine simulation up to 9,900 rpm and pulse widths of up to 30 ms.
The standalone ultrasonic cleaner uses cavitation to remove carbon deposits and contaminants from injector surfaces and internal areas. The ANJ600 also supports backflushing and long-term testing of low-resistance injectors, including 1Ω models. Automatic fuel drainage allows the system to be emptied during selected tests, while pressure is automatically reduced if the power supply is suddenly interrupted.
