Productnummer: 3158672

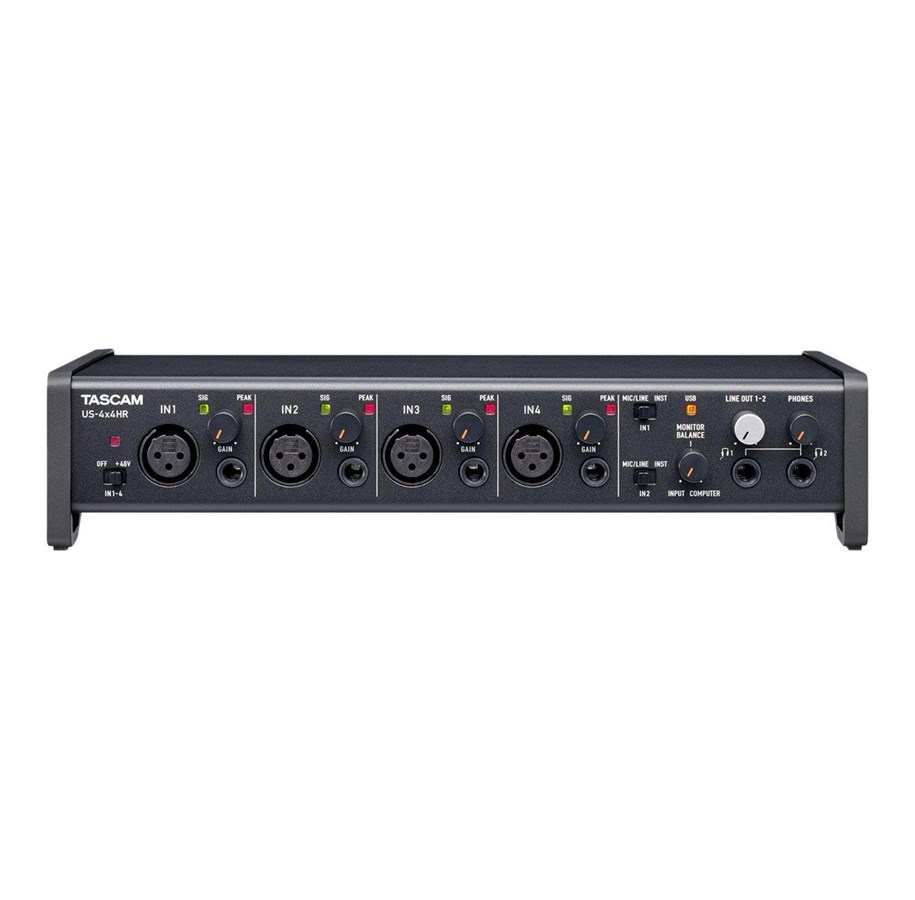

Tascam US-4x4HR - audio interface

Audio-interface, 24-bits, 192 kHz, 110 dB SNR (Signal-To-Noise Ratio, signaal-ruis verhouding), stereo, USB 2.0

200,01 € 165,30 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd

The four-channel US-4x4HR is a member of the Tascam US-HR series of high-resolution USB audio interfaces and an enhanced version of the popular Tascam US-4x4. It provides four mic/line inputs, two of which can alternatively be used for direct input of a guitar or bass, four balanced line outputs, two headphones connectors, and MIDI I/O to your Windows or Mac computer or your iPhone or iPad. This interface is ideal for multitrack recording of two instruments and two vocalists, for instance, or multi-media production with high demands on simple operation and studio-quality sound. The included loopback function and support for Open Broadcaster Software (OBS Studio), however, makes it also an excellent choice for two-channel podcast creation and live streaming.The versatile US-4x4HR incorporates a wealth of features, including high audio resolution up to 24-bit/192 kHz, ultra-low latency with a Windows buffer size starting at four samples, Ultra-HDDA mic preamplifiers with 48-volt phantom power for superior sound quality with ultra-low noise, a robust USB Type C connector, and a rich assortment of included software to start producing stunning audio right away.

Producent
Productnummer
3158672
Model
US-4x4HR
EAN
4907034132768
Naar de website van de producent
Productbeschrijving
Tascam US-4x4HR - audio-interface - USB 2.0
Type apparaat
Audio-interface
Type bijvoegsel
Extern
Interfacetype
USB 2.0
Afmetingen (BxDxH)
29.6 cm x 16 cm x 6.5 cm
Gewicht
1.6 kg
Uitvoermodus geluid
Stereo
DAC-resolutie
24-bits
Sample Rate
44.1 kHz (min) - 192 kHz (max.)
Signaal/ruis-verhouding
110 dB
Systeemvereisten
Apple iOS 11 - 14, Apple iPadOS 14, Apple macOS Big Sur 11.0, Apple macOS Catalina 10.15, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Microsoft Windows 7 / 8.1 / 10

Algemeen

Type apparaat
Audio-interface
Vormfactor
Extern
Interfacetype
USB 2.0
Breedte
29.6 cm
Diepte
16 cm
Hoogte
6.5 cm
Gewicht
1.6 kg

Audio Output

Uitvoermodus geluid
Stereo
DAC-resolutie
24-bits
Sample Rate
44.1 kHz (min) - 192 kHz (max.)
Signaal/ruis-verhouding
110 dB
Frequentierespons
20 - 40000 Hz
Kenmerken
Gevoed via USB-aansluiting

Uitbreiding / Aansluiting

Interfaces
1 x USB 2.0 - 4-pins USB type B
4 x gebalanceerde uitgang - telefoon stereo 6,35 mm
2 x koptelefoon - telefoon stereo 6,3 mm
1 x MIDI-ingang - 5-PIN DIN
1 x MIDI-uitgang - 5-PIN DIN
4 x microfoon - 3 pins-XLR
4 x audio-lijningang - telefoon stereo 6,35 mm

Diversen

Kabels meegeleverd
1 x USB-kabel

Software / Systeemvereisten

Software
Cubase LE, SampleTank 4 SE, Antares Auto-Tune Unlimited (3 months)
Benodigd besturingssysteem
Apple iOS 11 - 14, Apple iPadOS 14, Apple macOS Big Sur 11.0, Apple macOS Catalina 10.15, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Microsoft Windows 7 / 8.1 / 10
Detailgegevens systeemvereisten
2 GHz - RAM 2 GB

Omgevingsparameters

Min. gebruikstemperatuur
5 °C
Max. gebruikstemperatuur
35 °C
