Productnummer: 3414327

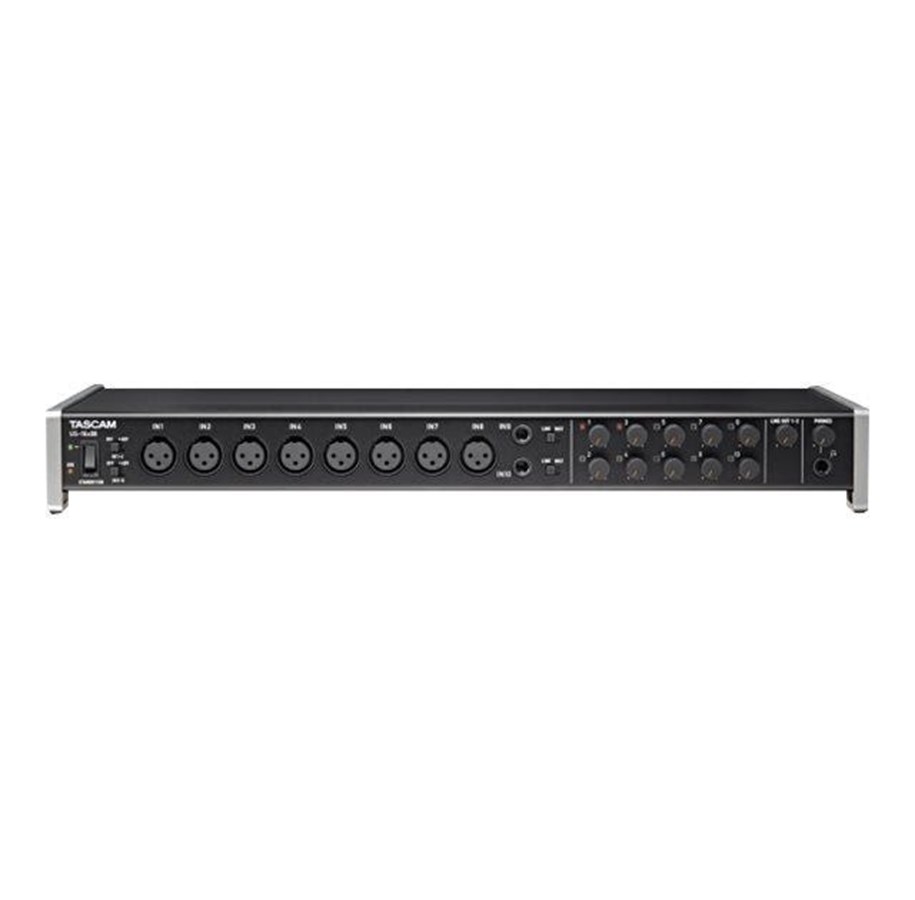

Tascam US-16x08 - audio interface

Audio-interface, 24-bits, 96 kHz, stereo, USB 2.0

343,69 € 284,04 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd

The TASCAM US-16x08 captures 16 mic and line inputs to your computer with clear sound quality and advanced features to manage big sessions. Eight Ultra-HDDA microphone preamps deliver the cleanest and quietest operation in their class while delivering up to 56dB of gain. An additional eight line inputs are provided, two of them switchable to instrument level for direct guitar or bass recording. Eight balanced line outputs are also available, two with a level control on the front panel for monitoring.

Built into the US-16x08 is a DSP Mixer for low-latency digital mixing. Each channel has four-band EQ and compression for polished-sounding monitor mixes. In addition to interface mode, the US-16x08 can be used stand alone as a standalone mic preamp. Mac and Windows drivers are provided, as well as USB Class Compliant 2.0 drivers for tablets like Apple's iPad. MIDI input and output are also available on the rear panel.

Whether using the ergonomically-designed angled desktop stand or mounting with the included rack ears, the US-16x08 includes analog I/O for almost any music recording application.

Producent
Productnummer
3414327
Model
US-16x08
EAN
4907034124640
Naar de website van de producent
Productbeschrijving
Tascam US-16x08 - audio-interface - USB 2.0
Type apparaat
Audio-interface
Type bijvoegsel
Extern
Interfacetype
USB 2.0
Afmetingen (BxDxH)
44.5 cm x 5.9 cm x 21.9 cm
Gewicht
2.8 kg
Uitvoermodus geluid
Stereo
DAC-resolutie
24-bits
Sample Rate
44.1 kHz (min) - 96 kHz (max.)
Systeemvereisten
Microsoft Windows 7 (32/64 bits) SP1, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Apple OS X 10.9 Mavericks, Apple iOS 7 of later

Algemeen

Type apparaat
Audio-interface
Vormfactor
Extern
Interfacetype
USB 2.0
Breedte
44.5 cm
Diepte
5.9 cm
Hoogte
21.9 cm
Gewicht
2.8 kg

Audio Output

Uitvoermodus geluid
Stereo
DAC-resolutie
24-bits
Sample Rate
44.1 kHz (min) - 96 kHz (max.)
Aantal ingangskanalen
16
Aantal uitgangskanalen
8
Kenmerken
Ultra High Definition Discrete Architecture (Ultra-HDDA)

Uitbreiding / Aansluiting

Interfaces
1 x USB 2.0 - 4-pins USB type B
8 x audio-lijningang - 3 pins-XLR
8 x microfoon - telefoon stereo 6,3 mm
8 x koptelefoon - telefoon stereo 6,3 mm
1 x MIDI-uitgang - 5-PIN DIN
1 x MIDI-ingang - 5-PIN DIN

Diversen

Meegeleverde accessoires
Bevestigingskit
Kabels meegeleverd
1 x USB-kabel
Conformiteitsnormen
RoHS

Software / Systeemvereisten

Benodigd besturingssysteem
Microsoft Windows 7 (32/64 bits) SP1, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Apple OS X 10.9 Mavericks, Apple iOS 7 of later
Detailgegevens systeemvereisten
Windows 7 SP1 or later - 2 GHz - RAM 2 GB
MacOS X 10.8 of hoger - 2 GHz - RAM 2 GB

Omgevingsparameters

Min. gebruikstemperatuur
5 °C
Max. gebruikstemperatuur
35 °C
