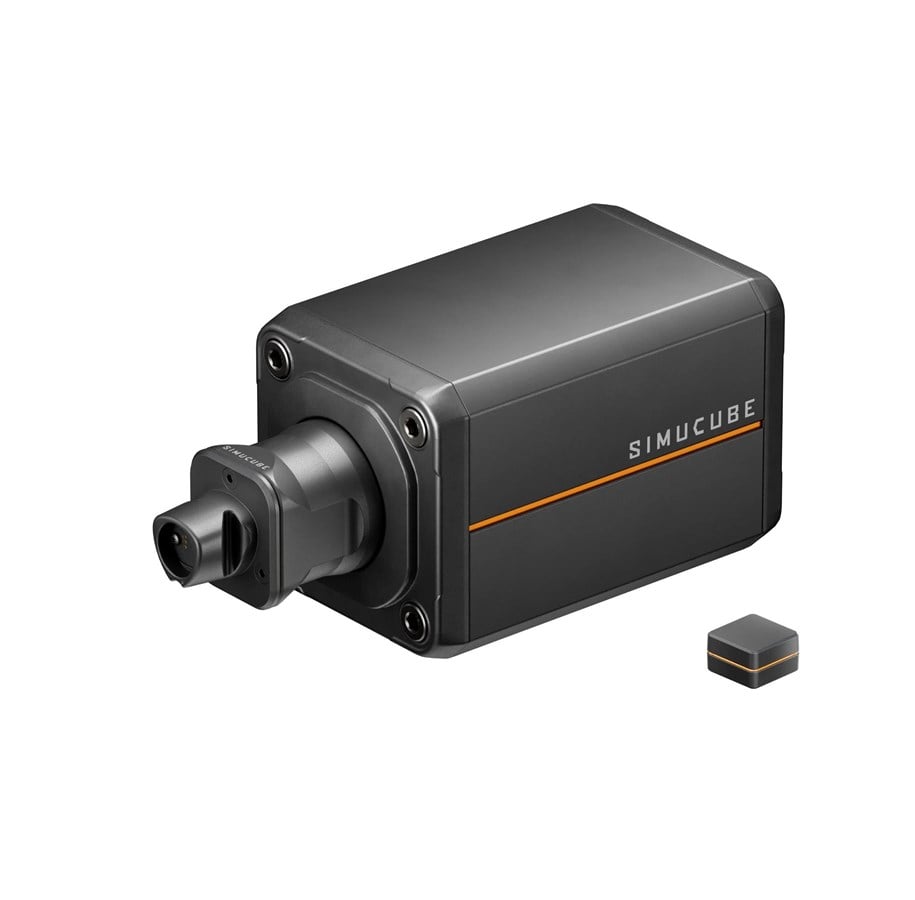

Simucube 3 Pro Wheel Base

Simucube 3 Pro Wheel Base

Professional-grade precision and 25 Nm of smooth, ultra-detailed direct drive force feedback

Flagship Performance and Realism

• Precise, smooth, and powerful direct drive force feedback (25 Nm)
• Industrial-grade SPM servo motor engineered exclusively for Simucube
• Enhanced telemetry-based effects such as ABS, RPM, and road texture
• Re-engineered control algorithm for extreme accuracy and silent operation
• Front and bottom mounting for flexible installation

Built for Professional Racers

• Flagship direct drive base delivering true race car feel and control
• High-efficiency servo motor provides exceptional torque and smoothness
• Engineered for peak consistency and long-term durability
• Uncompromising realism — push to the limit, it never holds you back

Product Parameters

• Max Torque: 25 Nm
• Motor: High-response Direct Drive optimized SPM motor
• Angle Sensor: 23-bit absolute (8,000,000 steps)
• Mounting: Front and Bottom
• Warranty: 3 years

Technical Details

Dimensions

• Wheel Base: 135 × 135 × 303 mm
• Package Dimensions: 190 × 300 × 390 mm
• Mounting Hole Pattern DIA: 135 mm and 78.4 mm
• Flange Centering Feature DIA: 110 mm
• Weight: 11 kg

Specifications

• Motor Type: High-response Direct Drive optimized SPM motor
• Max Torque: 25 Nm
• Angle Sensor: 23-bit absolute (8,000,000 steps)
• Power Supply: 360 W (450 W peak)
• Warranty: 3 years

What’s Included?

• 1 × Simucube 3 Pro Wheel Base
• 1 × Power Adapter
• 1 × RJ45 Cable
• 1 × AC Power Cord
• 1 × Quick Start Guide
• 1 × Control Box
• Fasteners Kit:
• 4 × M8 Washer
• 4 × M6 Washer
• 2 × M5 Washer
• 4 × M8 × 35 Allen Head Bolt
• 4 × M8 × 30 Allen Head Bolt
• 2 × M5 × 30 Allen Head Bolt
• 4 × M6 × 16 Allen Head Bolt
• 2 × M5 T-slot Nut (8 mm slot)
• Does NOT include: Link Quick Release for Simucube 3, Simucube Link Hub

Compatibility

• Link Quick Release for Simucube 3
• One Simucube Link Hub is required to operate. If you do not own a Simucube Link Hub, please choose the option “Including Simucube Link”.
• For multiple Link Hub devices such as Simucube 3 and ActivePedals, please use the Teltonika Ethernet Switch.
