Productnummer: 3373278

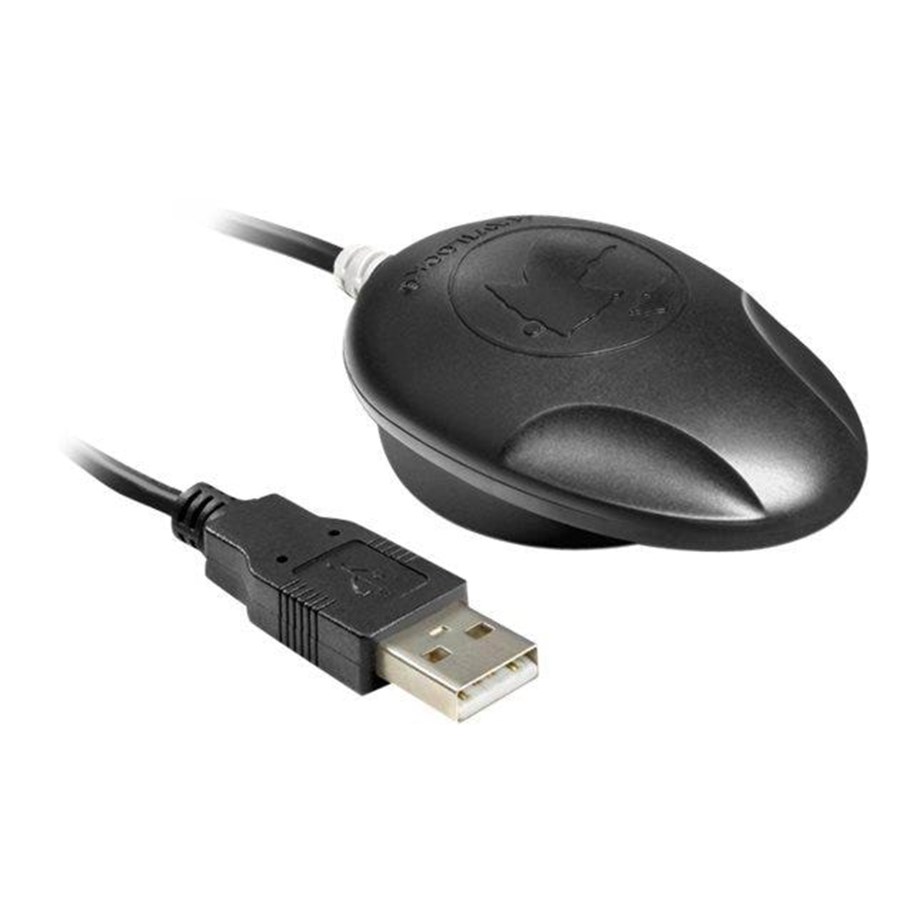

NAVILOCK NL-8002U Multi GNSS Receiver
GPS/GLONASS/GALILEO-ontvangermodule
97,53 €
80,60 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 8 - 9 werkdagen levertijd
The USB 2.0 Multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a notebook and suitable routing software for navigation.
Producent
Productnummer
3373278
Model
62523
EAN
4043619625239
Productbeschrijving
Navilock NL-8002U Multi GNSS Receiver - GPS/GLONASS/GALILEO-ontvangermodule
Producttype
GPS/GLONASS/GALILEO-ontvangermodule
Ontvanger
U-blox 8 - 72-kanaals
Interface
NMEA 0183
SBAS
Wide Area Augmentation System (WAAS), EGNOS (European Geostationary Navigation Overlay Service), MSAS (MTSAT Satellite-based Augmentation System (Japan))
Antenne
Ingebouwd
Functies
LED-indicator
Afmetingen (BxDxH)
4.5 cm x 6.5 cm x 2.2 cm
Algemeen
Producttype
GPS/GLONASS/GALILEO-ontvangermodule
Ontvanger
U-blox 8 - 72-kanaals
Interface
NMEA 0183
SBAS
Wide Area Augmentation System (WAAS), EGNOS (European Geostationary Navigation Overlay Service), MSAS (MTSAT Satellite-based Augmentation System (Japan))
Nauwkeurigheid
Positie - 2 m
Traceergevoeligheid
-167 dBm
Antenne
Ingebouwd
Functies
LED-indicator
Acquisitietijden
Heet
1 sec.
Koud
26 seconden
Systeemeisen voor GPS
Vereist besturingssysteem
Microsoft Windows 7, Microsoft Windows Vista, Windows 8, Windows 8.1, Linux Kernel 2.6, Windows 10
Verbindingen
Interfaces
USB 2.0 - 4-PIN USB type A
Diversen
Meegeleverde accessoires
USB-kabel
Afmetingen & gewicht
Breedte
4.5 cm
Diepte
6.5 cm
Hoogte
2.2 cm
Omgevingsparameters
Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
65 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
