Productnummer: 3368168
NAVILOCK GNSS Receiver
DeLOCK 62531 gnss-ontvanger
114,80 €
94,88 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd

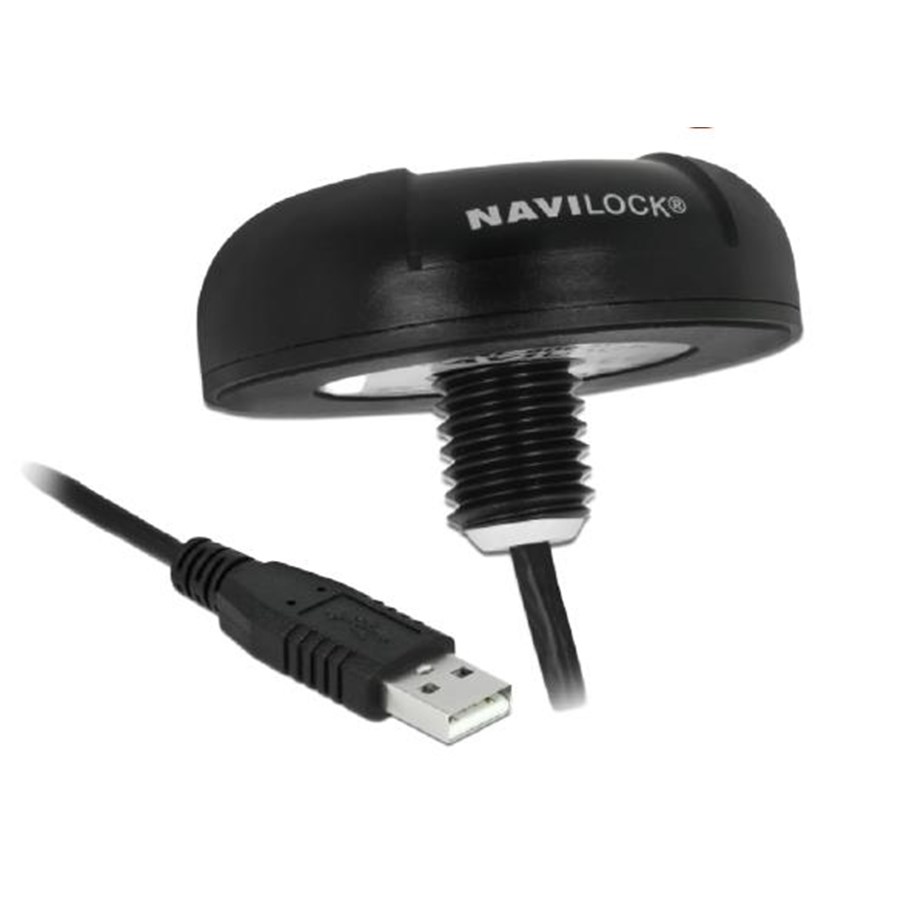

The USB 2.0 multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation. The NL-8004U GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, due to its design.
Connector: USB 2.0 Type-A male
Chipset: u-blox 8 UBX-M8030-KT
Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0,5625) MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO E1, 1575.4200 MHz QZSS L1, 1575.4200 MHz
Accepts the signals of up to 72 satellites at the same time
Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
Auto Baud Rate up to 115200 bps
Update rate: single GNSS: 18 Hz (e.g. GPS solo) multi GNSS: 10 Hz (e.g. GPS+GLONASS)
Sensibility max. -167 dBm
IPX7 protection class
Connector: USB 2.0 Type-A male
Chipset: u-blox 8 UBX-M8030-KT
Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0,5625) MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO E1, 1575.4200 MHz QZSS L1, 1575.4200 MHz
Accepts the signals of up to 72 satellites at the same time
Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
Auto Baud Rate up to 115200 bps
Update rate: single GNSS: 18 Hz (e.g. GPS solo) multi GNSS: 10 Hz (e.g. GPS+GLONASS)
Sensibility max. -167 dBm
IPX7 protection class
Producent
Productnummer
3368168
Model
62531
EAN
4043619625314
Naar de website van de producent
Productbeschrijving
Navilock NL-8004U USB 2.0 Multi GNSS Receiver - GPS/GLONASS/GALILEO-ontvangermodule
Producttype
GPS/GLONASS/GALILEO-ontvangermodule
Ontvanger
U-blox 8 - 72-kanaals
Interface
NMEA 0183
SBAS
Wide Area Augmentation System (WAAS), EGNOS (European Geostationary Navigation Overlay Service), MSAS (MTSAT Satellite-based Augmentation System (Japan))
Antenne
Ingebouwd
Functies
LED-indicator
Afmetingen (BxDxH)
6.2 cm x 6.2 cm x 2.1 cm
Algemeen
Producttype
GPS/GLONASS/GALILEO-ontvangermodule
Ontvanger
U-blox 8 - 72-kanaals
Interface
NMEA 0183
SBAS
Wide Area Augmentation System (WAAS), EGNOS (European Geostationary Navigation Overlay Service), MSAS (MTSAT Satellite-based Augmentation System (Japan))
Nauwkeurigheid
Positie - 2 m
Traceergevoeligheid
-167 dBm
Antenne
Ingebouwd
Functies
LED-indicator
Acquisitietijden
Heet
1 sec.
Koud
26 seconden
Systeemeisen voor GPS
Vereist besturingssysteem
Microsoft Windows 7, Microsoft Windows Vista, Linux Kernel 2.6.x, Windows 8
Verbindingen
Interfaces
USB 2.0 - 4-PIN USB type A
Diversen
Meegeleverde accessoires
USB-kabel
Afmetingen & gewicht
Breedte
6.2 cm
Diepte
6.2 cm
Hoogte
2.1 cm
Omgevingsparameters
Min. gebruikstemperatuur
-20 °C
Max. gebruikstemperatuur
65 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
