Spectrum 3D Filament / Smart ABS / Deep Black / ⌀ 1.75 mm / 1 kg
ABS - zwart - Filament voor 3D-printers
ABS (Acrylonitril-Butadieen-Styreen) is een sterk, hittebestendig kunststofmateriaal dat wordt gebruikt in 3D-printen om duurzame en functionele objecten te maken. Het vereist een verwarmd printbed en goede ventilatie vanwege uitdagingen zoals kromtrekken en dampen tijdens het printen.
- Gewicht: 1 kg.
- Lengte: 395,95 m.
- Diameter: 1,75 ± 0,05 mm.
Smelttemperatuur: 230 - 260 °C.
Printbedtemperatuur: 100 °C.
Printsnelheid: 40-200 mm.
Dichtheid (bij 21,5 °C): 1,05 g/cm³.
Slagvastheid: 32,4 KJ/m².
Treksterkte: 45 %.
Temperatuurbestendigheid: 85 °C. voor vervorming
Vloeigrens bij 50 mm/min: 45 MPa (3D-printen)
Smeltstroomindex: 21.
- Spoel: 200mm Buitenste diameter & 52mm Binnenste diameter & 67mm Hoogte, In plastic
Filament Spectrum smart ABS
The specific qualities of Spectrum Smart ABS version demonstrate improved processing parameters which considerably reduce the difficulties which accompany the additive manufacturing using the standard ABS.
Durable and impact resistant
The specific qualities of Spectrum Smart ABS include a high impact resistance and relatively high rigidity. “Smart” version demonstrates improved processing parameters which considerably reduce the difficulties which accompany the additive manufacturing using the standard ABS. It is essentially the lower shrinkage and reduced emission of irritant volatiles during processing. An unquestionable advantage is that the material retains its properties at temperatures down to -40 °C.
Compared to standard ABS, smart ABS is characterised by:
- Reduced shrinkage ratio,
- Shiny surface of the printout,
- Lower printing temperature,
- Increased flow rate.
Applications:
- Manufacturing of all kinds of enclosures, guards, protectors and other similar items subject to impacts
- Possibility of mechanical treatments allows to produce items to facilitate and help conduct installations, i.e. handles, rules, gauges
- End-use parts
- Industrial design
- Tooling
- Custom components
The possibility to conduct chemical treatments (acetone vapours) on Smart ABS provides for extremely smooth surfaces of printed items. Hence, items treated as above are used in the industrial design and broadly defined decoration-related industry.
Packaging

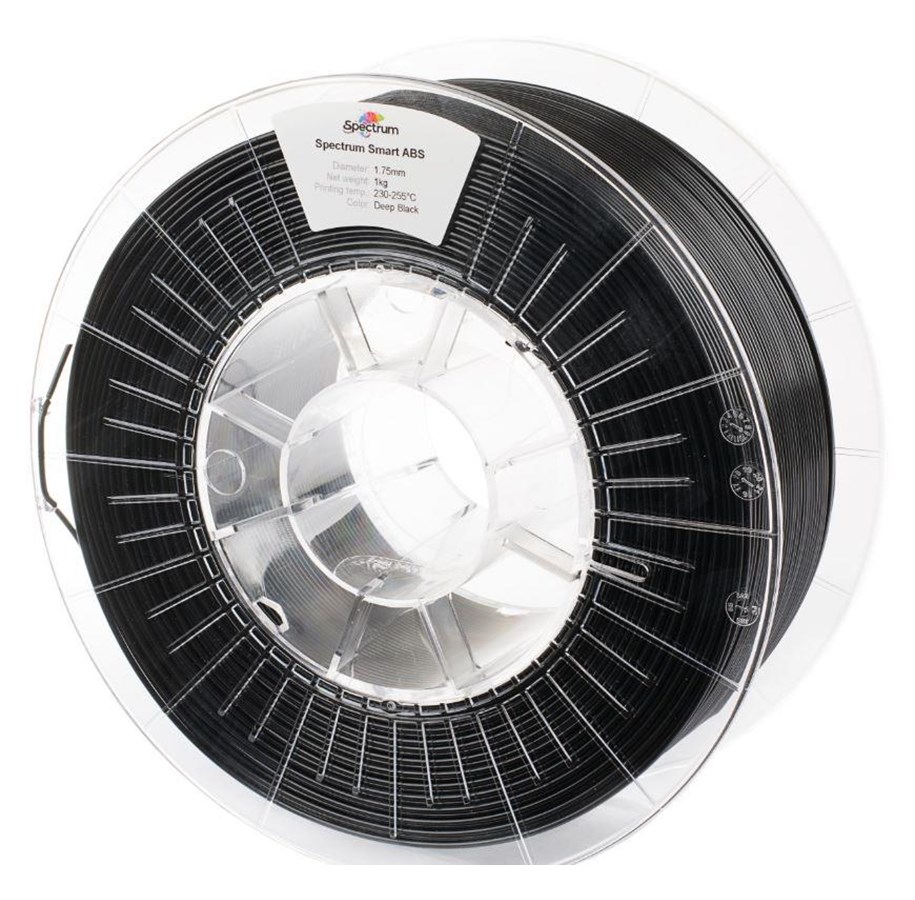

Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, Spectrum Filaments packaging.
