Productnummer: 3319909

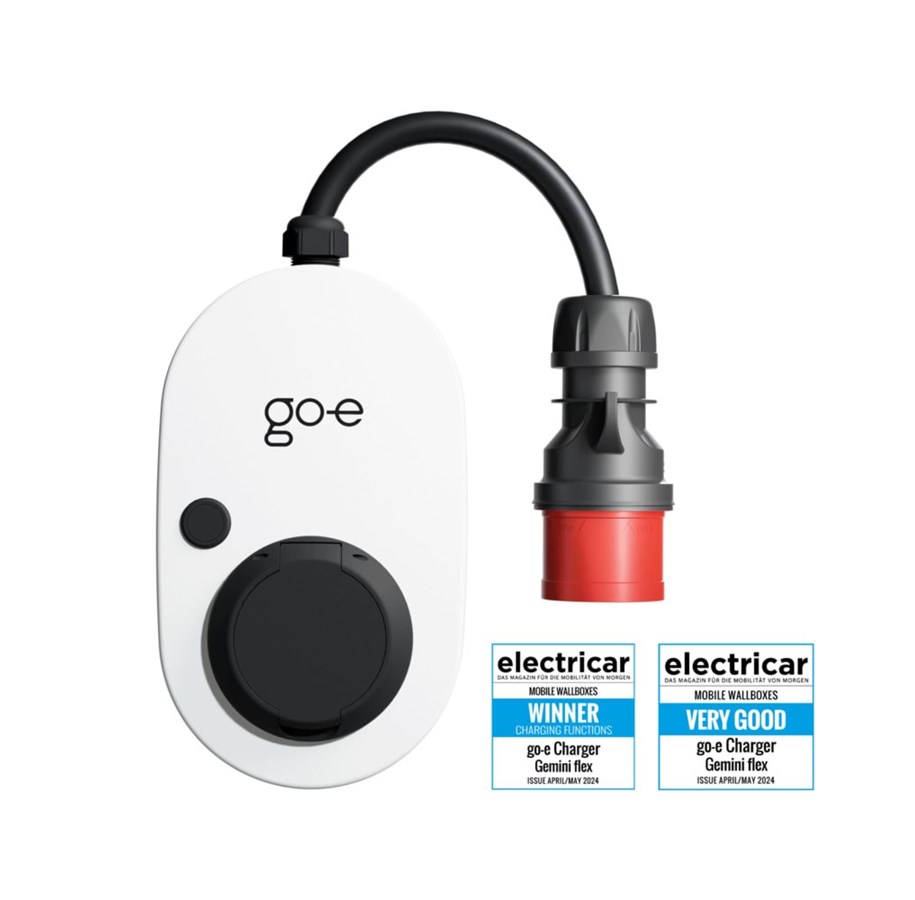

go-e Charger Gemini flex 22 kW
The go-e Charger Gemini flex with a maximum charging capacity of 22 kW is a smart wallbox for charging electric vehicles and plug-in hybrids both indoors and outdoors. The go-e Charger Gemini flex 22 kW offers numerous additional convenient functions via the go-e app.
619,47 €
511,96 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd (verwacht in eigen magazijn 10-6-2026)
The go-e Charger Gemini flex 22 kW is a wallbox for charging electric cars that can also be converted into a mobile charging station in just a few seconds. The Charger is suitable for indoor and outdoor installation and can be connected directly to an existing red CEE 16 A three-phase socket. Immediately after connection, it is ready for the first charging process.
The mobile charging station can be used absolutely safely. For example, the RCD protection module completely switches off the charger in the event of DC fault currents. The charging station can be used with or without an app. With the free go-eCharger app, comfort and basic settings can be changed, allowing you to adapt the device to your personal charging behaviour. For example, you can plan the charging process to make it more sustainable and reduce the load on the power grid.
The mobile charging station can be used absolutely safely. For example, the RCD protection module completely switches off the charger in the event of DC fault currents. The charging station can be used with or without an app. With the free go-eCharger app, comfort and basic settings can be changed, allowing you to adapt the device to your personal charging behaviour. For example, you can plan the charging process to make it more sustainable and reduce the load on the power grid.
Producent
Productnummer
3319909
Model
CH-04-22-01
EAN
9120087411207
Naar de website van de producent
Kleur van het product
Wit
Montagewijze
Muur
Ingebouwd display
Nee
Kleur kabel
Zwart
LED-indicatoren
Ja
Aantal stopcontacten
1
Stopcontact type
Type 2
RFID lezer
Ja
Aardingssysteem ondersteund
IT, TN, TT
Internationale veiligheidscode (IP)
IP55
IEC-beschermingsklasse
I
Dwarsdoorsnedeverbinding
5 x 2,5 mm²
Aantal per verpakking
1 stuk(s)
Aantal fases
3
Type stroombron
AC
Maximaal laadvermogen
22000 W
Enkelfasige uitgangsspanning ondersteund
230,240 V
Driefase-uitgangsspanning ondersteund
400,415 V
Nominale frequentie
50 Hz
Maximaal bedrijfsvermogen (driefasig)
22 kW
Maximale bedrijfsstroom (driefasig)
32 A
Type stekker
CEE
Wifi
Ja
Bedrijfstemperatuur (T-T)
-25 - 40 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Hoogte, in bedrijf
0 - 2000 m
Breedte
155 mm
Diepte
110 mm
Hoogte
260 mm
Gewicht
1,82 kg
Gewicht verpakking
3,02 kg
Design
Kleur van het product
Wit
Montagewijze
Muur
Ingebouwd display
Nee
Kleur kabel
Zwart
LED-indicatoren
Ja
Kenmerken
Aantal stopcontacten
1
Stopcontact type
Type 2
RFID lezer
Ja
Aardingssysteem ondersteund
IT, TN, TT
Internationale veiligheidscode (IP)
IP55
IEC-beschermingsklasse
I
Dwarsdoorsnedeverbinding
5 x 2,5 mm²
Aantal per verpakking
1 stuk(s)
Energie
Aantal fases
3
Type stroombron
AC
Maximaal laadvermogen
22000 W
Enkelfasige uitgangsspanning ondersteund
230,240 V
Driefase-uitgangsspanning ondersteund
400,415 V
Nominale frequentie
50 Hz
Maximaal bedrijfsvermogen (driefasig)
22 kW
Maximale bedrijfsstroom (driefasig)
32 A
Type stekker
CEE
Poorten & interfaces
Wifi
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-25 - 40 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Hoogte, in bedrijf
0 - 2000 m
Gewicht en omvang
Breedte
155 mm
Diepte
110 mm
Hoogte
260 mm
Gewicht
1,82 kg
Gewicht verpakking
3,02 kg
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
