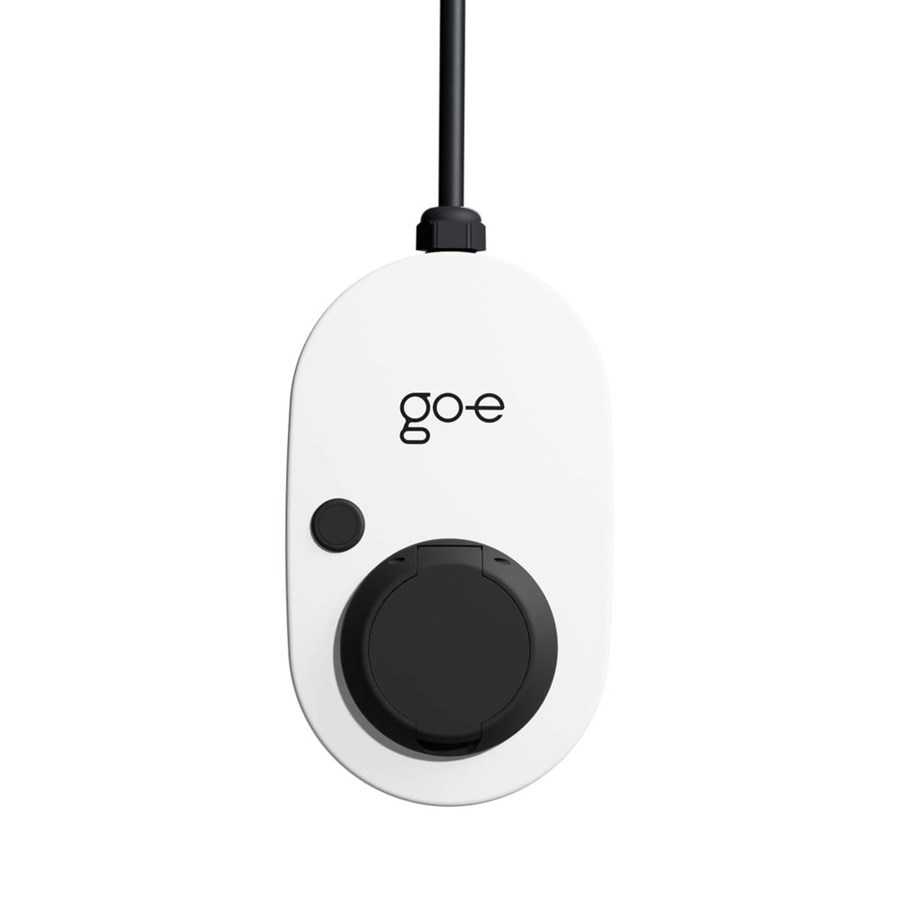

go-e Charger Gemini 22 kW
The go-e Charger Gemini 22 kW is a smart wallbox in a timeless design for installation at a fixed location indoors and outdoors. The go-e Charger Gemini charges electric cars and plug-in hybrids easily, quickly and safely.
777,00 €
642,15 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd
The go-e Charger Gemini 22 kW is an intelligent wallbox for charging electric cars at home and at company locations (without charging current billing). Immediately after installation, the device is ready for the first charging process (Plug&Play).
The charging station has a 1.8 meter connection cable for permanent connection to a power distribution box. Thus, unlike the go-e Charger Gemini flex, the charger does not have a plug and is therefore not mobile. The clever solution for all those who need a smart home charging station for pure wall Installation.
In addition to extensive safety functions such as DC fault protection (FI protection module), phase detection and ground measurement, the charging station is equipped with RFID for access control (activation via app if required) and hotspot/WiFi, among other features. PV connection via the API interface, load balancing and use of flexible energy tariffs*** are also part of the range of functions. With the free go-e Charger app, comfort and basic settings can be changed, allowing the device to be adapted to personal charging behavior and inviting more sustainable charging.
The charging station has a 1.8 meter connection cable for permanent connection to a power distribution box. Thus, unlike the go-e Charger Gemini flex, the charger does not have a plug and is therefore not mobile. The clever solution for all those who need a smart home charging station for pure wall Installation.
In addition to extensive safety functions such as DC fault protection (FI protection module), phase detection and ground measurement, the charging station is equipped with RFID for access control (activation via app if required) and hotspot/WiFi, among other features. PV connection via the API interface, load balancing and use of flexible energy tariffs*** are also part of the range of functions. With the free go-e Charger app, comfort and basic settings can be changed, allowing the device to be adapted to personal charging behavior and inviting more sustainable charging.
Producent
Productnummer
3319911
Model
CH-04-22-51
EAN
9120087411078
Naar de website van de producent
Kleur behuizing
Wit
Montagewijze
Muur
Ingebouwd display
Nee
Kleur kabel
Zwart
LED-indicatoren
Ja
Type stroombron
AC
Wifi
Ja
Aantal stopcontacten
1
Stopcontact type
Type 2
RFID lezer
Ja
Aardingssysteem ondersteund
IT, TN, TT
Internationale veiligheidscode (IP)
IP55
IEC-beschermingsklasse
I
Dwarsdoorsnedeverbinding
5 x 2,5 mm²
Aantal per verpakking
1 stuk(s)
Aantal fases
3
Maximaal laadvermogen
22000 W
Enkelfasige uitgangsspanning ondersteund
240,230 V
Driefase-uitgangsspanning ondersteund
415,400 V
Nominale frequentie
50 Hz
Maximaal bedrijfsvermogen (driefasig)
22 kW
Maximale bedrijfsstroom (driefasig)
32 A
Stroomverbruik (in standby)
3,1 W
Bedrijfstemperatuur (T-T)
-25 - 40 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Hoogte, in bedrijf
0 - 2000 m
Lengte oplaadkabel
1,8 m
Breedte
155 mm
Diepte
110 mm
Hoogte
260 mm
Gewicht
2,34 kg
Gewicht verpakking
3,45 kg
Design
Kleur behuizing
Wit
Montagewijze
Muur
Ingebouwd display
Nee
Kleur kabel
Zwart
LED-indicatoren
Ja
Kenmerken
Type stroombron
AC
Wifi
Ja
Aantal stopcontacten
1
Stopcontact type
Type 2
RFID lezer
Ja
Aardingssysteem ondersteund
IT, TN, TT
Internationale veiligheidscode (IP)
IP55
IEC-beschermingsklasse
I
Dwarsdoorsnedeverbinding
5 x 2,5 mm²
Aantal per verpakking
1 stuk(s)
Energie
Aantal fases
3
Maximaal laadvermogen
22000 W
Enkelfasige uitgangsspanning ondersteund
240,230 V
Driefase-uitgangsspanning ondersteund
415,400 V
Nominale frequentie
50 Hz
Maximaal bedrijfsvermogen (driefasig)
22 kW
Maximale bedrijfsstroom (driefasig)
32 A
Stroomverbruik (in standby)
3,1 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-25 - 40 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Hoogte, in bedrijf
0 - 2000 m
Gewicht en omvang
Lengte oplaadkabel
1,8 m
Breedte
155 mm
Diepte
110 mm
Hoogte
260 mm
Gewicht
2,34 kg
Gewicht verpakking
3,45 kg
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
