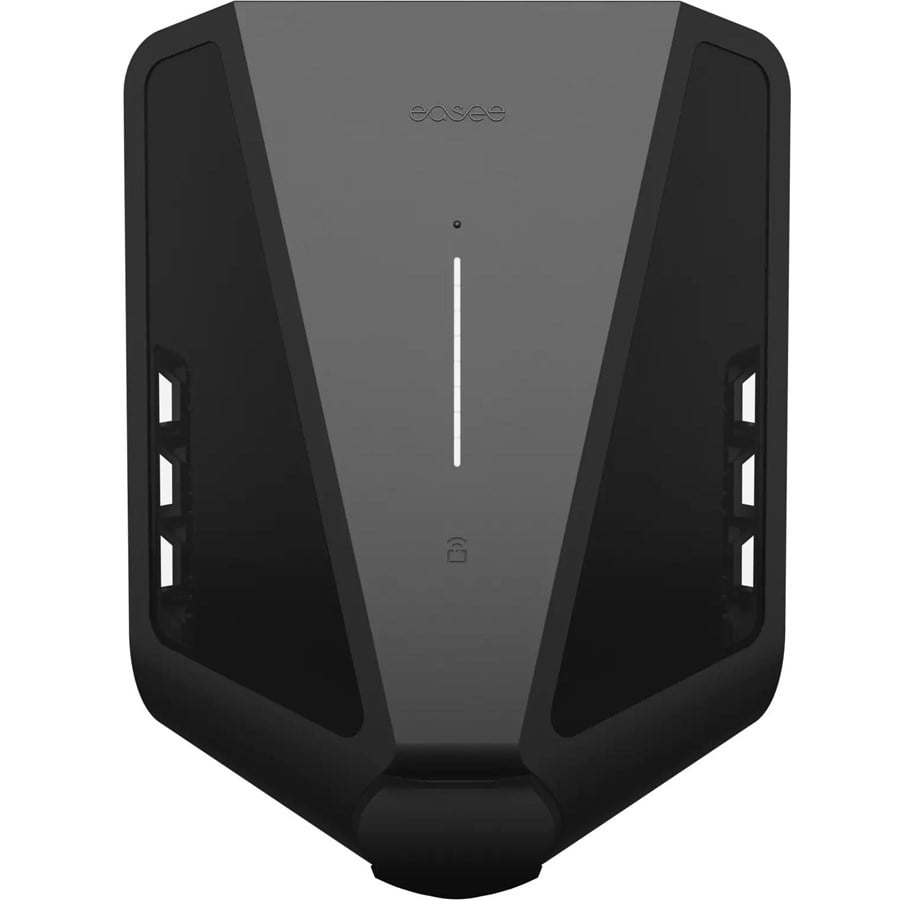

Easee Charge Pro charger 22 kW 4G + WiFi, Black

Easee Charge Pro is a smart electric vehicle charger designed to power large charging stations. It is equipped with a MID certified meter that enables professional services such as billing, reimbursements and fleet management.

With remote monitoring and maintenance via Easee Control, continuous software updates and V2G-ready hardware, Charge Pro is built to perform today and be ahead of tomorrow.

Features

• MID class B accuracy, according to EN 50470-3.
• Easee LinkTM Local load and phase balancing.
• Automatic queuing system.
• Permanent locking of the Type 2 cable.
• Integrated RFID reader (NFC/ISO 14443 and MIFARE Classic®).
• Universal, suitable for all types of electric vehicles and power supplies.
• Full control with Easee App or third-party integrations.
• Manufacturer's warranty: 5 years in accordance with Easee's warranty procedure.
• Complies with the functionality of ISO 15118-2 and is designed to support ISO 15118-20.
• Compatible with OCPP 1.6J (Proxy) + OCPP 1.6J Direct.
• Designed to support future OCPP 2.X standard.

Protection

Integrated RCD type A
30 mA AC, approved according to EN 60947-2.
Integrated RDC-DD 6 mA DC according to
IEC 62955, 9.9.
Temperature monitoring.
Overload protection.
Degree of protection: IP54 (back plate is IP22 without protection).
Impact resistance: IK10
Overvoltage category III.
Anti-theft.

Charging power

1-phase: 1.4 kW (6 A) - 7.4 kW (32 A).
TN 3-phase: 4.1 kW (6 A) - 22 kW (32 A).
IT 3-phase: 2.4 kW (6 A) - 12.7 kW (32 A).

Electrical

Voltage: 3x 230 V / 400 V AC (+/-10%).
Mains frequency: 50 Hz.
Mains: TN, IT, TT.
Connection point: Type-2 socket (Mode 3).
Automatic adaptation of the charging speed based on the available power.
Automatic charging with solar energy.
Automatic phase balancing.
Built-in energy meter in MID class B (±1%).
V2G-ready

Connectivity

Wi-Fi 2.4 GHz b/g/n.
Bluetooth BLE 4.2.
Integrated LTE Cat M1.
OCPP 1.6J.
Easee LinkRF (internal communication between charger and with the equalizer).
Built-in RFID/NFC reader for access control.
Easee App & Easee Control for control and monitoring.

General

Dimensions (mm): H: 256 x W: 193 x D: 106.
Wall mounting (mm): c/c H: 160 x W: 125.
Operating temperature: -30 °C to +40 °C.
Weight: 1.6 kg.

Complies with the following regulations

2014/53/EU (RED).
2011/65/EU (RoHS).
2014/30/EU (EMCD).
2014/35/EU (LVD).
2014/32/EU (MID)
Electric Vehicles (Smart Charging) Regulations 2021

Reliable local control

Get comprehensive local control over your charger by connecting via Bluetooth and accessing many useful features.

• Control charging.
• View charging status.
• Lock/unlock the charging cable.
• Approve charging with the app.
• Overview of charging sessions.
• Lifetime consumption counter.
• Overview of available energy.
• Configuration.
