Vsh Fabrieken Xpr Roestvrij t thr fff 22xrp1/2x22

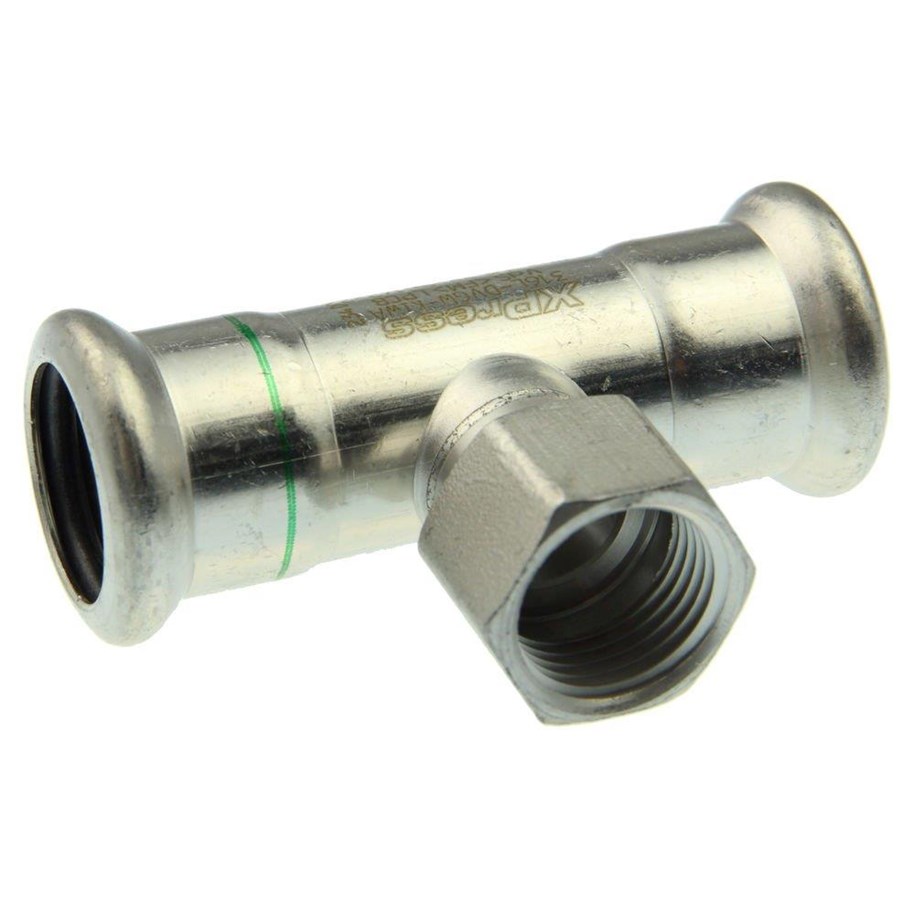

VSH Tee Coupling/Coupling/Coupling 22 mm X 1/2X22 mm Acid-resistant Product Description: VSH X Press in stainless steel is a complete system with fittings and pipes from 15 mm - 108 mm for installations for domestic water, rainwater, softened water, desalinated water, distilled water, heating systems and cooling systems. Benefits: Can be pressed with most brands of universal M-profile pressing tools. Complete system program with fittings, pipes and valves. Approved in accordance with DVGW working diagram W534. Very precise tolerances make the pipe easy to insert into fittings. Pressure testing of all welded parts. VA approved. Suitable for all types of pipes that comply with DIN 17455.Technical characteristics Material: Pipe and fittings: AISI 316 (1.4401) O-ring: EPDM (LBP) Leak Before Pressed Application area: Medium: Water Temperature:-20/+110 C Pressure:max16 bar Approval :VA Product family:VSH XPress in galvanized steel is a complete system with fittings and pipes ranging from12mm-108mmfor heatingandcooling systems.Benefits:Can be pressedwithmostbrands ofuniversalM-profilepressingtools.Complete systemprogramwithfittings,pipesandvalves.O-ringwithleakbeforepressed.Laser-welded joints.Allweldedjointsarepressuretested.Very precisetolerancesmake thepipeeasytoinsertintofittings.SuitableforalltypesofpipescomplyingwithEN10305-3(formerlyDIN2394).Technical characteristics Material:FittingsGalvanizedsteelRSt34-2 PackingEPDM leak beforepressed(LBP)Application area:MediumWaterTemperature:-20/+110CPressure:max16barTechnical specifications:Weight0.105Dimension22X1/2X22mm
