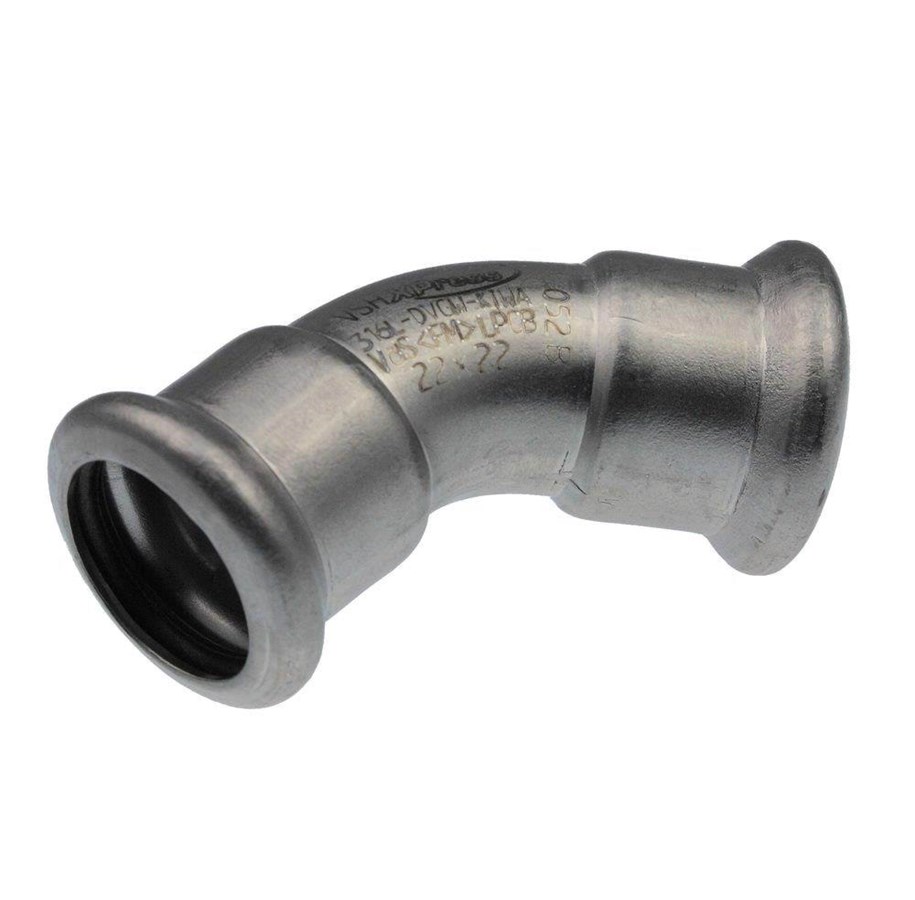

Vsh Fabrieken Xpr Roestvrij elbow E 45 deg. ff 35

VSH 45° bend sleeve/sleeve 35 mm acid-resistant. Product description: VSH X Press in stainless steel is a complete system with fittings and pipes from 15 mm - 108 mm for installations for domestic water, rainwater, softened water, desalinated water, distilled water, heating systems and cooling systems. Benefits: Can be pressed with most brands of universal M-profile pressing tools. Complete system program with fittings, pipes and valves. Approved in accordance with DVGW working diagram W534. Very precise tolerances make the pipe easy to insert into fittings. Pressure testing of all welded parts. VA approved. Suitable for all types of pipes that comply with DIN 17455.Technical characteristics:Material:Pipe and fittings: AISI 316 (1.4401)O-ring: EPDM (LBP) Leak Before PressedApplication area:Medium: WaterTemperature: -20/+110 CPressure: Max.16 barProduct family:VSH XPress in galvanized steel is a complete system with fittings and pipes ranging from 12mm-108mm for heating and cooling systems.Benefits:Can be pressed using most brands of universal M-profile pressing tools.Complete system program including fittings, pipes and valves.Leak before pressed O-ring.Laser-welded joints.All welded joints are pressure tested.Very precise tolerances make the pipe easy to insert into fittings.Suitable for all types of pipes that comply with EN10305-3 (formerly DIN2394).Technical characteristics:Material:Fittings Galvanized Steel RSt34-2Packing EPDM leak before pressed (LBP)Application area:Medium Water Temperature -20/+110 C Pressure Max16 bar Technical specifications:Weight :0 .134 Dimension :35mm
