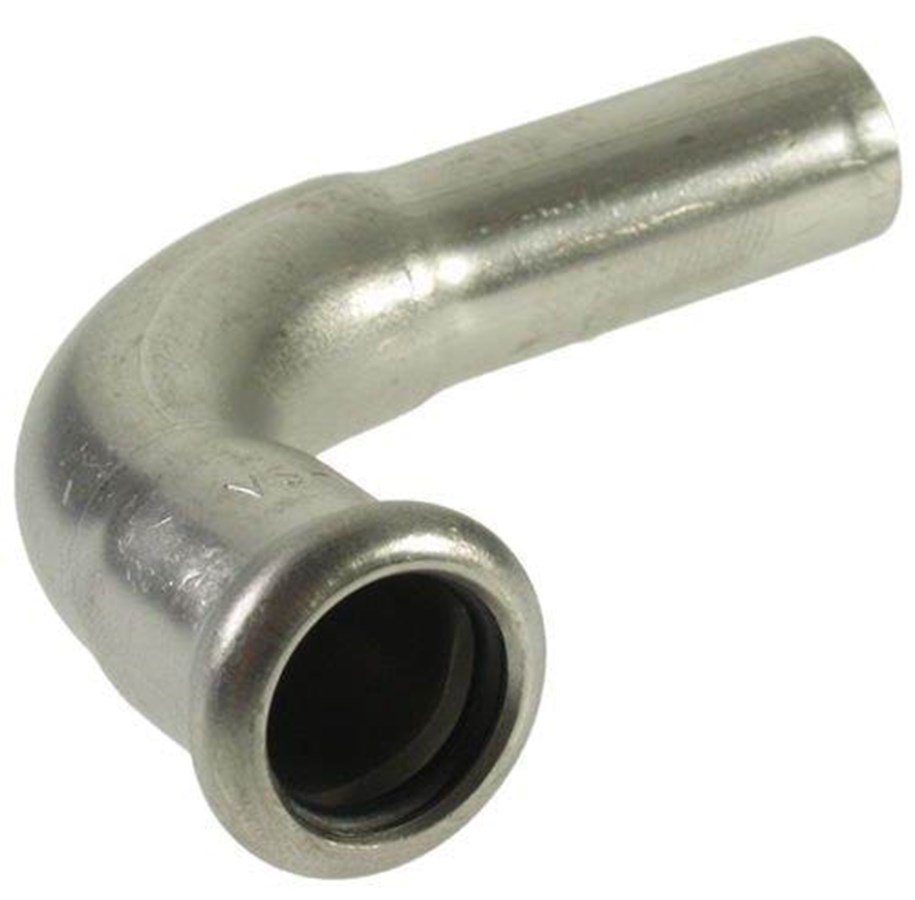

Vsh Fabrieken Xpr Roestvrij elbow 90 deg. øf 88.9

VSH 90° bend nipple/socket 88.9mm stainless steelProduct description: VSH X Press in stainless steel is a complete system of fittings and pipes ranging from 15mm to 108mm for installations of domestic water, rainwater, softened/decalcified water, desalinated water, distilled water, heating systems and cooling systems.Advantages:- Can be pressed with most brands of universal M-profile pressing tools.- Complete system program with fittings, pipes and valves.- Approved in accordance with DVGW working diagram W534.- Very precise tolerances make the pipe easy to insert into the fittings.- Pressure testing of all welded parts.- VA approved- Suitable for all types of pipes that comply with DIN 17455.Technical characteristics:Material:Pipes and fittings: AISI 316 (1.4401)O-ring: EPDM (LBP) Leak Before PressedApplication area:Medium: WaterTemperature: -20/+110 CPressure: Max.16 barProduct family:VSH XPress in galvanized steel is a complete system of fittings and pipes ranging from12 mm to108 mm for heating and cooling systems.Advantages:Can be pressed with most brands of universal M-profile pressing tools.Complete system program with fittings, pipes and valves.O-ring with leak before pressed featureLaser-welded joints All welded joints are pressure tested Very precise tolerances make the pipe easy to insert into the fitting Suitable for all types of tubes that comply EN10305 -3 (formerly DIN2394)Technical characteristics:Material:Fittings Galvanized Steel RSt34 -2 Packing EPDM leak before pressed(LBP)Application area:Medium :Water Temperature:-20/+110 C Pressure :Max.16 bar Technical specifications:Weight :1.330 Dimension :88.9mm
