Vsh Fabrieken Xpr Roestvrij angl ad 90 deg. fm 22xr3/4

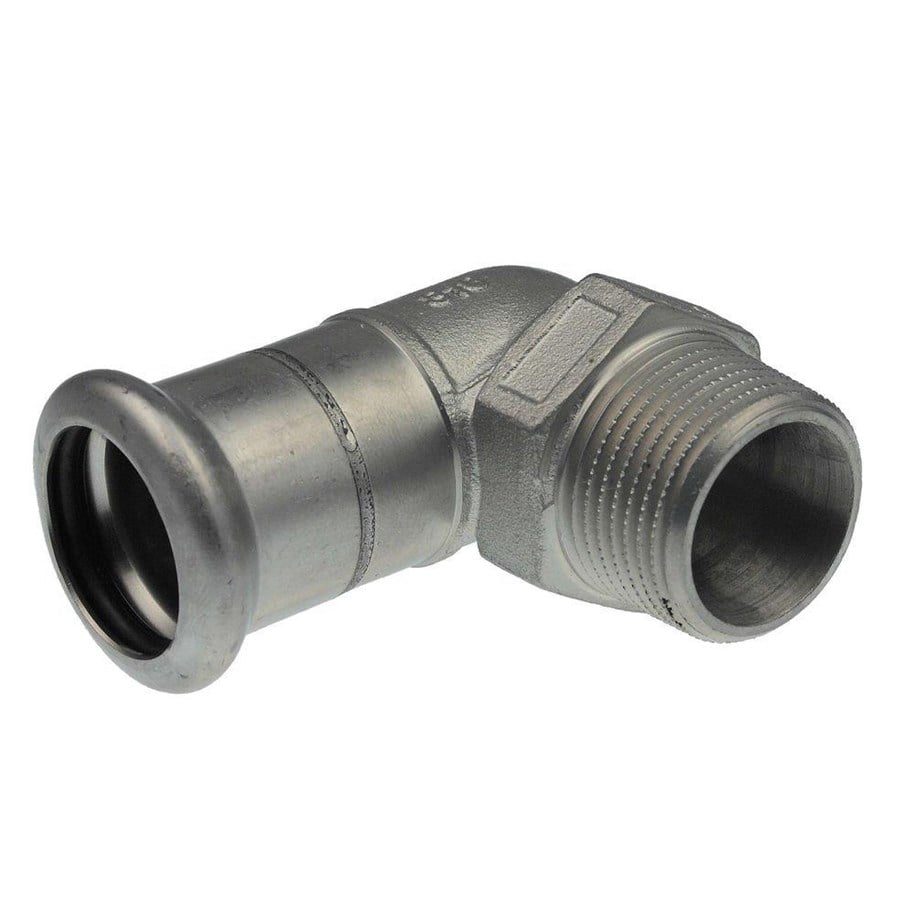

VSH 90° bend coupling/nipple 22 mm X 3/4" acid-resistant. Product description: VSH X Press in stainless steel is a complete system with fittings and pipes from 15 mm - 108 mm for installations for domestic water, rainwater, softened water, desalinated water, distilled water, heating systems and cooling systems. Benefits: Can be pressed with most brands of universal M-profile pressing tools. Complete system program with fittings, pipes and valves. Approved in accordance with DVGW working diagram W534. Very precise tolerances make the pipe easy to insert into fittings. Pressure testing of all welded parts. VA approved. Suitable for all types of pipes that comply with DIN 17455.Technical characteristics:Material:Pipe and fittings: AISI 316 (1.4401)O-ring: EPDM (LBP) Leak Before PressedApplication area:Medium: WaterTemperature: -20/+110 CPressure: Max.16 barProduct family:VSH XPress in galvanized steel is a complete system with fittings and pipes ranging from12mm-108mm for heating and cooling systems.Benefits:Can be pressed with most brands of universal M-profile pressing tools.Complete system program including fittings, pipes,and valves.O-ringwith leak before pressed feature.Laser-welded joints.All welded joints are pressure tested.Very precise tolerances make the pipe easy to insert into fitting.Suitablefor all typesofpipes that complywithEN10305-3(formerlyDIN2394).Technical characteristics:Material:Fittings Galvanized Steel RSt34-2 Packing EPDM leak beforepressed(LBP)Application area:Medium :Water Temperature:-20/+110C Pressure :Max .16barTechnical specifications:Weight :0 .134 Dimension :22mmX3/4
