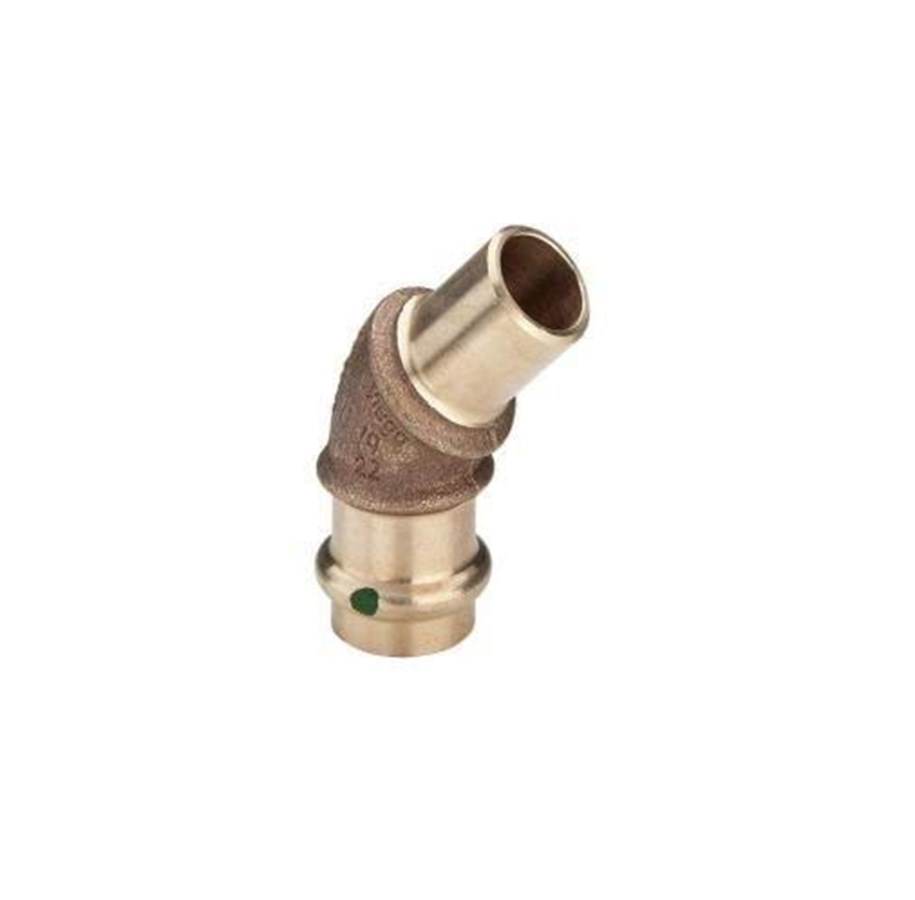

Viega sanpress elleboog 45° 42 134471

Viega Sanpress bend 45° 42 Red brass/blank, 134471 Product description: Press fitting system with press fittings made of red brass, pipes made of stainless steel material no. 1.4401 and 1.4521 according to DIN EN 10088, DIN EN 10312, DVGW work sheet GW541, system approval for fittings and pipes according to DVGW work sheet W534 for drinking water installations according to DIN1988. For stable installation of various plumbing installations in Viega's overall system.Press fittingsAll sizes have an SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled. The SC-Contur is certified and meets the requirements of DVGW work sheet W534, section12.14 guaranteed leak-proof if not pressed.During water tightness tests Viega can detect unpressed fittings in the pressure range from0.1 MPa–0.65 MPa,, during dry tightness testing with compressed air or inert gases from22 hPa–0.3 MPa.Markings•Green dot on press connectionGasketsEPDM black (ethylene-propylene-diene rubber), up to110°C not resistant against hydrocarbon solvents,chlorinated hydrocarbons,turpentine,gasolinePipesStainless steel pipes laser welded and made of corrosion-resistant stainless steel•Material no.:1 .4401 (AISI316L) (X5CrNiMo17-12-2),with2 .3% molybdenum for better durability,yellow plugs•Material no.:14521(AISI444)(X2CrMoTi18-2),with PRE value24 .l ,green plugsDimensions/materialStandard sizes:d12 ,15 ,18 ,22 ,28 ,35 ,42 ,54madeofredbrassXL sizes:d76 .1 ,88 .9 ,108 .0madeofredbrassPress fitting with threaded connection of red brassAreas of applicationDrinking waterRainwaterCompressed air systemsAgricultureIndustrySpecial applicationsShipbuildingIn case of use for other than the described areas of application, please contact Viega Service Center to coordinate materials.Operating conditionsDrinking water installations•Drinking water without restrictions according to TrinkwV•Operating temperature max.85°C•Operating pressure max.1 .6 MPa
