ATOM 2 Drone

Design Language

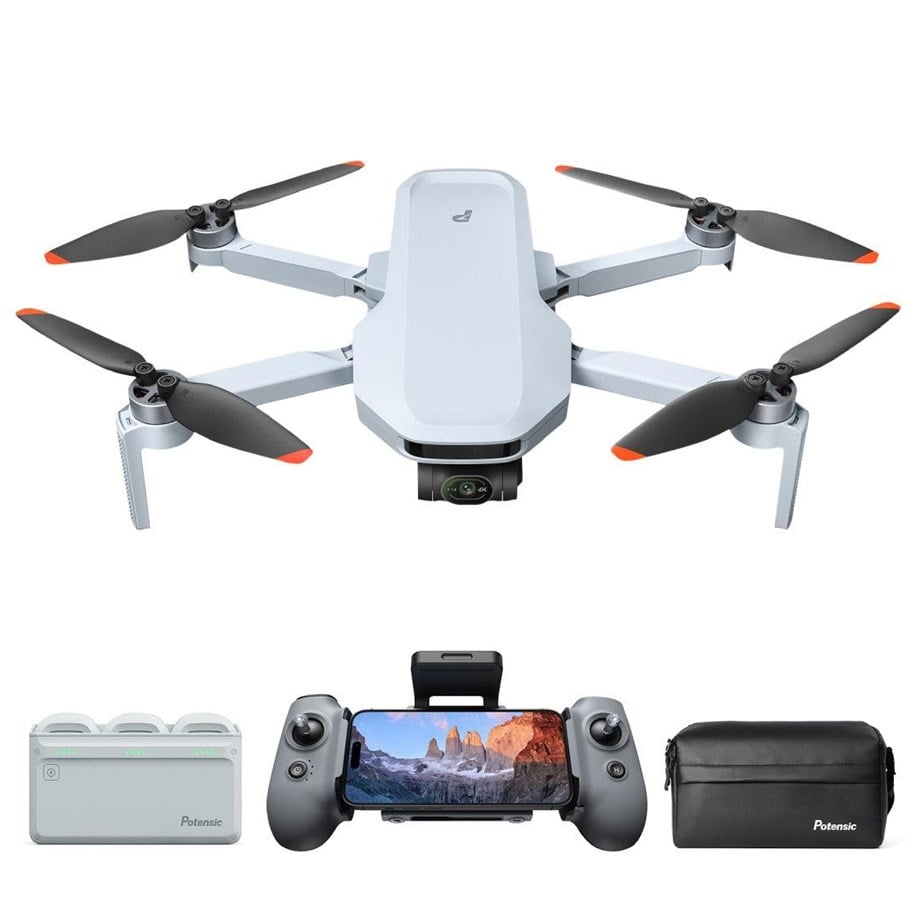

Foldable drone ATOM 2 invites you into an aerodynamic composition that balances nimble portability with solid rigidity, folding its arms for travel and unveiling poised stances for cinematic takeoff.

Every surface is engineered to breathe premium calm: dual antennas extend the PixSync 4.0 transmission while the brushless propulsion delivers sport-mode speeds with ascent at 5 m/s, descent at 4 m/s, and a horizontal reach of 16 m/s, letting motion feel deliberate yet effortless.

Smart Flight Battery workhorse supports up to 32 minutes of flight time when cruising at gentle speeds, while indoor hovering can stretch toward 29 minutes, sustaining exploration without constant charging.

Imaging & Stabilization

The 1/2" CMOS sensor slices in at an effective 48 MP, ready for HDR stills and dual-format outputs in JPG plus optional RAW (DNG) for later sculpting, with a lens that tilts from -90° to +20°, giving you vertical panoramas and dynamic perspectives.

Videos stream at up to 4K (3840×2160 @24/25/30fps) or alternate between 2.7K and FHD options with slow-motion capabilities up to 5x, capped at 80 Mbps to preserve color depth while maintaining manageable file sizes on U3/V30 microSD cards.

Gimbal stabilization sweeps between -125° to +45° mechanically, while controllable tilts align frontally from -90° to +20°, delivering buttery camera movement with ±0.01° angular vibration control to keep horizons level even during brisk maneuvers.

Guidance & Autonomy

GNSS constellation coverage spans GPS, GLONASS, Galileo, and BeiDou, offering tighter horizontal and vertical hovering accuracy, especially when paired with vision positioning that locks within ±0.1 m vertically and ±0.3 m horizontally.

Downward vision sensors map textures from 0.3 to 5 meters, while the vision system wisely cautions against monochrome surfaces, reflections, transparent panes, and other scenarios where contrast is compromised.

AI QuickShots—Pull-away, Spiral, Rocket, Circle, Boomerang, and Dolly Zoom—pair with AI Track modes like Spotlight, Follow, and Parallel to choreograph cinematic flights with minimal fingertip input, and Cruise Control steadies journeys along smooth vectors.

Connection & Control

The DSRC23A controller mirrors the drone’s calm precision, streaming 1080p live footage via PixSyn 4.0 with latency around 120 ms and a 10 km operating radius, while supporting Lightning, USB-C, and Micro-USB mobile devices held by controllers up to 170 mm in length.

Charging is practical with USB-C connectors that accept up to 18W Power Delivery and keep the transmitter energized for around four hours when tethered to a smartphone, enabling long shooting sessions without interruption.

Dual antennas and Wi-Fi 5 compatibility elevate downloads to 25 MB/s, and the entire video transmission chain thrives at 2.4 GHz, offering a trustworthy handshake between pilot and payload.

From meticulous agility to creative intelligence, ATOM 2 signals a refined narrative where every technical detail supports expressive aerial storytelling.
