Productnummer: 3177772

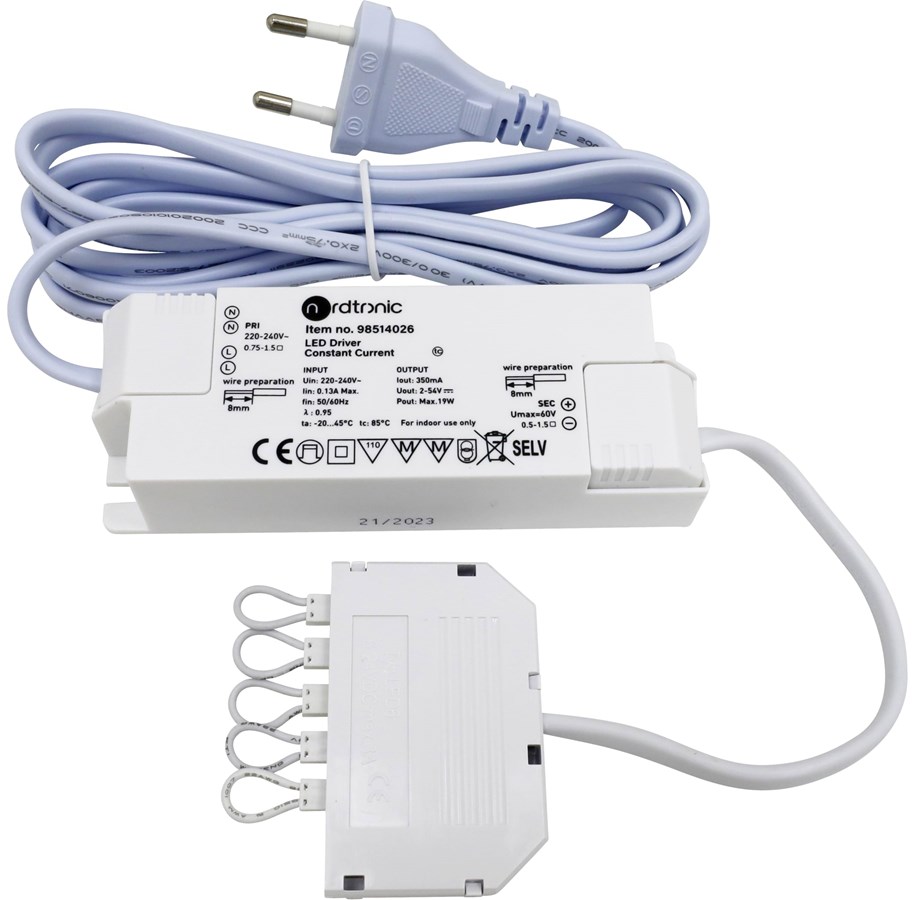

Nordtronic LED driver not dimmable 1-19W 350mA

  • LED drivers for mini downlights (350mA), 6 outputs
  • Built-in thermofuse with auto reset
  • Quick and easy installation
  • Can be fastened by screws
  • Do NOT plug in any LED lamps, when connected to power

33,01 € 27,28 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 3 - 4 werkdagen levertijd

Om deze inhoud te kunnen bekijken, moet u cookies accepteren.

Cookie-instellingen wijzigen
Technical data:

  • Primary voltage: 220-240VAC 50/60 Hz
  • System effect: 1-19W
  • Secondary amperage: 350mA
  • Min. load: 1W
  • Max. load: 19W
  • Efficiency: +83%
  • Vout range: 2-54 Vdc
  • Max. voltage (open circuit): ≤60 Vdc
  • Expected lifespan: 50,000 hours
  • Dimmable: No
  • Flicker free: Yes, according to the new Ecodesign / ErP directive
  • Fuse: Built-in thermal fuse with auto reset
  • Distribution box on secondary side: Yes, with 6 outputs
  • Cable from the secondary side: Yes, 15 cm to distribution box
  • Connection cable onprimary side: Yes, 2 m cable equipped with 2P plug
  • Possibility of attachment: Yes, using screws (not included)
  • Dimensions driver: L: 116 mm, W: 41 mm, H: 25 mm
  • Dimensions distribution box: L: 58 mm, B: 37 mm, H: 10 mm
  • Ambient temperature range ta: -20° - +45°
  • Storage temperature range: -20° - +70°
  • Mains switching cycles: >100,000
  • IP rating: IP20
  • Insulation class: Class II, SELV
  • Material: Plastic
  • Environment: Indoor
  • Warranty: 5 years
  • Approvals: CE

Producent
Productnummer
3177772
Model
98514026
EAN
5704629004993
