Productnummer: 3246294

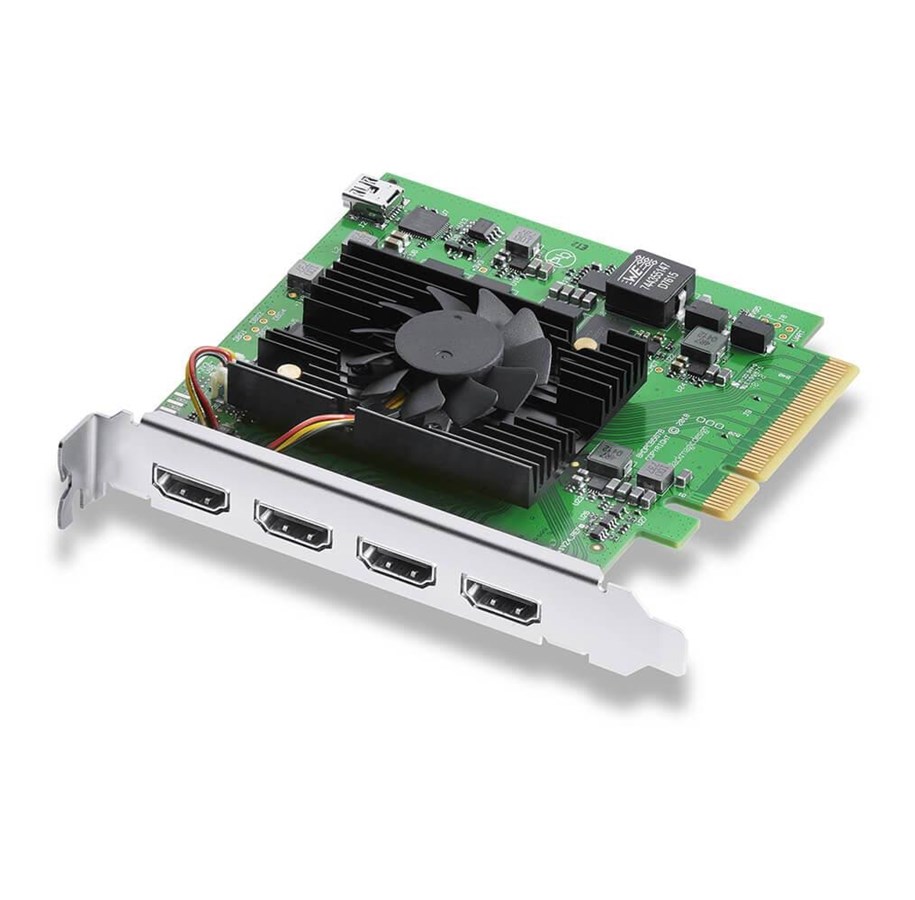

Blackmagic DeckLink Quad HDMI Recorder
Video capture adapter, PCIe 3.0 x8, NTSC, PAL
600,29 €
496,11 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
DeckLink Quad HDMI Recorder is a high performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K and even computer formats, all at the same time! Featuring 4 independent HDMI 2.0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real time computer game capture, streaming and more!
Producent
Productnummer
3246294
Model
BDLKDVQDHDMI4K
EAN
9338716006094
Naar de website van de producent
Productbeschrijving
Blackmagic DeckLink Quad HDMI Recorder - video capture adapter - PCIe 3.0 x8
Type apparaat
Video capture adapter
Interfacetype
PCIe 3.0 x8
Afmetingen (BxDxH)
10.9 cm
Gewicht
128 g
Video Input
HDMI-ingang
Modi Video
1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 625/50p, 2160/24p, 2160/25p, 2160/30p, 2160/50p, 2160/60p, 4096/24p, 4096/50p, 4096/60p, 1080/59.94i, 1080/59.94p, 720/59.94p, 4096/30p, 1080/23.98p, 1080/29.97PsF, 2160/23.98p, 2160/29.97p, 4096/25p, 4096/23.98p, 4096/29.97p, 4096/59.94p, 525/59.94i, 2160/59.94p
Analoge video-indeling
NTSC, PAL
Videocompressieformaat
YUV 4:2:0, YUV 4:2:2, YUV 4:4:4
Digitale video-indeling
MPEG-2, DV, DVCPRO50, AVCHD, HDV, DVCPRO HD, AVC-Intra, ProRes 422, DNxHD, DPX, XDCAM EX, XDCAM HD, XDCAM HD422, ProRes 4444, ProRes 422 HQ, ProRes 422 Proxy, ProRes 422 LT, DNxHR
Resolutie digitale video-opname
1280 x 720, 640 x 480, 1600 x 1200, 1440 x 1080, 800 x 600, 1920 x 1440, 1920 x 1080, 2560 x 1440, 2560 x 1600, 1920 x 1200, 1440 x 900, 4096 x 2160
Ondersteuning voor audio-ingang
Standaard
Ingangsmodus geluid
24-bits - max sample rate: 48 kHz
Voorzieningen
High Dynamic Range (HDR)
Benodigd besturingssysteem
Linux, Windows 8.1 / 10 (64 bits), Apple macOS Catalina 10.15, Apple macOS Big Sur 11.1
Algemeen
Type apparaat
Video capture adapter
Interfacetype
PCIe 3.0 x8
Diepte
10.9 cm
Gewicht
128 g
Video
Interfacetype
HDMI-ingang
Modi Video
1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 625/50p, 2160/24p, 2160/25p, 2160/30p, 2160/50p, 2160/60p, 4096/24p, 4096/50p, 4096/60p, 1080/59.94i, 1080/59.94p, 720/59.94p, 4096/30p, 1080/23.98p, 1080/29.97PsF, 2160/23.98p, 2160/29.97p, 4096/25p, 4096/23.98p, 4096/29.97p, 4096/59.94p, 525/59.94i, 2160/59.94p
Analoge video-indeling
NTSC, PAL
Videocompressieformaat
YUV 4:2:0, YUV 4:2:2, YUV 4:4:4
Digitale video-indeling
MPEG-2, DV, DVCPRO50, AVCHD, HDV, DVCPRO HD, AVC-Intra, ProRes 422, DNxHD, DPX, XDCAM EX, XDCAM HD, XDCAM HD422, ProRes 4444, ProRes 422 HQ, ProRes 422 Proxy, ProRes 422 LT, DNxHR
Resolutie digitale video-opname
1280 x 720, 640 x 480, 1600 x 1200, 1440 x 1080, 800 x 600, 1920 x 1440, 1920 x 1080, 2560 x 1440, 2560 x 1600, 1920 x 1200, 1440 x 900, 4096 x 2160
Ondersteuning voor audio-ingang
Standaard
Audio sampling-formaat
Stereo 24-bit / 48 kHz
Voorzieningen
High Dynamic Range (HDR)
Audio Input
Gegevensbreedte
24-bits
Max. samplingsnelheid
48 kHz
Uitbreiding / Aansluiting
Interfaces
4 x audio/video - HDMI-ingang - 19 pins HDMI type A
Uitwisselbare slots
1 x PCI Express 3.0 x8
Stroom
Energieverbruik tijdens gebruik
23 Watt
Software / Systeemvereisten
Software meegeleverd
Stuurprogramma's & hulpprogramma's, Blackmagic Media Express, Blackmagic Disk Speed Test, Blackmagic Desktop Video Utility
Benodigd besturingssysteem
Linux, Windows 8.1 / 10 (64 bits), Apple macOS Catalina 10.15, Apple macOS Big Sur 11.1
Garantie van de fabrikant
Service & Support
Beperkte garantie - 3 jaar
Omgevingsparameters
Min. gebruikstemperatuur
5 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
0 - 90% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
