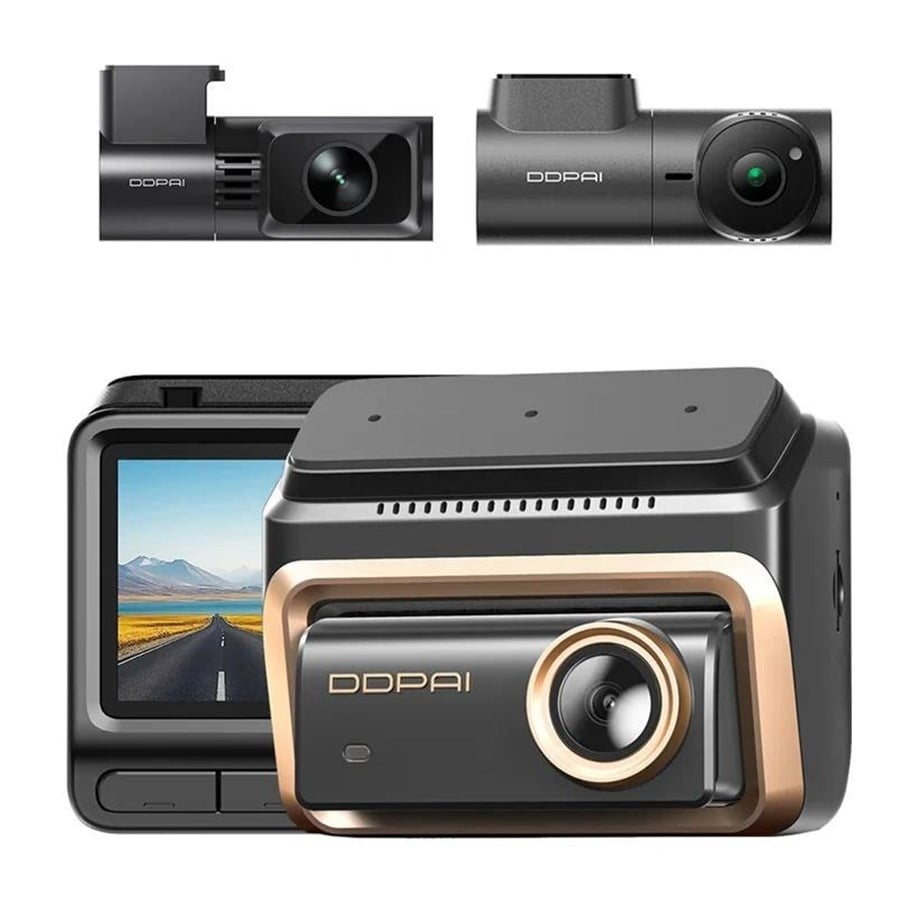

DDPAI Z90 Master Dash Cam

The DDPAI Z90 Master combines front and rear recording with Sony STARVIS 2 image sensors and a built-in 3-inch display. The front camera uses an 8-megapixel 1/1.8" Sony STARVIS 2 IMX678 sensor with an F1.75 aperture and 135° field of view. It records at its native 3840 × 2160 resolution at 30 or 25 fps, while a 2880 × 1620 mode is available at 60 fps for smoother footage. The rear camera is equipped with a 5-megapixel 1/2.8" Sony STARVIS 2 IMX675 sensor, an F1.7 aperture and a 126° field of view. It can record at 3840 × 2160 and 25 fps, with the specified resolution requiring upscaling rather than being the sensor's native resolution.

The 3-inch display has a resolution of 640 × 360 and allows the dash cam to be operated directly from the vehicle. Wireless connectivity includes 5 GHz Wi-Fi and Bluetooth 5.1, with app support providing access to the camera from a mobile device. Voice control offers an additional method of operation, while the integrated GNSS module supports GPS, BDS, GLONASS, GALILEO and QZSS for location data.

The Z90 Master uses a supercapacitor instead of a conventional battery and is designed for the temperature conditions found inside a vehicle. It can operate from -20°C to 70°C and withstand storage temperatures from -40°C to 85°C. A 3-axis G-sensor, microphone and speaker are also integrated, while the dash cam is powered through a USB-C port.
