Productnummer: 2402409

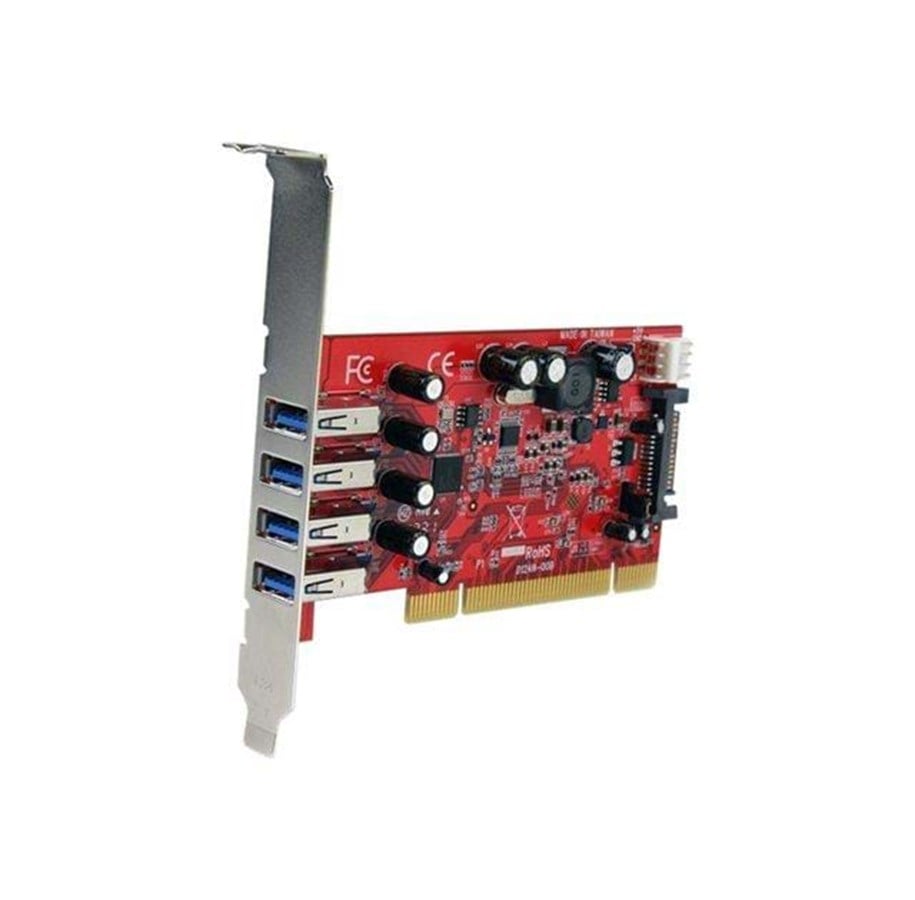

StarTech.com 4 Port PCI SuperSpeed USB 3.0 AV / multimedia paneel Card with SATA / SP4 Stroom

USB adapter, PCI-X low profile, USB, Hi-Speed USB, SuperSpeed USB 3.0, 4 ports, red

86,33 € 71,35 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 6 - 7 werkdagen levertijd

Add 4 SuperSpeed USB 3.0 ports to a computer through a PCI slot. The PCIUSB3S4 4-Port PCI to USB 3.0 Card enables legacy PCI slots to support the SuperSpeed USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.0 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection.This versatile USB 3.0 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.0 devices - suitable for even the most power hungry devices.A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology.The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3 devices but will also support older devices.

Producent
Productnummer
2402409
Model
PCIUSB3S4
EAN
0065030849517
Naar de website van de producent
Productbeschrijving
StarTech.com 4-poorts PCI SuperSpeed USB 3.0-adapterkaart met SATA-/SP4-voeding - USB-adapter - PCI-X - USB 3.0 x 4
Type apparaat
USB-adapter
Model
Insteekkaart - laag profiel
Interface (Bus) Type
PCI-X
Busvoltage
Universeel (3,3 Volt en 5,0 Volt)
Poorten
USB 3.0 x 4
Afmetingen (BxDxH)
2 cm x 13.3 cm x 6.5 cm
Gewicht
80 g
Protocol voor gegevenskoppeling
USB, USB 2.0, USB 3.0
Gegevensoverdrachtsnelheid
5 Gbps
Processor
NEC uPD720202
Conformiteitsnormen
USB 1.1, USB 2.0, USB 3.0
Kleur
Rood
Systeemvereisten
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32-/64-bits), Microsoft Windows Server 2003 (32-/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)
Ontworpen voor
P/N: HBS304A24A, S3510BMU33, S3510SMU33, UNI251BMU33, USB221SS

Algemeen

Type apparaat
USB-adapter
Model
Insteekkaart - laag profiel
Interface (Bus) Type
PCI-X
Busvoltage
Universeel (3,3 Volt en 5,0 Volt)

Netwerkgebruik

Poorten
USB 3.0 x 4
Connectiviteit
Met bekabeling
Protocol voor gegevenskoppeling
USB, USB 2.0, SuperSpeed USB 3.0
Gegevensoverdrachtsnelheid
5 Gbps
Conformiteitsnormen
USB 1.1, USB 2.0, USB 3.0

Processor / Geheugen

Processor
NEC uPD720202

Uitbreiding / Aansluiting

Interfaces
4 x USB 3.0 - 9-pins USB type A
Uitwisselbare slots
1 x PCI-X

Diversen

Meegeleverde accessoires
Platte steun
Conformiteitsnormen
FCC, RoHS
Kleur
Rood

Software / Systeemvereisten

Software meegeleverd
Stuurprogramma's & hulpprogramma's
Benodigd besturingssysteem
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32-/64-bits), Microsoft Windows Server 2003 (32-/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)

Afmetingen & gewicht

Breedte
2 cm
Diepte
13.3 cm
Hoogte
6.5 cm
Gewicht
80 g

Garantie van de fabrikant

Service & Support
Beperkte garantie - levenslang

Omgevingsparameters

Min. gebruikstemperatuur
5 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
15 - 90%

Informatie over Compatibiliteit

Ontworpen voor
P/N: HBS304A24A, S3510BMU33, S3510SMU33, UNI251BMU33, USB221SS
