Productnummer: 2436436

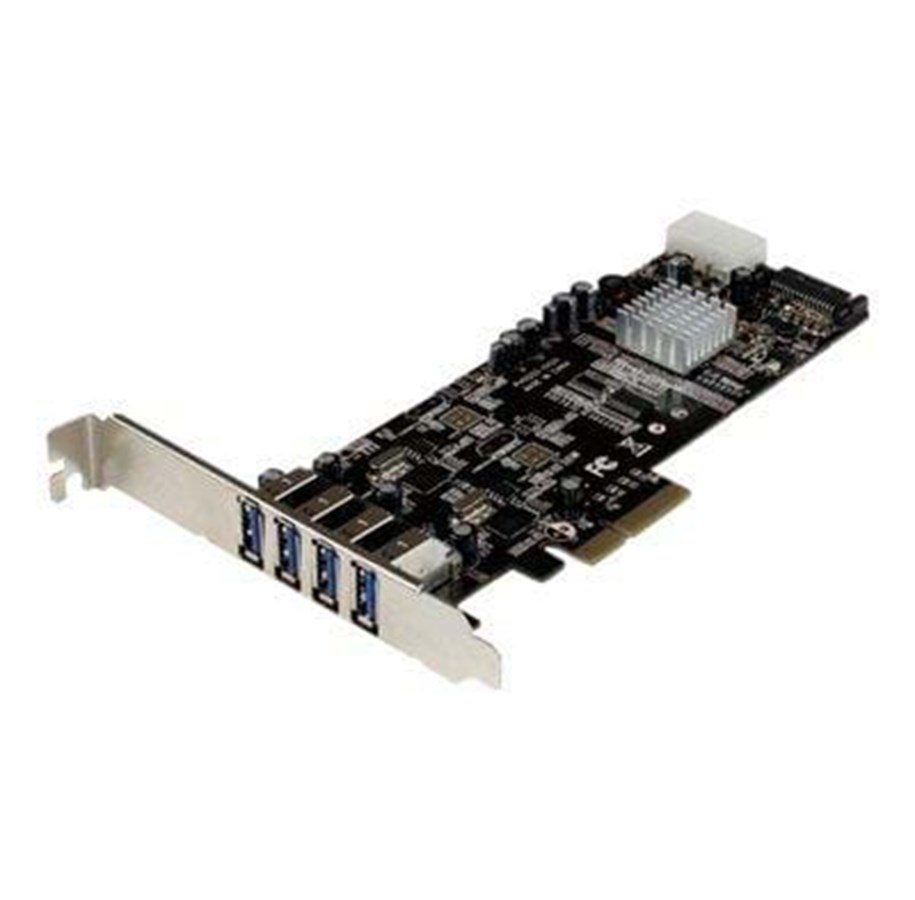

StarTech.com 4 Port Dual Bus PCI Express PCIe USB 3.0 Card w/ UASP & Power

USB adapter, PCIe, USB 3.0 x 4

75,88 € 62,71 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 6 - 7 werkdagen levertijd

Add 4 SuperSpeed USB 3.0 ports with Dual Bus architecture (5Gbps per 2 ports) to your PCI Express-enabled PC. The PEXUSB3S42V 4-Port Dual Bus PCI Express USB 3.0 Card lets you add four dual bus USB 3.0 ports to your PCIe x4-enabled PC. Dual bus architecture improves USB 3.0 performance by transferring data on independent channels to your computer, giving you faster file transfers.When multiple devices are connected, traditional single bus USB 3.0 cards share your maximum bandwidth between all ports. By employing a second host controller chipset, the dual bus transmission channel is shared across two ports rather than four. Allocating up to 5 Gbps for each set of two ports reduces performance bottlenecks, and effectively doubles your total available bandwidth to10 Gbps.Enhanced with UASP support (USB Attached SCSI Protocol), this USB controller performs up to70% faster than conventional USB when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a

Producent
Productnummer
2436436
Model
PEXUSB3S42V
EAN
0065030854597
Naar de website van de producent
Productbeschrijving
Startech 4-Port USB 3.0 PCI Express Card Adapter - PCIe SuperSpeed USB 3.0 Expansion Card w/ 2 Dedicated 5Gbps Channels (PEXUSB3S42V) - USB-adapter - PCIe x4 - USB 3.0 x 4
Type apparaat
USB-adapter
Model
Insteekkaart
Interface (Bus) Type
PCI Express x4
Poorten
USB 3.0 x 4
Afmetingen (BxDxH)
6.7 cm x 12.1 cm x 1.9 cm
Gewicht
90 g
Protocol voor gegevenskoppeling
USB, USB 2.0, USB 3.0
Gegevensoverdrachtsnelheid
5 Gbps
Processor
NEC uPD720202
Conformiteitsnormen
USB 1.1, USB 2.0, USB 3.0
Systeemvereisten
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Linux Kernel 2.6.31 of later, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32-/64-bits), Microsoft Windows Server 2003 (32-/64-bits), Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)
Ontworpen voor
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, ST103008U2C, ST4300U3C3, ST53004U1C, ST93007U2C, UNI251BMU33, USB3S2ESATA3

Algemeen

Type apparaat
USB-adapter
Model
Insteekkaart
Interface (Bus) Type
PCI Express x4

Netwerkgebruik

Poorten
USB 3.0 x 4
Connectiviteit
Met bekabeling
Protocol voor gegevenskoppeling
USB, USB 2.0, SuperSpeed USB 3.0
Gegevensoverdrachtsnelheid
5 Gbps
Conformiteitsnormen
USB 1.1, USB 2.0, USB 3.0

Processor / Geheugen

Processor
NEC uPD720202

Uitbreiding / Aansluiting

Interfaces
4 x USB 3.0 - 9-pins USB type A (extern)

Diversen

Meegeleverde accessoires
Platte steun
Conformiteitsnormen
FCC, RoHS

Software / Systeemvereisten

Software meegeleverd
Stuurprogramma's & hulpprogramma's
Benodigd besturingssysteem
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Linux Kernel 2.6.31 of later, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32-/64-bits), Microsoft Windows Server 2003 (32-/64-bits), Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)

Afmetingen & gewicht

Breedte
6.7 cm
Diepte
12.1 cm
Hoogte
1.9 cm
Gewicht
90 g

Garantie van de fabrikant

Service & Support
Beperkte garantie - 2 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
5 - 85%

Informatie over Compatibiliteit

Ontworpen voor
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, ST103008U2C, ST4300U3C3, ST53004U1C, ST93007U2C, UNI251BMU33, USB3S2ESATA3

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
