Productnummer: 2293322

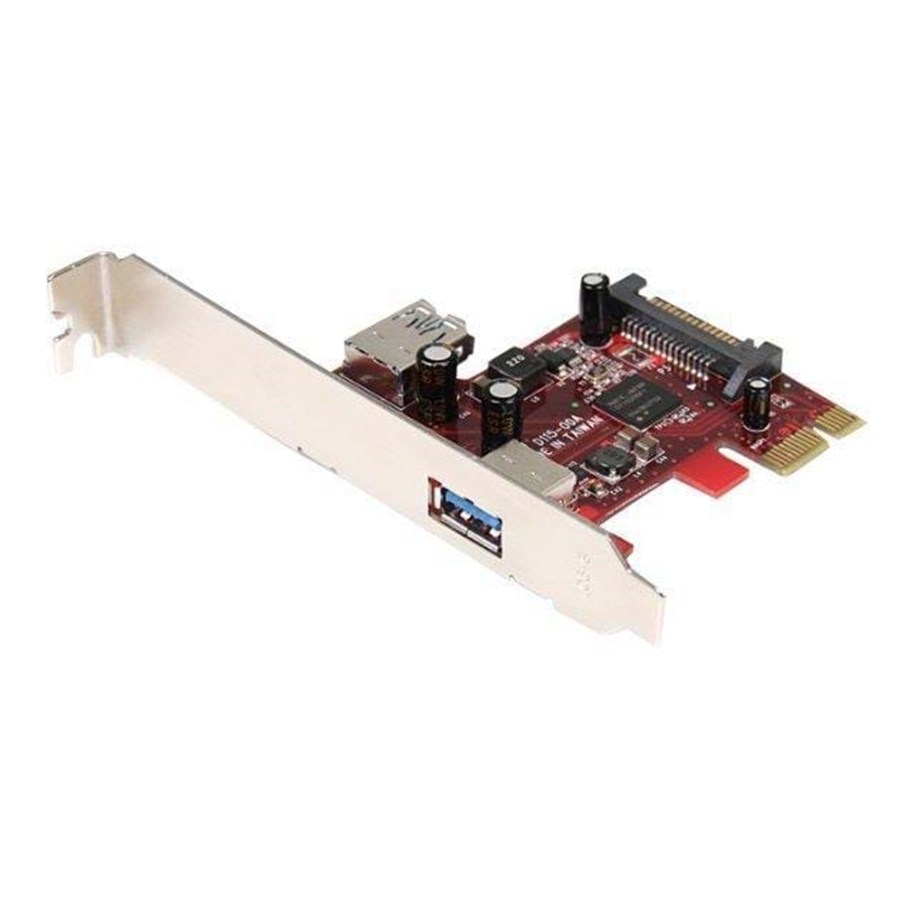

StarTech.com 2-poorts PCI Express SuperSpeed USB 3.0-kaart

1 Internal 1 External, USB adapter, PCI Express 2.0 low profile, USB, Hi-Speed USB, SuperSpeed USB 3.0, 2 ports

45,40 € 37,52 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 6 - 7 werkdagen levertijd

Add one internal and one external SuperSpeed USB 3.0 to your PC. Providing data transfer speeds up to 10x faster than USB 2.0, this PCI Express USB 3.0 card enables you to access your data and transfer files faster than ever, by adding one internal USB 3.0 port and one external USB 3.0 port to your PCI Express-equipped PC.Featuring a native NEC PCI Express host controller chipset, the new USB 3.0 standard supports transfer rates of up to 5Gbps, while still providing connectivity and support for the older USB 2.0 (480Mbps) and 1.1 (12Mbps) devices.In addition to providing considerably faster transfer rates, the PEXUSB3S11 USB 3.0 card draws power from the computer power supply through a SATA style power connector - a perfect solution for systems that have a limited number of LP4 connectors available.The card will supply 5V, 900mA to the USB 3​ .​ ​​​​​​​​​ ​​port allowing more external devices to operate without an additional power source.The inclusion of an internal ​USB ​​​​​​​connection provides added compatibility with future ​USB ​​storage solutions based on version ​USB ​​​​​​​-based storage solutions in future versions.

Producent
Productnummer
2293322
Model
PEXUSB3S11
EAN
0065030840040
Naar de website van de producent
Productbeschrijving
StarTech.com 2-poorts PCI Express SuperSpeed USB 3.0 kaart met UASP-ondersteuning - 1 intern, 1 extern - USB-adapter - PCIe 2.0 - 2 poorten
Type apparaat
USB-adapter
Model
Insteekkaart - laag profiel
Interface (Bus) Type
PCI Express 2.0
Afmetingen (BxDxH)
7.6 cm x 12.1 cm x 1.9 cm
Gewicht
40 g
Aantal poorten
2 poorten
Protocol voor gegevenskoppeling
USB, USB 2.0, USB 3.0
Gegevensoverdrachtsnelheid
5 Gbps
Conformiteitsnormen
USB 1.1, USB 2.0, USB 3.0
Systeemvereisten
Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2
Ontworpen voor
StarTech.com 4-Port Industrial USB 3.0 Hub, Rugged USB-A Expander

Algemeen

Type apparaat
USB-adapter - 2 poorten
Model
Insteekkaart - laag profiel
Interface (Bus) Type
PCI Express 2.0

Netwerkgebruik

Connectiviteit
Met bekabeling
Protocol voor gegevenskoppeling
USB, USB 2.0, SuperSpeed USB 3.0
Gegevensoverdrachtsnelheid
5 Gbps
Conformiteitsnormen
USB 1.1, USB 2.0, USB 3.0

Uitbreiding / Aansluiting

Interfaces
1 x USB 3.0 - 9-pins USB type A (extern)
1 x USB 3.0 - 9-pins USB type A (intern)
Uitwisselbare slots
1 x PCI Express 2.0

Diversen

Meegeleverde accessoires
Platte steun
Conformiteitsnormen
FCC, RoHS

Software / Systeemvereisten

Benodigd besturingssysteem
Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2

Afmetingen & gewicht

Breedte
7.6 cm
Diepte
12.1 cm
Hoogte
1.9 cm
Gewicht
40 g

Garantie van de fabrikant

Service & Support
Beperkte garantie - levenslang

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
0 - 85%

Informatie over Compatibiliteit

Ontworpen voor
StarTech.com 4-Port Industrial USB 3.0 Hub, Rugged USB-A Expander

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
