Productnummer: 3300689
DeLOCK - Storage Controller (RAID) - SATA 6Gb/s - PCIe 2.0 Mini Card
Storage controller (RAID), 2 Kanaal, SATA 6Gb/s, RAID RAID 0, 1, PCIe 2.0 Mini Card
35,66 €
29,47 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

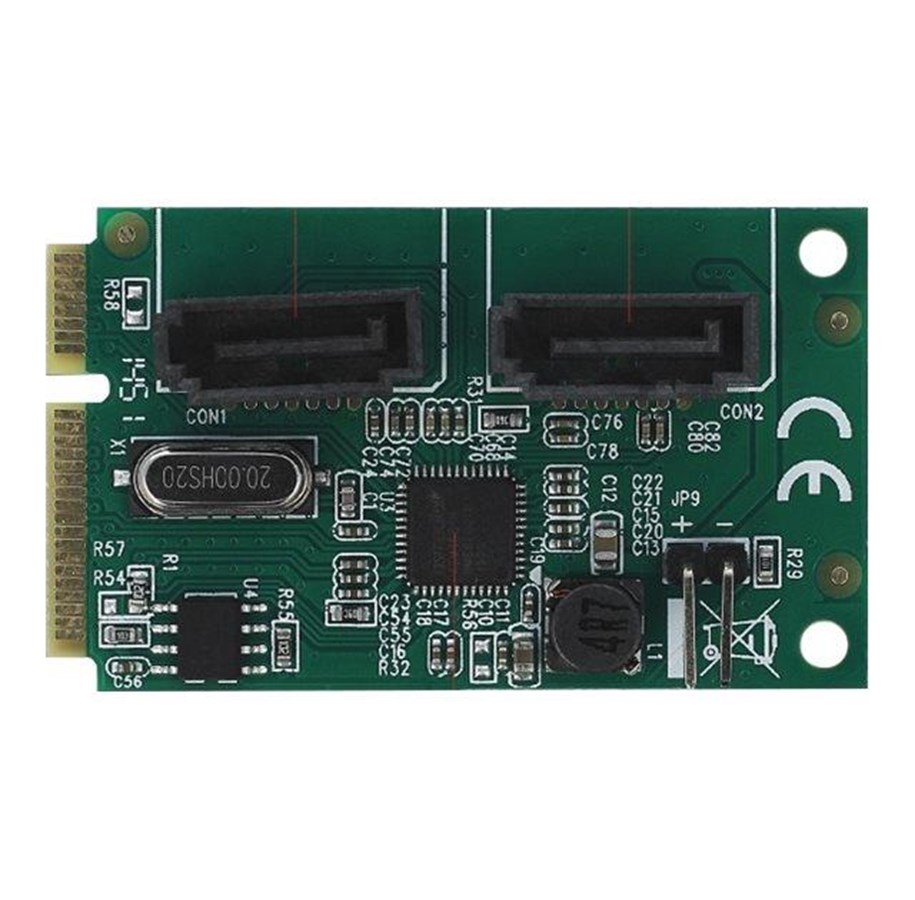

This converter by Delock expands the system by two SATA ports. When using more than one SATA port, there is the possibility to use different RAID modes.
Note
This product provides a chipset-based RAID function. Management and setting of the RAID mode is not possible via the operating system or BIOS. Different diagnostic software is not compatible with this solution.
Connectors: 1 x Mini PCIe male 2 x SATA 6 Gb/s 7 pin plug 1 x 2 pin pin header for LED
Chipset: Asmedia ASM1061R
Interface: PCI Express revision 2.0
Data transfer rate: SATA up to 6 Gb/s PCI Express up to 5 Gb/s
Supports RAID 0, 1, SPAN
Supports hard drive with Native Command Queue (NCQ) feature
Supports SATA Port Multiplier
Supports S.M.A.R.T.
Supports TRIM
Note
This product provides a chipset-based RAID function. Management and setting of the RAID mode is not possible via the operating system or BIOS. Different diagnostic software is not compatible with this solution.
Connectors: 1 x Mini PCIe male 2 x SATA 6 Gb/s 7 pin plug 1 x 2 pin pin header for LED
Chipset: Asmedia ASM1061R
Interface: PCI Express revision 2.0
Data transfer rate: SATA up to 6 Gb/s PCI Express up to 5 Gb/s
Supports RAID 0, 1, SPAN
Supports hard drive with Native Command Queue (NCQ) feature
Supports SATA Port Multiplier
Supports S.M.A.R.T.
Supports TRIM
Producent
Productnummer
3300689
Model
95264
EAN
4043619952649
Naar de website van de producent
Hostinterface
PCIe
Output interface
SATA
SATA herziening
3.0
Aantal Internal SATA ports
2
Intern
Ja
Land van herkomst
China
Bandbreedte
6 Gbit/s
S.M.A.R.T. support
Ja
TRIM support
Ja
NCQ (Native command queuing)
Ja
Soorten RAID
0, 1, SPAN
Ondersteunt Windows
Windows 10, Windows 7, Windows 8, Windows 8.1
Ondersteunt Linux
Ja
Aantal
1
Meegeleverde drivers
Ja
Gebruikershandleiding
Ja
Type verpakking
Doos
Code geharmoniseerd systeem (HS)
84733020
Poorten & interfaces
Hostinterface
PCIe
Output interface
SATA
SATA herziening
3.0
Aantal Internal SATA ports
2
Design
Intern
Ja
Land van herkomst
China
Kenmerken
Bandbreedte
6 Gbit/s
S.M.A.R.T. support
Ja
TRIM support
Ja
NCQ (Native command queuing)
Ja
Soorten RAID
0, 1, SPAN
Minimale systeemeisen
Ondersteunt Windows
Windows 10, Windows 7, Windows 8, Windows 8.1
Ondersteunt Linux
Ja
Verpakking
Aantal
1
Meegeleverde drivers
Ja
Gebruikershandleiding
Ja
Type verpakking
Doos
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84733020
