Productnummer: 3187321

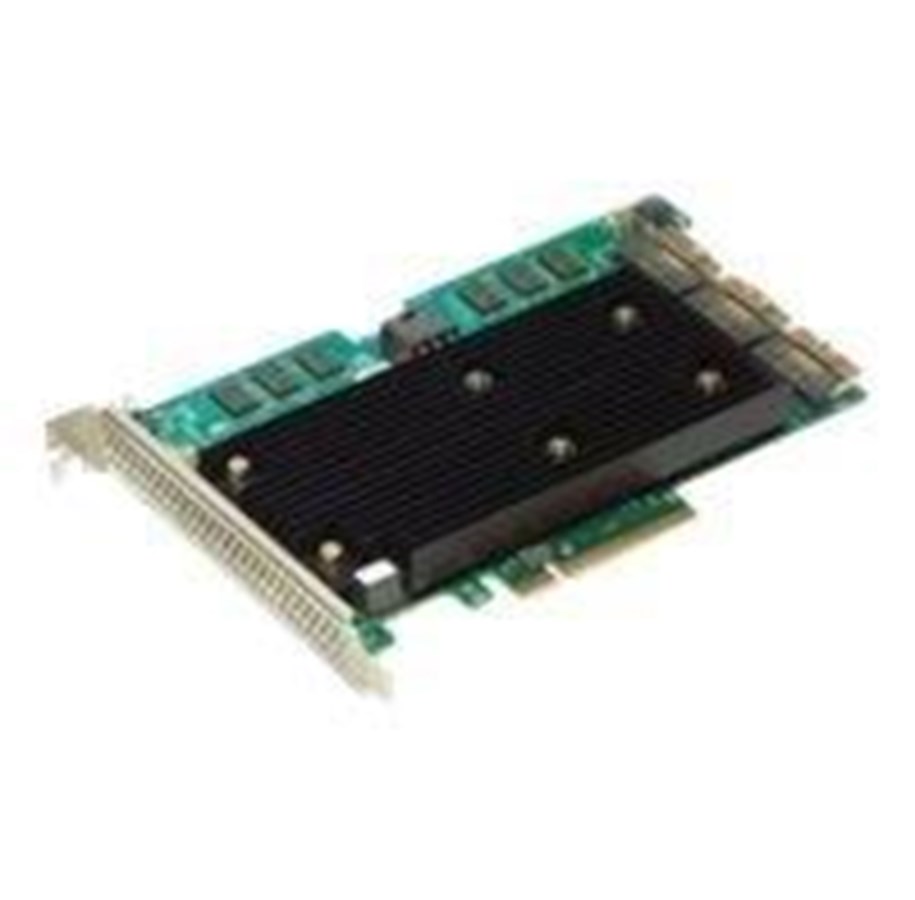

Broadcom MegaRAID 9670-24i
Storage controller (RAID), 24 Kanaal, SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe), RAID 0, 1, 10, 5, 50, 6, 60, PCIe 4.0 x8
2.432,37 €
2.010,22 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The Broadcom MegaRAID 9670-24i storage controller is engineered to meet the demands of high-performance storage systems. Offering robust reliability with an MTBF of 3,000,000 hours, it ensures continuous operation and system integrity. This plug-in card facilitates versatile connectivity options, supporting SATA 6 Gb/s, SAS 12 Gb/s, and PCIe 4.0 (NVMe) interfaces, making it suitable for a wide range of storage applications.Designed for efficiency, it consumes only 24 W of power during operation, balancing high performance with energy conservation. With support for multiple RAID levels, including 0, 1, 10, 5, 50, 6, and 60, it provides flexibility in data protection and performance optimization. Additionally, its compliance with numerous standards, including BSMI, CISPR 32, and RoHS, ensures it meets global regulatory requirements, making the Broadcom MegaRAID 9670-24i an ideal choice for building reliable, high-performance storage solutions.
Producent
Productnummer
3187321
Model
05-50123-00
EAN
830343007783
Naar de website van de producent
Ondersteunde opslagstationinterfaces
SAS, SATA
Hostinterface
PCI Express x8
PCI Express slots versie
4.0
Interne SAS-poorten
3
Soorten RAID
0, 1, 5, 6, 10, 50, 60
Overdrachtssnelheid
6 Gbit/s
Vormfactor
MD2
SSD-ondersteuning
Ja
S.M.A.R.T. support
Ja
Number of devices supported
240
Aantal kanalen
24 kanalen
Mean time between failures (MTBF)
3000000 uur
Certificering
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)
Stroomverbruik (typisch)
24 W
Certificaten van naleving
RoHS, WEEE
Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Ondersteunde server operating systems
SUSE Linux Enterprise Server
Bedrijfstemperatuur (T-T)
0 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Breedte
155,7 mm
Diepte
111,2 mm
Andere ondersteundende systemen
VMware vSphere ESXi
Poorten & interfaces
Ondersteunde opslagstationinterfaces
SAS, SATA
Hostinterface
PCI Express x8
PCI Express slots versie
4.0
Interne SAS-poorten
3
Prestatie
Soorten RAID
0, 1, 5, 6, 10, 50, 60
Overdrachtssnelheid
6 Gbit/s
Vormfactor
MD2
SSD-ondersteuning
Ja
S.M.A.R.T. support
Ja
Number of devices supported
240
Aantal kanalen
24 kanalen
Mean time between failures (MTBF)
3000000 uur
Certificering
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)
Energie
Stroomverbruik (typisch)
24 W
Technische details
Certificaten van naleving
RoHS, WEEE
Minimale systeemeisen
Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Ondersteunde server operating systems
SUSE Linux Enterprise Server
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Gewicht en omvang
Breedte
155,7 mm
Diepte
111,2 mm
Overige specificaties
Andere ondersteundende systemen
VMware vSphere ESXi
