Productnummer: 3183094

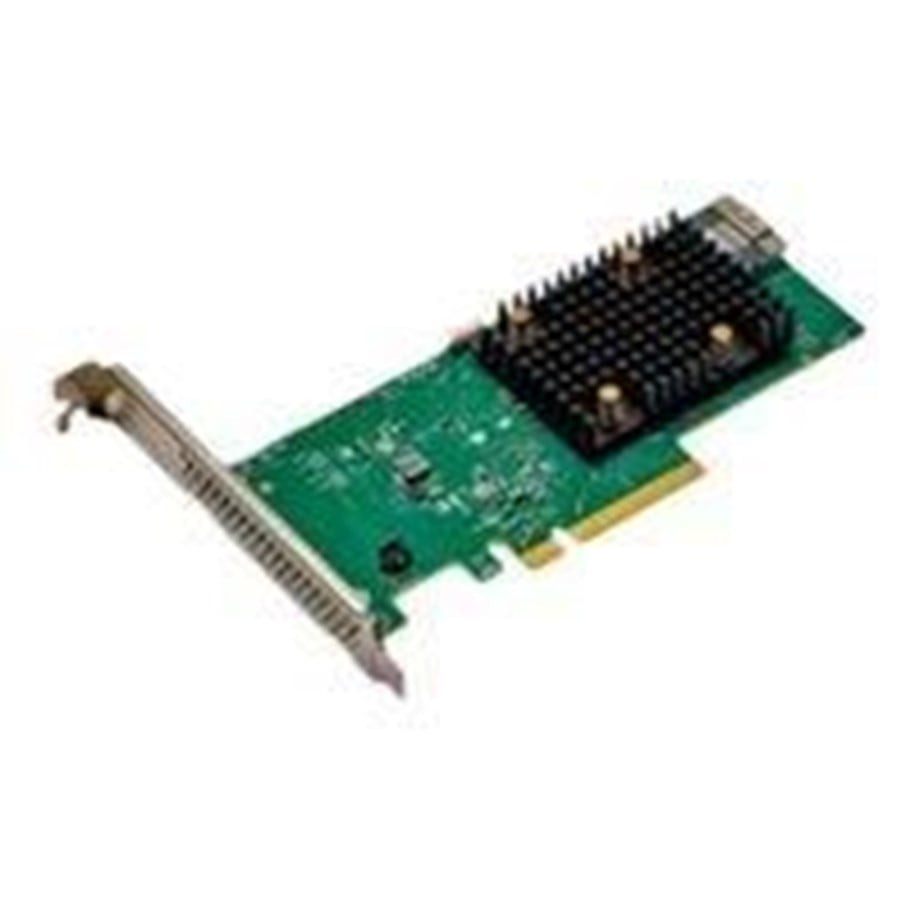

Broadcom MegaRAID 9540-8i
Storage controller (RAID), 8 Kanaal, SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe), laag profiel, RAID 0, 1, 10, JBOD, PCIe 4.0 x8
322,59 €
266,60 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
The Broadcom MegaRAID 9540-8i storage controller is engineered to meet the demands of high-performance, multi-device storage systems. It offers a robust solution for managing disk arrays with support for RAID 0, 1, and 10 configurations, optimizing both performance and data protection. Designed for versatility, it accommodates a range of interfaces including SATA 6 Gb/s, SAS 12 Gb/s, and PCIe 4.0 (NVMe), making it a perfect fit for diverse storage environments.With a focus on reliability, the Broadcom MegaRAID 9540-8i boasts an impressive mean time between failures (MTBF) of 3,000,000 hours. This, combined with its compliance to stringent standards such as RoHS and WEEE, ensures a durable and environmentally responsible storage solution. Furthermore, its efficient power consumption of just 6 W not only maximizes system performance but also contributes to lower energy costs, making it an ideal choice for energy-conscious operations.
Producent
Productnummer
3183094
Model
05-50134-03
EAN
0830343007677
Naar de website van de producent
Productbeschrijving
Broadcom MegaRAID 9540-8i - storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8
Type apparaat
Storage controller (RAID) - insteekkaart - laag profiel
Bustype
PCIe 4.0 x8
Interface
SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)
Ondersteunde apparaten
Schijfmatrix (RAID)
Aantal kanalen
8
Max. aantal opslagapparaten
240
RAID-niveau
RAID 0, RAID 1, RAID 10, JBOD
Systeemvereisten
FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi)
Afmetingen (BxDxH)
15.565 cm x 6.89 cm
Algemeen
Type apparaat
Storage controller (RAID) - insteekkaart - laag profiel
Host Bus
PCIe 4.0 x8
Controller voor opslag
Interface
SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)
Ondersteunde apparaten
Schijfmatrix (RAID)
Aantal kanalen
8
Max. aantal opslagapparaten
240
RAID-niveau
RAID 0, RAID 1, RAID 10, JBOD
Uitbreiding / Aansluiting
Interfaces
1 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (intern)
Diversen
Voorzieningen
Tri-Mode SerDes-technologie
MTBF (gemiddelde tijd tussen twee storingen)
3,000,000 uur
Conformiteitsnormen
FCC Klasse B-gecertifieerd, EN 60950, EN55022, IEC 60950, EN55024, UL 60950, ICES-003 Class B, RoHS, WEEE, FCC CFR47 Part 15 B, VCCI V-3, AS/NZS CISPR 22, CNS 13438
Stroom
Energieverbruik tijdens gebruik
6 Watt
Software / Systeemvereisten
Benodigd besturingssysteem
FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi)
Garantie van de fabrikant
Service & Support
Beperkte garantie - 3 jaar
Technische ondersteuning - 3 jaar
Technische ondersteuning - 3 jaar
Afmetingen & gewicht
Diepte
15.565 cm
Hoogte
6.89 cm
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
55 °C
Luchtvochtigheidsgraad bij gebruik
5 - 90% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
