Productnummer: 3176760

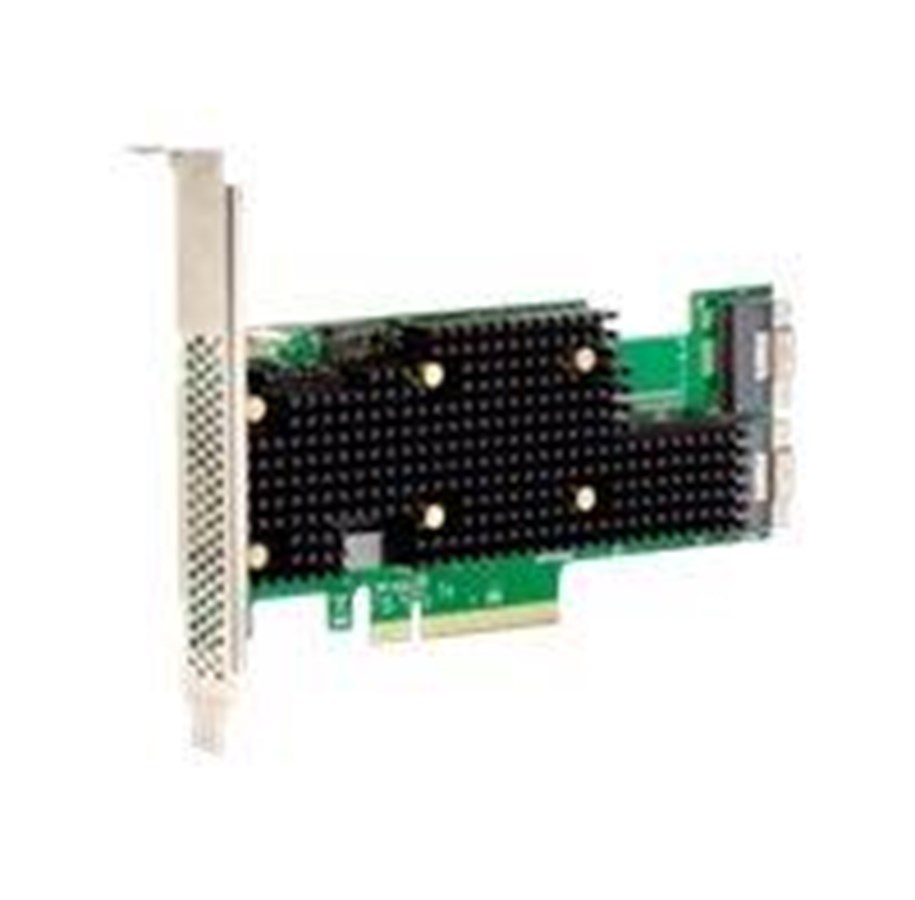

Broadcom HBA 9600-16i
Controller voor opslag, 16 Kanaal, SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe), PCIe 4.0 x8
999,97 €
826,42 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The Broadcom HBA 9600-16i storage adapter is engineered to meet the rigorous demands of storage environments, offering a blend of performance, reliability, and versatility. With support for SATA 6 Gb/s, SAS 24 Gb/s, and PCIe 4.0 (NVMe), it ensures high-speed data transfer and efficient storage operations. The adapter features a PCIe 4.0 x8 host bus, providing high performance and compatibility with a wide range of systems.Designed for durability, the HBA 9600-16i has an impressive mean time between failures (MTBF) of 5,000,000 hours, making it a reliable choice for critical storage applications. It also offers flexible connectivity options with two internal Slim SAS connectors, accommodating various storage configurations. Compliance with numerous standards, including RoHS, FCC Class B, and more, ensures broad compatibility and adherence to regulatory requirements. Whether for enterprise storage systems or high-performance computing environments, the HBA 9600-16i is a compelling solution for those seeking performance and reliability.
Producent
Productnummer
3176760
Model
05-50111-00
Naar de website van de producent
Productbeschrijving
Broadcom HBA 9600-16i - controller voor opslag - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8
Type apparaat
Controller voor opslag - insteekkaart
Bustype
PCIe 4.0 x8
Interface
SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
Aantal kanalen
16
Systeemvereisten
FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi)
Afmetingen (BxDxH)
15.565 cm x 6.89 cm
Algemeen
Type apparaat
Controller voor opslag - insteekkaart
Host Bus
PCIe 4.0 x8
Controller voor opslag
Interface
SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
Aantal kanalen
16
Uitbreiding / Aansluiting
Interfaces
2 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (intern)
Diversen
Meegeleverde accessoires
Platte steun
MTBF (gemiddelde tijd tussen twee storingen)
5,000,000 uur
Conformiteitsnormen
FCC Klasse B-gecertifieerd, CISPR 32, CISPR 32:2015 Class A, EMC, ICES, EN55024, EN 55032, EN 55035, EN 55032:2015+AC:2016 Class A, EN 55035:2017/A11:2020, KN32, KN35, BSMI, CNS 13438, CNS 15663, UL, VCCI-CISPR 32:2016, CMIM, RoHS, WEEE
Stroom
Energieverbruik tijdens gebruik
15 Watt
Software / Systeemvereisten
Benodigd besturingssysteem
FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi)
Garantie van de fabrikant
Service & Support
Beperkte garantie - 3 jaar
Technische ondersteuning - 3 jaar
Technische ondersteuning - 3 jaar
Afmetingen & gewicht
Diepte
15.565 cm
Hoogte
6.89 cm
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
55 °C
Luchtvochtigheidsgraad bij gebruik
5 - 90% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
