Productnummer: 2629876

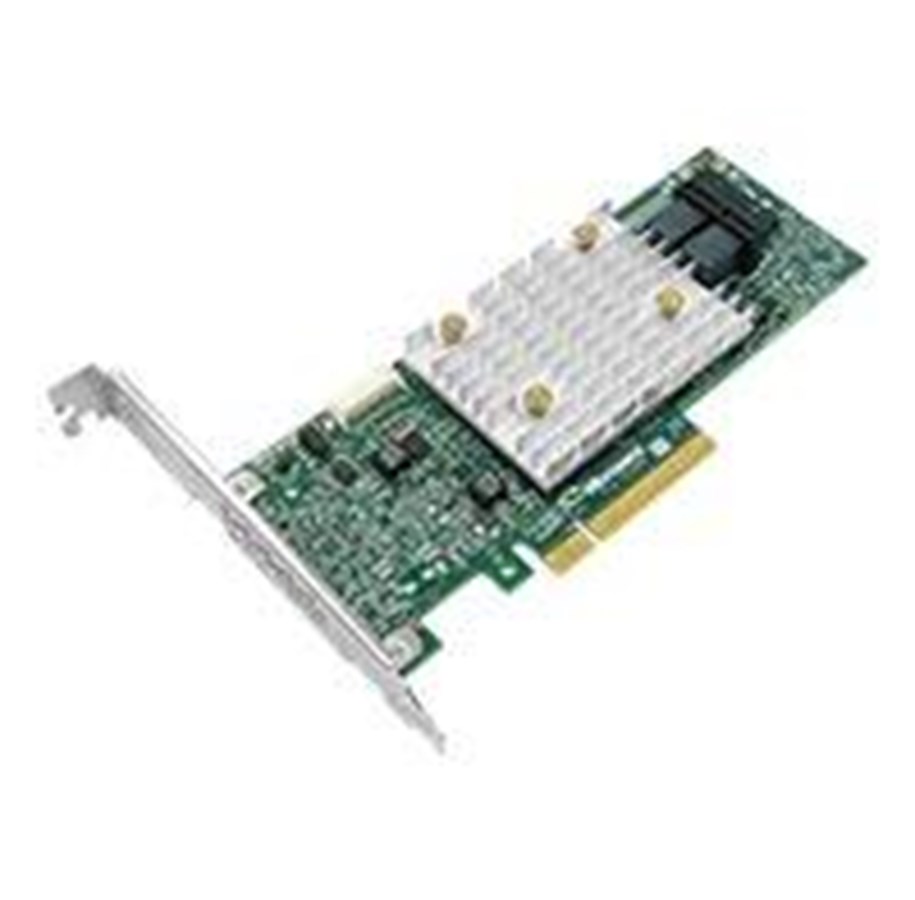

Adaptec Microsemi HBA 1100 8i
Storage controller, 8 Channel, SATA 6Gb/s / SAS 12Gb/s low profile, 12 Gbit/s, PCIe 3.0 x8
350,13 €
289,36 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd
Today's data centers and enterprises need storage solutions that can keep pace with their rapid data expansion. The HBA 1100 is a product in the smart storage solutions family, forged through the convergence of Microchip's SAS/SATA protocol controller expertise. The HBA 1100 series offers a large number of density options in a low-profile form factor. It delivers the smart connectivity that businesses are looking for, with high resiliency, low power, and the performance required to unlock the capabilities of flash media.
Producent
Productnummer
2629876
Model
2293200-R
EAN
0760884157756
Naar de website van de producent
Productbeschrijving
Microchip Adaptec HBA 1100 8i - controller voor opslag - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
Type apparaat
Controller voor opslag - insteekkaart - laag profiel
Bustype
PCIe 3.0 x8
Interface
SATA 6Gb/s / SAS 12Gb/s
Gegevensoverdrachtsnelheid
12 Gbit/s
Ondersteunde apparaten
Vaste schijf, tape-station, vast station
Aantal kanalen
8
Max. aantal opslagapparaten
256
Systeemvereisten
Red Hat Linux, SuSe Linux, Microsoft Windows, CentOS, Ubuntu, VMware ESXi
Afmetingen (BxDxH)
16.7 cm x 6.4 cm
Algemeen
Type apparaat
Controller voor opslag - insteekkaart - laag profiel
Host Bus
PCIe 3.0 x8
Controller voor opslag
Interface
SATA 6Gb/s / SAS 12Gb/s
Gegevensoverdrachtsnelheid
12 Gbit/s
Ondersteunde apparaten
Vaste schijf, tape-station, vast station
Aantal kanalen
8
Max. aantal opslagapparaten
256
Uitbreiding / Aansluiting
Interfaces
2 x SATA 6Gb/s / SAS 12Gb/s - 4x Mini SAS HD (SFF-8643) (intern)
Diversen
Meegeleverde accessoires
Platte steun
Voorzieningen
Native Command Queuing (NCQ), S.M.A.R.T. ondersteuning
MTBF (gemiddelde tijd tussen twee storingen)
1,360,000 uur
Conformiteitsnormen
UL, VCCI, C-Tick, FCC, RoHS, KCC
Software / Systeemvereisten
Benodigd besturingssysteem
Red Hat Linux, SuSe Linux, Microsoft Windows, CentOS, Ubuntu, VMware ESXi
Garantie van de fabrikant
Service & Support
Beperkte garantie - 3 jaar
Afmetingen & gewicht
Diepte
16.7 cm
Hoogte
6.4 cm
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
55 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
