AXAGON 6 × Internal SATA 6G Port PCIe Controller
AXAGON PCES-SA6 PCI-Express controller extends your desktop PC with six high-speed SATA III ports supporting up to 6 Gbit/s. Equipped with an ASMedia chipset, it supports Hot-Plug, NCQ, TRIM, and Port Multiplier. Includes standard and low-profile brackets for easy installation.
The AXAGON PCES-SA6 PCI-Express controller extends your desktop PC with six high-speed SATA III ports with a transmission rate up to 6 Gbit/s.
The card, equipped with an ASMedia chipset, supports not only the SATA 3.0 specification but also other SATA technologies such as Hot-Plug, Native Command Queue (NCQ), TRIM, and Port Multiplier. Easy installation is possible without the need to install drivers on most operating systems.

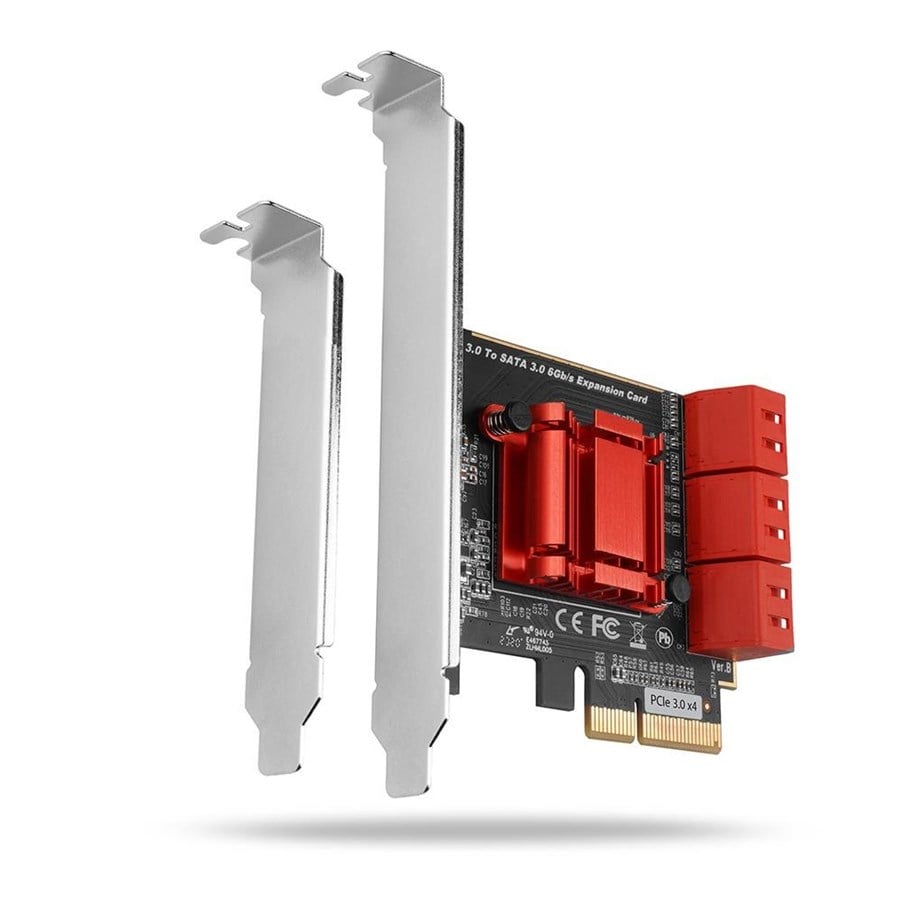

Included low-profile brackets allow controller installation into standard and low-profile PC cases.
Input:- PCI-Express 3.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.0 / 2.1.
- Number of 2-Lane (x2) lines, compatible with x4 / x8 / x16 PCIe slots.
- Bandwidth of 2-Lane PCI-Express 3.0 bus: 2 GB/s.
- 6× independent Serial ATA ports, SATA III 6G standard.
- 6× internal 7-pin SATA data connectors.
- Supports all SATA I / SATA II / SATA III optical drives, SSDs and hard disks of all capacities.
- Full Plug and Play support.
- Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates up to 6 Gbit/s (600 MB/s).
- Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates up to 3 Gbit/s (300 MB/s).
- Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates up to 1.5 Gbit/s (150 MB/s).
- Compliant with the ATA AHCI (Advanced Host Controller Interface) specification revision 1.4.
- Fully supports Hot Plug connecting and disconnecting of SATA devices while running.
- Supports Native Command Queuing (NCQ).
- TRIM feature support for SSD disks.
- Supports Port Multiplier Command Based Switching.
- The ASMedia ASM1166 chipset is used.
- MS Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 / 2022 and later (all 32- and 64-bit versions supported), Linux with kernel 2.6.x and later.
- PCI-Express SATA controller,
- Low-profile brackets,
- Printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
- Packed in a cardboard box.
