AXAGON 4 × Internal SATA 6G Port PCIe Controller

The AXAGON PCES-SA4X4 PCI-Express controller extends your desktop PC with four SATA III ports with a transmission rate of up to 6 Gbit/s.

The card, equipped with the ASMedia chipset, not only supports the SATA 3.0 specification but also Hot-Plug, Native Command Queue (NCQ), TRIM, and Port Multiplier. Easy installation without drivers on most OS.

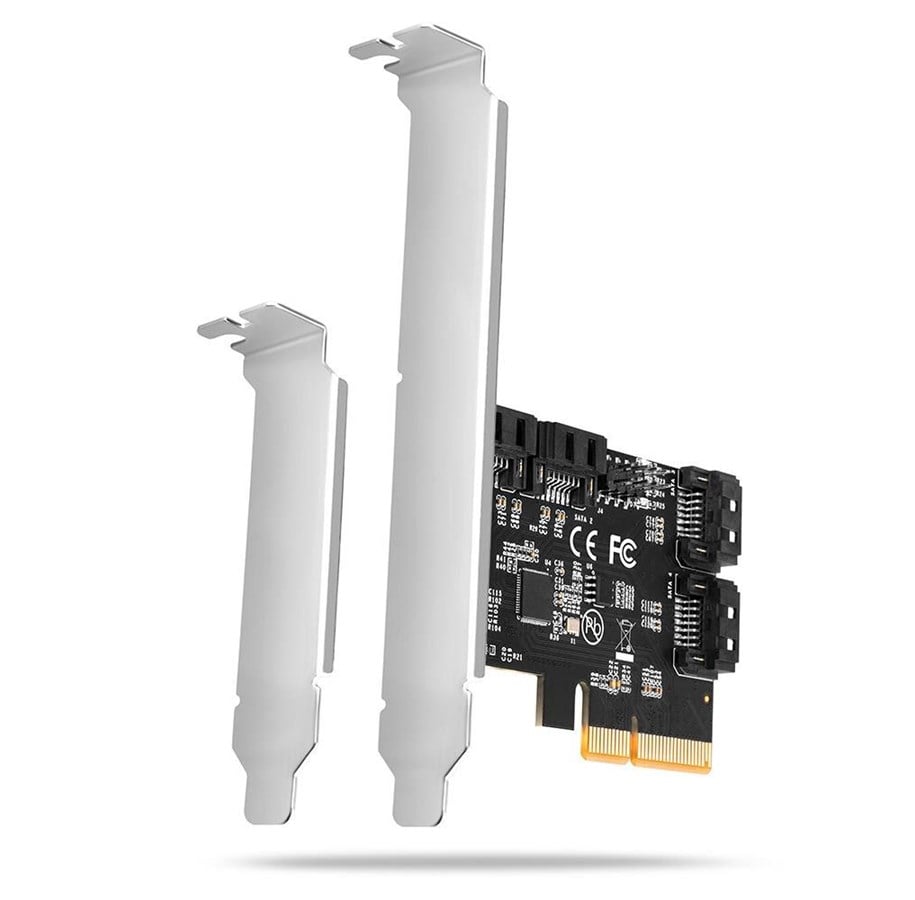

Included low-profile bracket allows installation in standard and low-profile PC cases.

• PCI-Express 3.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.0 / 2.1.
• 2-Lane (×2) lines, compatible with x4 / x8 / x16 PCIe slots.
• Bandwidth of 2-Lane PCI-Express 3.0 bus: 4 GB/s bidirectional.

• 4× independent Serial ATA ports, SATA III 6 Gbit/s standard.
• 4× internal 7-pin SATA data connectors.
• Supports all SATA I / II / III drives, SSDs, and HDDs of all capacities.

• Full Plug and Play support.
• Compliant with SATA 3.0 (6 Gbit/s / 600 MB/s), SATA 2.0 (3 Gbit/s / 300 MB/s), SATA 1.0 (1.5 Gbit/s / 150 MB/s) specifications.
• Supports Hot Plug, NCQ, TRIM, Port Multiplier, and boot from connected disk.
• 4× LED disk activity indicators and four 2-pin sockets for case HDD LEDs.
• ASMedia ASM1164 chipset used.

• Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 / 2022 and later, Linux kernel 2.6.x and above.

• PCI-Express controller with standard bracket.
• Low-profile bracket.
• Multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA.
• Packed in a cardboard box.
