Productnummer: 2762440

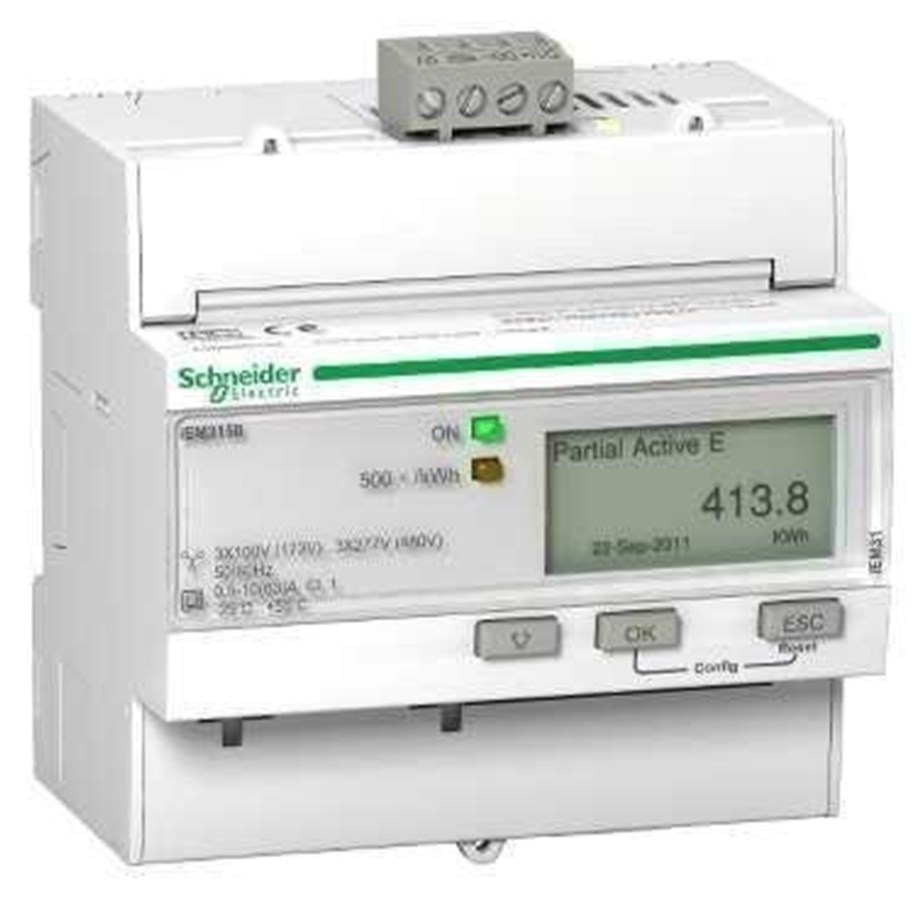

Schneider Electric Triphase kwh meter 63a modbus
3 phase Kilowatt-hour meter for DIN rail mounting. with counter and Modbus communications.This model provides a direct measurement of I, D, P, Q, S, and E up to 63A. without CTs or additional power supply.iEM3000 series offers a cost-effective and competi
249,60 €
206,28 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
3 phase Kilowatt-hour meter for DIN rail mounting. with counter and Modbus communications.This model provides a direct measurement of I, D, P, Q, S, and E up to 63A. without CTs or additional power supply.iEM3000 series offers a cost-effective and competitive range of 3 phase DIN rail meters,ideal for billing and cost allocation. Combined with communication systems such as Smart Link, it becomes easy to measure customer's energy consumption.
Producent
Productnummer
2762440
Model
A9MEM3150
EAN
3606480481512
Naar de website van de producent
Soort
Elektronisch
Kleur van het product
Wit
Eenheid van de maatregel
A
Type beeldscherm
LCD
Ondersteunde protocollen
Modbus RTU 9.6, 19.2, 38.4 kbauds
Certificering
UL
EAC
CE - IEC 61010
CE - IEC 61326-1
CULus - ANSI C12.20
RCM - NMI M 6-1
CE - EN 61557-12
CULus - UL 61010
Ingangsspanning
100 - 480 V
Nominale netspanning
63 A
AC-ingangsfrequentie
50 - 60 Hz
Bedrijfstemperatuur (T-T)
-25 - 60 °C
Breedte
90 mm
Diepte
69 mm
Hoogte
95 mm
Kenmerken
Soort
Elektronisch
Kleur van het product
Wit
Eenheid van de maatregel
A
Type beeldscherm
LCD
Ondersteunde protocollen
Modbus RTU 9.6, 19.2, 38.4 kbauds
Certificering
UL
EAC
CE - IEC 61010
CE - IEC 61326-1
CULus - ANSI C12.20
RCM - NMI M 6-1
CE - EN 61557-12
CULus - UL 61010
Energie
Ingangsspanning
100 - 480 V
Nominale netspanning
63 A
AC-ingangsfrequentie
50 - 60 Hz
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-25 - 60 °C
Gewicht en omvang
Breedte
90 mm
Diepte
69 mm
Hoogte
95 mm
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
