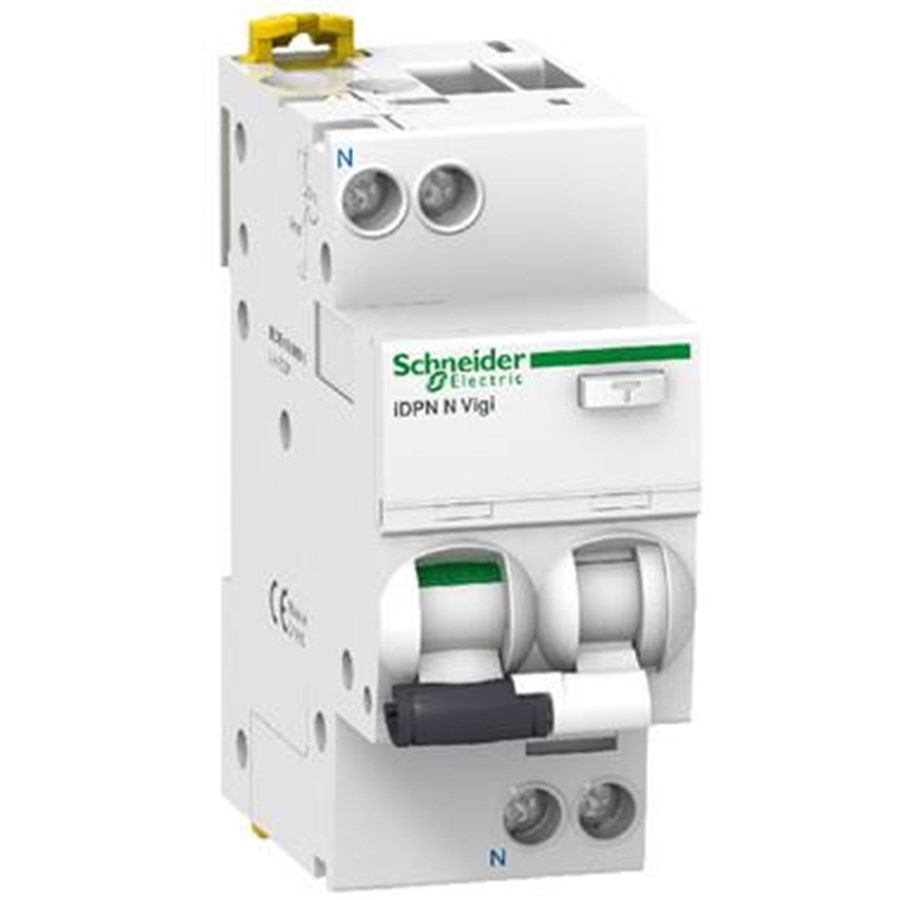

Schneider Electric Idpn n vigi 10a c 10ma a-type residual c

Circuit breaker 10 A C-characteristic 10mA class A 6kA, 230 V AC B:36 mm Product description: iDPNN circuit breaker: The Vigi residual current device provides complete protection for the final circuit (against overcurrent and insulation faults): -- personal protection of users against electric shock by direct contact (=30 mA), -- personal protection of users against electric shock by indirect contact (300 mA), -- protection of installations against fire hazards (300 mA). The Si range is designed to maintain a network with optimal safety and operational continuity in installations that are disturbed by: -- extreme atmospheric conditions, -- harmonic generating loads, -- transient operating currents. Technical specifications: Rated current (A): 10 Trip curve: C Number of poles: 1P+N Fault tripping current (mA): 10
