Productnummer: 2764832

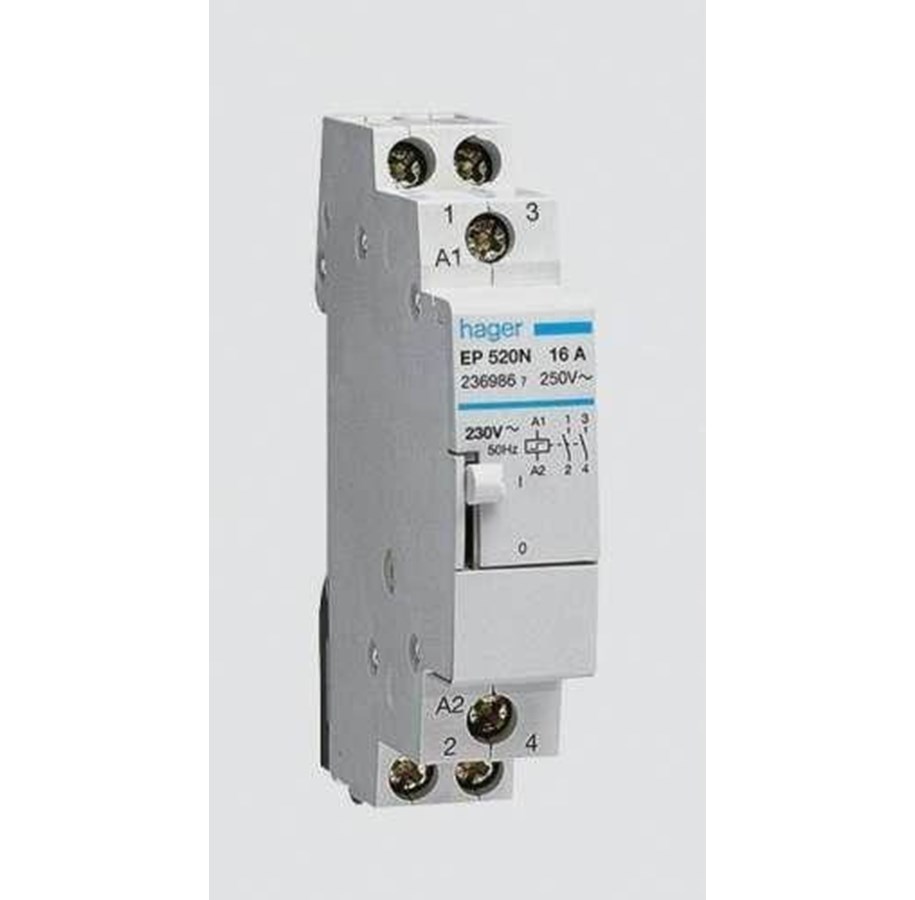

Hager Vergrendelrelais 16a 230v 2no
Latching relay 16A 230V 2NORated current In: 16A AC1Rated Voltage Un: 230 / 400VACVoltage Voltage Un: 230VAC / 110VDCPulse Length: min. 50ms and max 1 hourPower consumption v. AC operation: 24VATouch protection: IP20Connection: 0.75 - 10mm2Dimensions: 1 module of 17.5mmStandard: EN 60669-1 / 2-2Note: Operating pressure must be selected in h.t. Attraction consumption, as well as lead length and dimension must be observed. See technical data in catalog.
39,33 €
32,50 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
Contact relay 16A 250V 2NO SP 230V Product description: Contact relay EPN520 16A 250V 2NO SP.230Used for impulse control of lighting installationsNumber of poles: 2 normally openRated current In: 16A AC1Rated voltage Un: 230/400VACCoil voltage Un: 230VAC /110VDCPulse length: min.50ms and max.1 hour Attraction consumption at AC operation :24VA Touch protection :IP20Connection :0.75-10mm2 Dimensions :1 module at17,5mmStandard :EN60669-1/2-2Note:The operating pressure must be selected according to the attraction consumption, and the wire length and size must be observed.See technical data in catalog.
Producent
Productnummer
2764832
Model
EPN520
EAN
3250612369539
AC-ingangsspanning
250 V
Certificaten van naleving
RoHS
Aantal
1
Energie
AC-ingangsspanning
250 V
Technische details
Certificaten van naleving
RoHS
Inhoud van de verpakking
Aantal
1
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
