Productnummer: 2892493

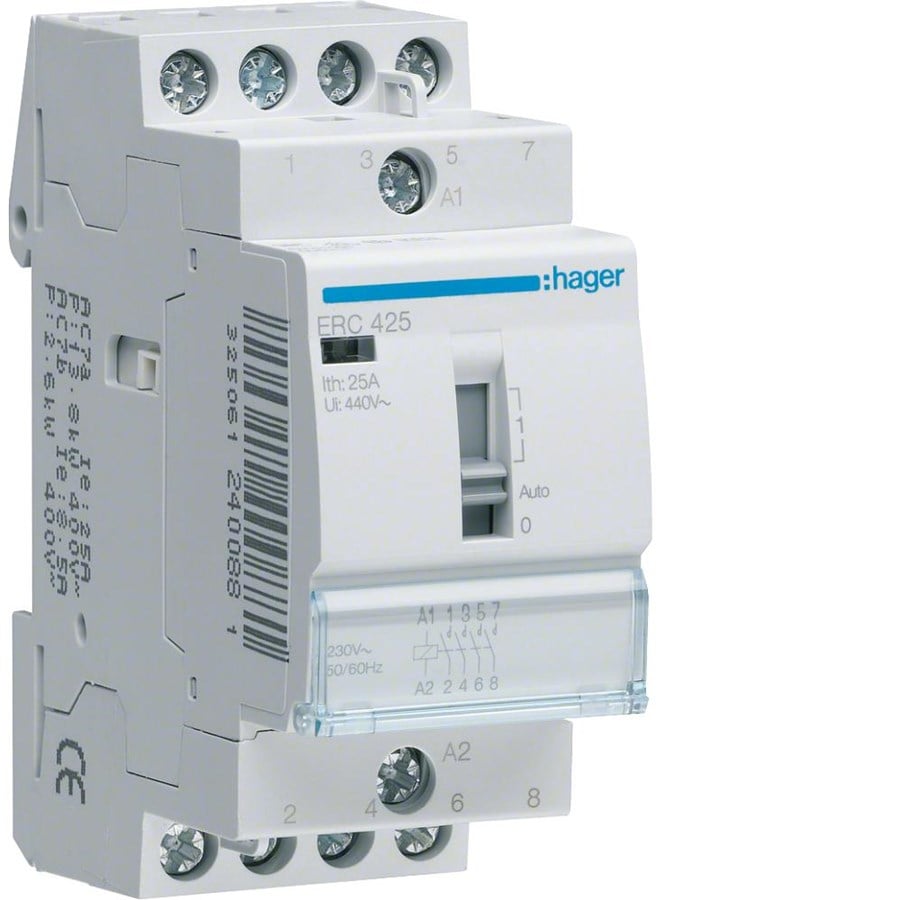

Hager Relay 25a 4no 230v 2m
Relay 25A 4NO 230V For control of circuitsA control device with 3 positions on the frontRated operating voltage AC: 400V Frequency: 50/60Hz Operating temperature: -10 to 50 ° C Connection cross-section with flexible conductor: 1 - 6mm 2 Cross-sectional area for rigid conductors: 1 - 10mm 2 A lifetime mechanical operations: 1000000 Equipment life, electrical operations: 30000 Total power loss at rated power: 1.6 W Number of modules: 2
41,76 €
34,51 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
Relay 25A 4 NO contacts 230V 2M Product description: Relay with a capacity of 25A and four normally open contacts, designed for controlling automation systems in electrical installations in connection with pressure and control buttons. It can be overridden by a switch on the front panel (manual-0-automatic). Rated voltage: 400V, frequency:50/60Hz. Coil voltage:230V. Operating category : AC1 Number of connections :1,000,000 Operating temperature range:-10 to +50°C Connection type:solid wire (1-10mm²) / flexible wire (1-6mm²) Width:2 modules at17.5mm each
Producent
Productnummer
2892493
Model
ERC425
EAN
3250612400881
Naar de website van de producent
AC-ingangsspanning
400 V
Certificaten van naleving
RoHS
Aantal
1
Energie
AC-ingangsspanning
400 V
Technische details
Certificaten van naleving
RoHS
Inhoud van de verpakking
Aantal
1
