Productnummer: 2764831

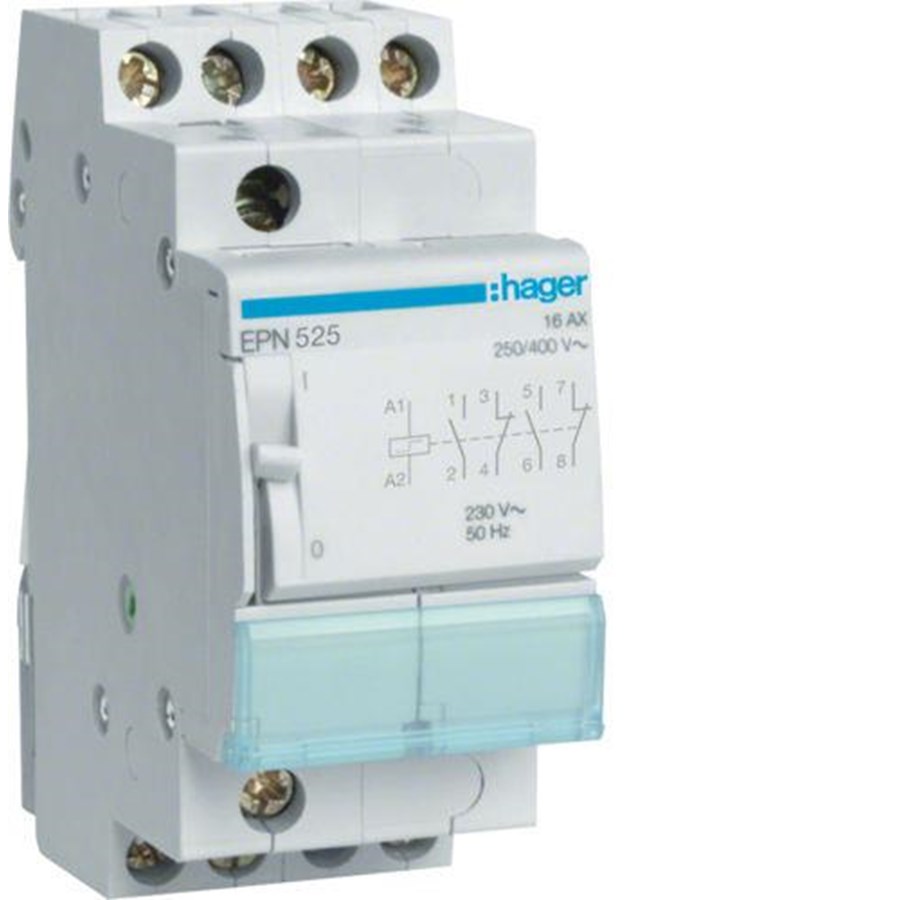

Hager Latching relay 2nc+2no 230v
Latching relay 2NC+2NO 230VTechnical Characteristics:Rated operational voltage Ue: 250 VFrequency: 50/60 HzVoltage Rated insulation voltage: 400 VDC control voltage: 110 VCommand voltage AC: 230 VElectric currentQuiescent current: 6 mARating: 16 APowerInrush power absorbed: 55 VATotal power loss under IN: 2,4 WEnduranceElectrical durability at nominal load in AC21in operating cycles: 150000Number of mechanical operations: 500000
90,37 €
74,69 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
Kip relay 16A 250V 2NO+2NC coil 230V Product description: Kip relay 230V 2NO+2NC, double pole: two normally open and two normally closed contacts Rated current In: 16A AC1 Rated voltage Un: 230/400VAC Coil voltage Un: 230VAC/110VDC Pulse length: minimum of 50ms and maximum of one hour Attraction consumption at AC operation:48VA Touch protection rating IP20 Connection size range from0.75 to10mm² Dimensions :two modules at17.5mm each Standard EN60669-1/2-2 Note:The operating pressure must be selected according to the attraction consumption, and the wire length and dimensions must be observed. See technical data in catalog.
Producent
Productnummer
2764831
Model
EP525N
EAN
3250612369485
AC-ingangsspanning
250 V
Certificaten van naleving
RoHS
Aantal
1
Energie
AC-ingangsspanning
250 V
Technische details
Certificaten van naleving
RoHS
Inhoud van de verpakking
Aantal
1
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
