Productnummer: 2764761

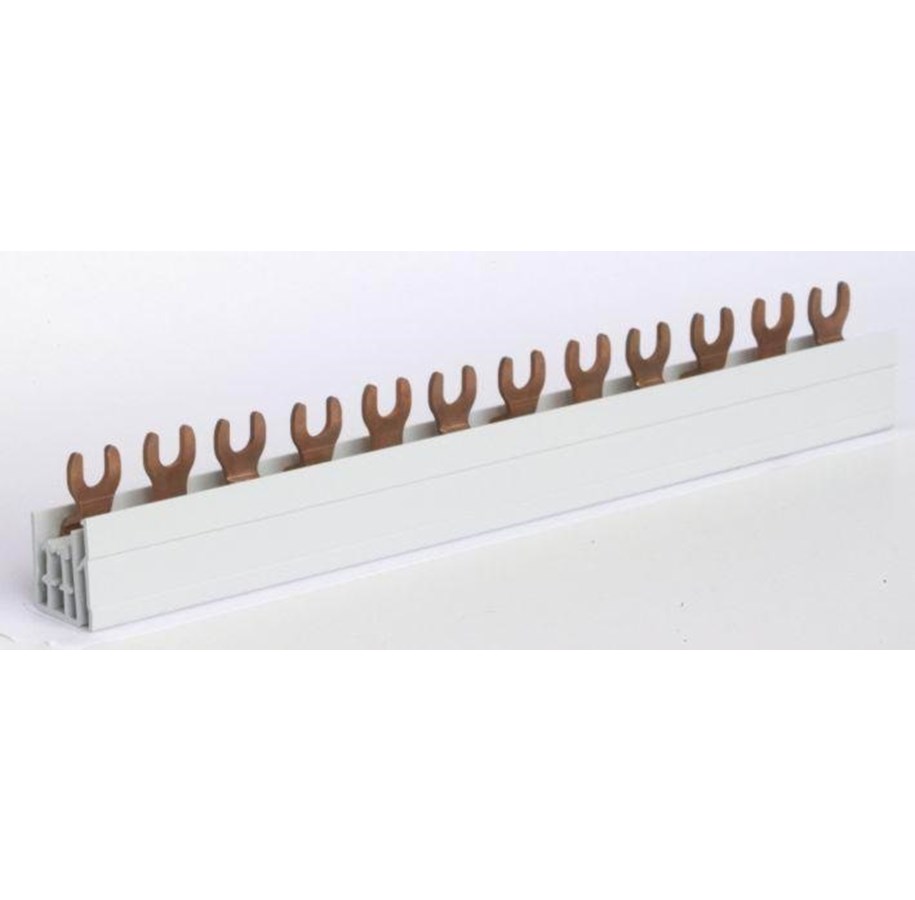

Hager Insulated busbar 3x(p+n) 80a fork 16mm2
Hager insulated busbar 6X(1P+N) L1+L2+L3+Nl 12MNumber of poles: 4PMax operating voltage: 400 VConnection cross-sect. rigid cable: 16mm2Type of connection: with screw / quick connectEuropean directive RoHs: voluntary complianceEuropean directive WEEE: concerned
20,64 €
17,06 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
Phase rail fork 4p 12M 16mm2 Product description: Hager loop rail for 6 circuit breakers, 2-pole, L1+N, L2+N, L3+N for connection at the bottom of circuit breakers and residual current devices. Surge voltage resistant >4.5kV Operating voltage Un:230/400V50Hz Cross-section:16mm2 Load current In:80A - load dependent on connection point Short-circuit withstand capacity:<25ka Ambient temperature:35 oC Copper material:E-Cu F25 Plastic material:heat-resistant up to 80oC Insulation coordination:Safety III Pollution degree :2 Creepage distance:>4 mm Standard:DIN57 606/VDE0606
