Productnummer: 2748800

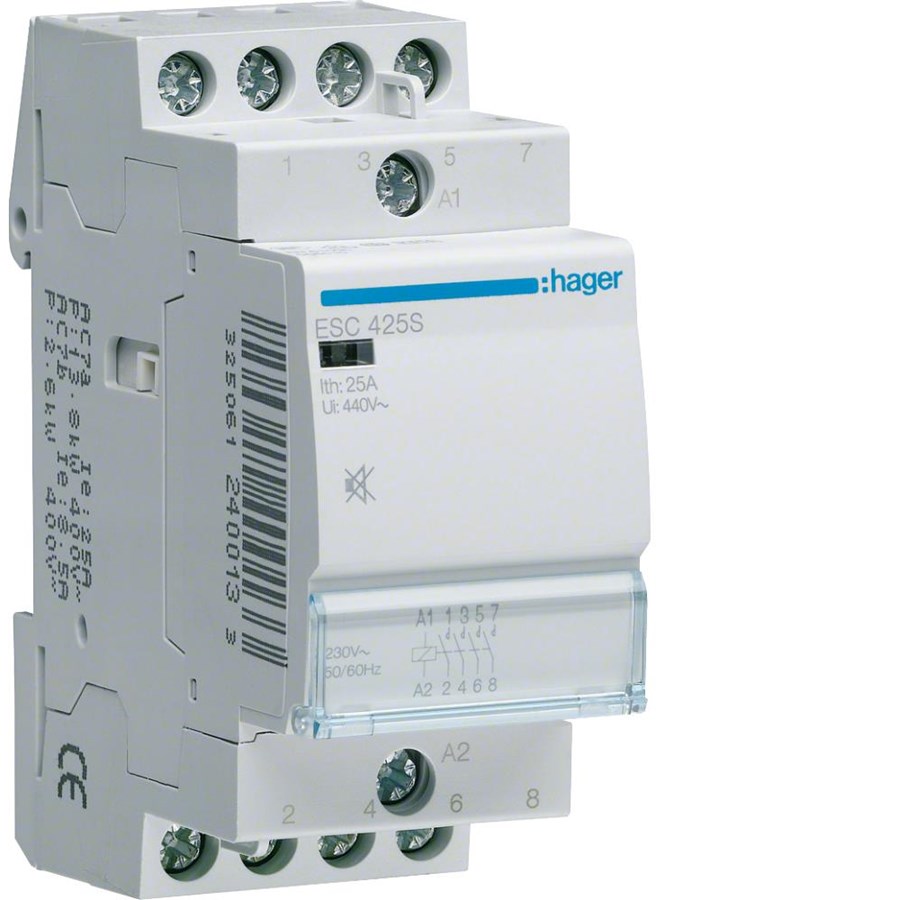

Hager Humfree contactor 25a 4no 230v 2m

Humfree contactor 25A 4NO 230V Humfree for the control of circuitsGuarenteed silence during the entire life of the productCan be equipped with auxiliary contact and sealig capsRated operational voltage: 400 V Frequency: 50/60Hz Type of connection: With screw Operating temperature: -10 to 50 ° C Storage temperature: -40 to 80 ° C Connection cross-sect rigid cable: 1 / 10mm2 Connection cross-sect. flexible cable: 1 / 6mm2 To reduce the mutual heating when using several contactorsit is recommended to use the LZ060 spacerNumber of modules: 2According to standard: EN 61095

Lees meer
50,64 € 41,85 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

Contactor 25A 4 NO 230VAC 2M noiselessProduct description: Contactor 25A with four normally open contacts, suitable for controlling and switching lighting systems and heating in residential and office environments where noiseless operation is desired. Rated voltage: 400V, frequency:50/60Hz. Operating category: AC1. Number of switches:1,000,000. Operating temperature range:-10 to +50°C.Connection type:solid wire (1-10mm²) / flexible wire (1-6mm²). Width:2 modules at17.5mm each.

Producent
Productnummer
2748800
Model
ESC425S
EAN
3250612400133
AC-ingangsspanning
400 V
Certificaten van naleving
RoHS
Aantal
1

Energie

AC-ingangsspanning
400 V

Technische details

Certificaten van naleving
RoHS

Inhoud van de verpakking

Aantal
1
