Productnummer: 2755539

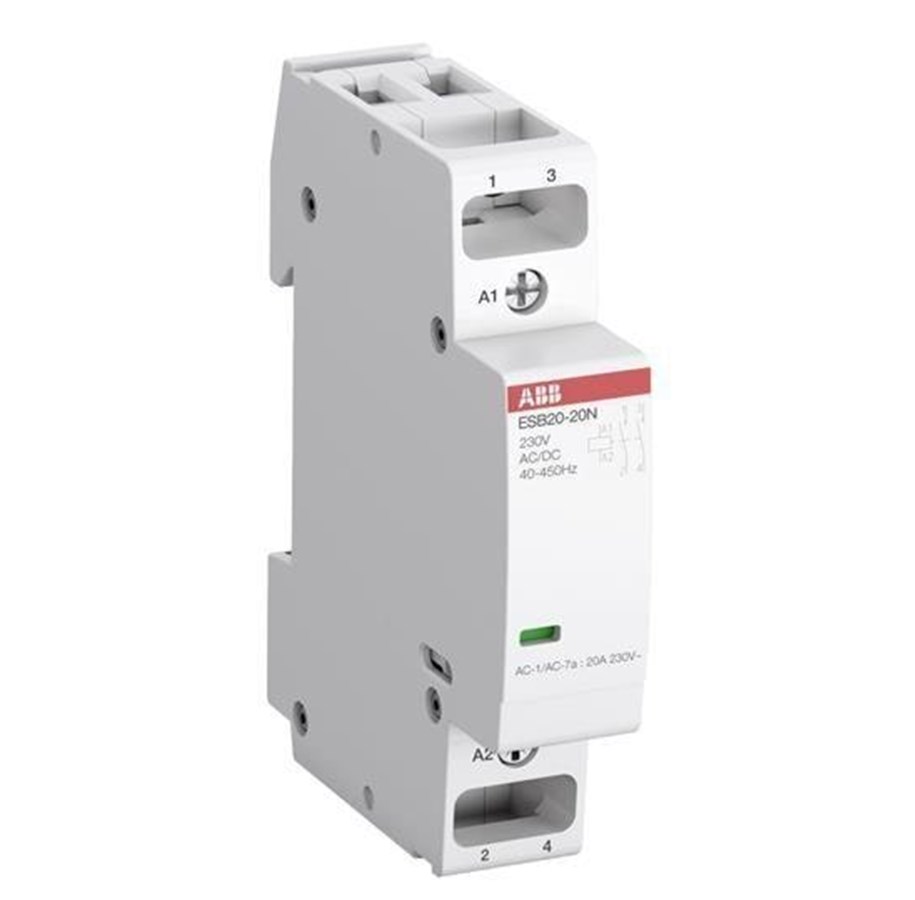

ABB Esb20-20n-06 installation contactor 2no/0nc 230v ac/dc
The ESB20..N installation contactors are used to control single loads up to 20 A and can be operated by AC or DC voltages. These contactors are made for use in household applications as well as in industrial environments.The following benefits are provided: Hum-free operation, low power consumption and integrated overvoltage protection. Various contact combinations and accessories are available.
21,76 €
17,98 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 3 - 4 werkdagen levertijd
Installation contactor 2-pole 2NO, AC-1 20A at 55 degrees, 250V AC, control voltage 230V AC/DC. Product description: Primarily used for lighting groups or purely resistive loads. Position indicator on the front and noise-free coil system. The contactors are designed for DIN rail mounting. Wiring connection is made directly in the cable clamp. Technical specifications: Installation depth: 58 Nominal operating voltage: 220 -250 Number of module units:1 Usage category:7
Producent
Productnummer
2755539
Model
1SBE121111R0620
EAN
3471523007505
Stroom
20 A
Ingangsspanning
230 V
Aantal polen
2
Internationale veiligheidscode (IP)
IP20
Kleur van het product
Wit
Bedrijfstemperatuur (T-T)
-25 - 55 °C
Temperatuur bij opslag
-40 - 80 °C
Hoogte, in bedrijf
0 - 2000 m
Breedte
18 mm
Diepte
65 mm
Hoogte
85 mm
Gewicht
140 g
Aantal per verpakking
1 stuk(s)
Breedte verpakking
88 mm
Diepte verpakking
20 mm
Hoogte verpakking
71 mm
Gewicht verpakking
140 g
Energie
Stroom
20 A
Ingangsspanning
230 V
Kenmerken
Aantal polen
2
Internationale veiligheidscode (IP)
IP20
Kleur van het product
Wit
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-25 - 55 °C
Temperatuur bij opslag
-40 - 80 °C
Hoogte, in bedrijf
0 - 2000 m
Gewicht en omvang
Breedte
18 mm
Diepte
65 mm
Hoogte
85 mm
Gewicht
140 g
Verpakking
Aantal per verpakking
1 stuk(s)
Breedte verpakking
88 mm
Diepte verpakking
20 mm
Hoogte verpakking
71 mm
Gewicht verpakking
140 g
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
