Productnummer: 2449124

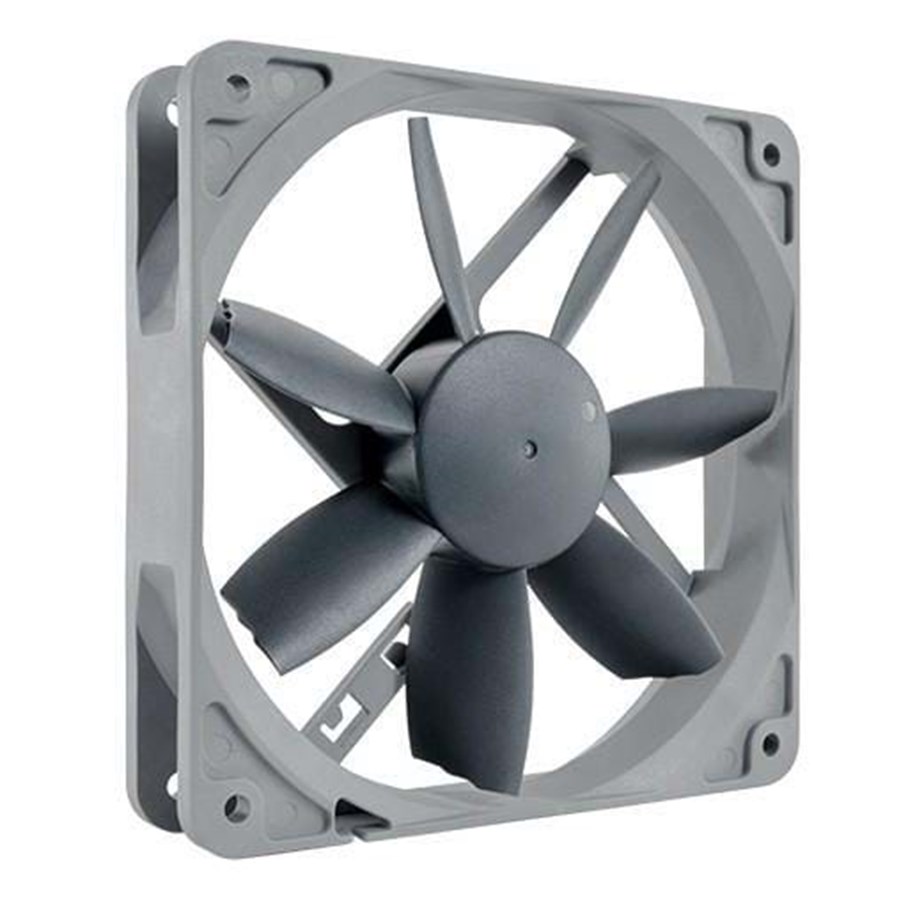

Noctua NF-S12B redux-1200 - Case ventilator - 120mm - Grey - 18 dBA

Kastkoeler, grootte: 120mm x 120mm x 25mm (HxBxD), geluidsniveau: 18.1 dBA, luchtstroom: 59.2 CFM, ventilator RPM: 1200 ±10%, aansluiting op moederbord met 3 pinnen, grijs frame met zwarte bladen.

Lees meer
16,47 € 13,61 € excl. BTW
Goedkoopste privé verzending 4,99 €
Bestelproduct, 14 - 15 werkdagen levertijd

Proven NF-S12B design

Proven NF-S12B design

Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua's classic NF-S12B. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-S12B has become an established reference for quiet 120mm fans.
Streamlined redux edition

Streamlined redux edition

The redux product line reissues some of Noctua's most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.
Designed for efficient case ventilation

Designed for efficient case ventilation

Typical PC case ventilation applications require high airflow but only medium static pressure. The NF-S12B has been specifically designed for high airflow efficiency and low noise in order to provide best results in these so called low impedance applications.
Bevelled Blade Tips

Bevelled Blade Tips

Reducing critical rotor stator interaction, Bevelled Blade Tips permit to combine extended leading edges and a higher blade surface area with quieter operation and thus form a cornerstone of the fan's outstanding efficiency.
Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.
SSO-Bearing

SSO-Bearing

Combining the proven concept of hydrodynamic bearings with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.
Optional accessories

Optional accessories

Users can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.
Colour-customisable with NA-SAVP1 anti-vibration pads

Colour-customisable with NA-SAVP1 anti-vibration pads

The fan’s frame can be outfitted with Noctua’s chromax line NA-SAVP1 anti-vibration pads. Available in black, red, blue, white, green and yellow, these pads not only damp minute vibrations but also allow the fan to be colour-customised in order to coordinate it with popular build colour schemes!
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTTF rating of more than 150.000 hours and come with a full 6-year manufacturer’s warranty.

Producent
Productnummer
2449124
Model
NF-S12B redux-1200
EAN
4716123315292
Naar de website van de producent
Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
12 cm
Rotatiesnelheid ( max)
1200 RPM
Geluidsniveau (hoge snelheid
18,1 dB
Luchtstroom
100,6 m³/uur
Maximum luchtdruk
1,31 mmH2O
Mean time between failures (MTBF)
150000 uur
Aantal ventilatoren
1 ventilator(en)
Fan connector
3-pin
Stroomverbruik (typisch)
1,2 W
Spanning
12 V
Nominale netspanning
0,1 A
Breedte
120 mm
Diepte
25 mm
Hoogte
120 mm
Inclusief schroeven
Ja
Montage gatenpatroon (H x V)
105 x 105 mm
Code geharmoniseerd systeem (HS)
84733080

Prestatie

Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
12 cm
Rotatiesnelheid ( max)
1200 RPM
Geluidsniveau (hoge snelheid
18,1 dB
Luchtstroom
100,6 m³/uur
Maximum luchtdruk
1,31 mmH2O
Mean time between failures (MTBF)
150000 uur

Design

Aantal ventilatoren
1 ventilator(en)
Fan connector
3-pin

Energie

Stroomverbruik (typisch)
1,2 W
Spanning
12 V
Nominale netspanning
0,1 A

Gewicht en omvang

Breedte
120 mm
Diepte
25 mm
Hoogte
120 mm

Inhoud van de verpakking

Inclusief schroeven
Ja

Overige specificaties

Montage gatenpatroon (H x V)
105 x 105 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080
