Productnummer: 2407423

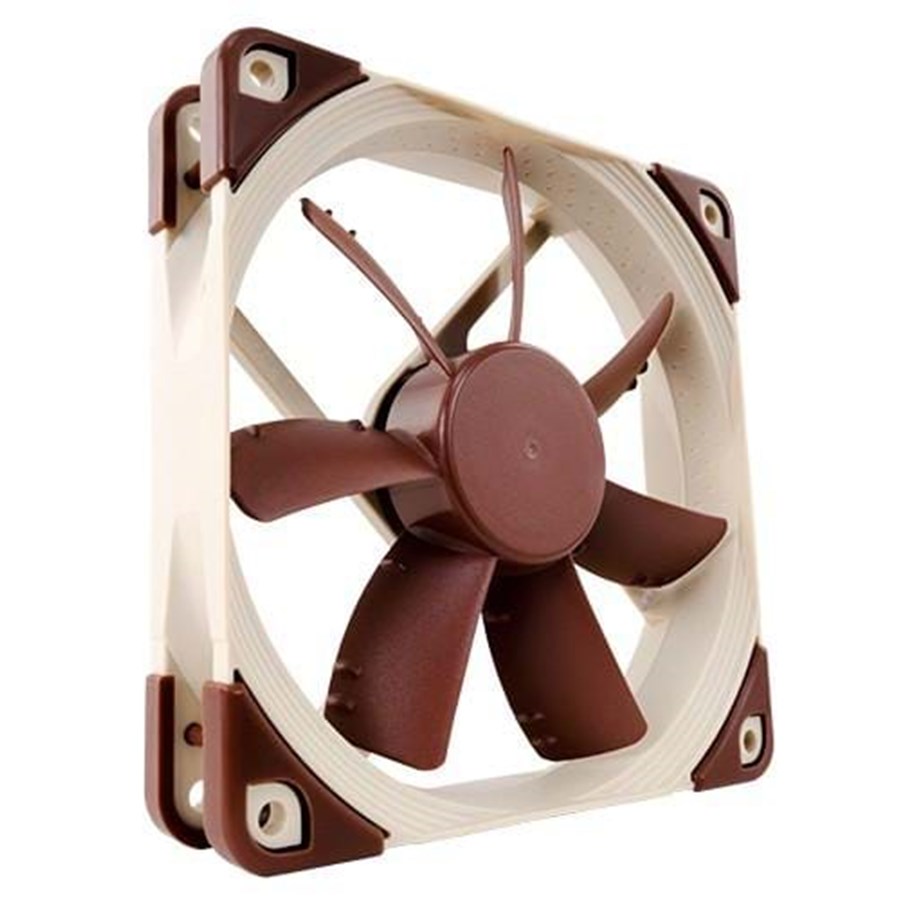

Noctua NF-S12A ULN - Case ventilator - 120mm - Brown - 8 dBA

Kastkoeler, formaat: 120mm x 120mm x 25mm (HxBxD), geluidsniveau: 8.6 dBA, luchtstroom: 43.7 CFM, ventilator RPM: 600-800 ±10%, met een moederbord van 3 pinnen en een Molex-aansluiting van4 pinnen, bruin.

Lees meer
Op voorraad
24,93 € 20,60 € excl. BTW
Goedkoopste privé verzending 4,99 €
4 stks Op voorraad - 2-3 werkdagen levertijd

Award-winning S12 design

Award-winning S12 design

The NF-S12A features the third evolution of Noctua's classic Straight Blade Design that has earned its S12 series countless recommendations from hardware journalists and enthusiasts around the world. Further optimised for even better airflow/noise efficiency, it makes the NF-S12A an ideal quiet case fan.
Anti-Stall Knobs

Anti-Stall Knobs

The NF-S12A's Anti-Stall Knobs reduce flow separation phenomena in medium to high impedance situations and thereby increase the fan's stall margin. This means that the NF-S12A is even more versatile than its renowned predecessor and can achieve better performance on heatsinks and radiators.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-S12A remarkably quiet even at very close distances.
2 speed settings for maximum quietness

2 speed settings for maximum quietness

Providing 800 and 600 rpm speed settings via the supplied adapter, the ULN (Ultra-Low-Noise) version is tailor made for serious silent enthusiasts who demand super-slow running speeds and utmost quietness of operation.
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
SSO2 Bearing

SSO2 Bearing

The NF-S12A features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-S12A sports a CNC milled bearing shell made entirely from brass.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-S12A features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.

Case Fan

Producent
Productnummer
2407423
Model
NF-S12A ULN
EAN
4716123314912
Naar de website van de producent
Productbeschrijving
Noctua NF-S12A ULN - ventilatorhuis
Producttype
Ventilatorhuis
Inhoud pakket
Ultra-lage-ruis adapter (U.L.N.A.), 4 trillingsisolatoren, 3-pins naar 4-pins stroomadapter
Diameter van koelventilator
120 mm
Hoogte ventilator
25 mm
Lager ventilator
SSO2 lager
Rotatiesnelheid
600-800 rpm
Luchtstroom
43,7 cfm
Geluidsniveau
8.6 dBA
Stroomconnector
3 pins-plug
Afmetingen (BxDxH)
12 cm x 12 cm x 2.5 cm

Algemeen

Producttype
Ventilatorhuis
Inhoud pakket
Ultra-lage-ruis adapter (U.L.N.A.), 4 trillingsisolatoren, 3-pins naar 4-pins stroomadapter
Breedte
12 cm
Diepte
12 cm
Hoogte
2.5 cm

Warmteopnemer & koeler

Diameter van koelventilator
120 mm
Hoogte ventilator
25 mm
Lager ventilator
SSO2 lager
Rotatiesnelheid
600-800 rpm
Luchtstroom
43,7 cfm
Luchtdruk
0.62 mm
Geluidsniveau
8.6 dBA
Stroomconnector
3 pins-plug
Startspanning
12 V

Diversen

Montagekit
Inclusief
MTBF (gemiddelde tijd tussen twee storingen)
150,000 uur/uren

Garantie van de fabrikant

Service & Support
Beperkte garantie: - 6 jaar
