Productnummer: 2394152

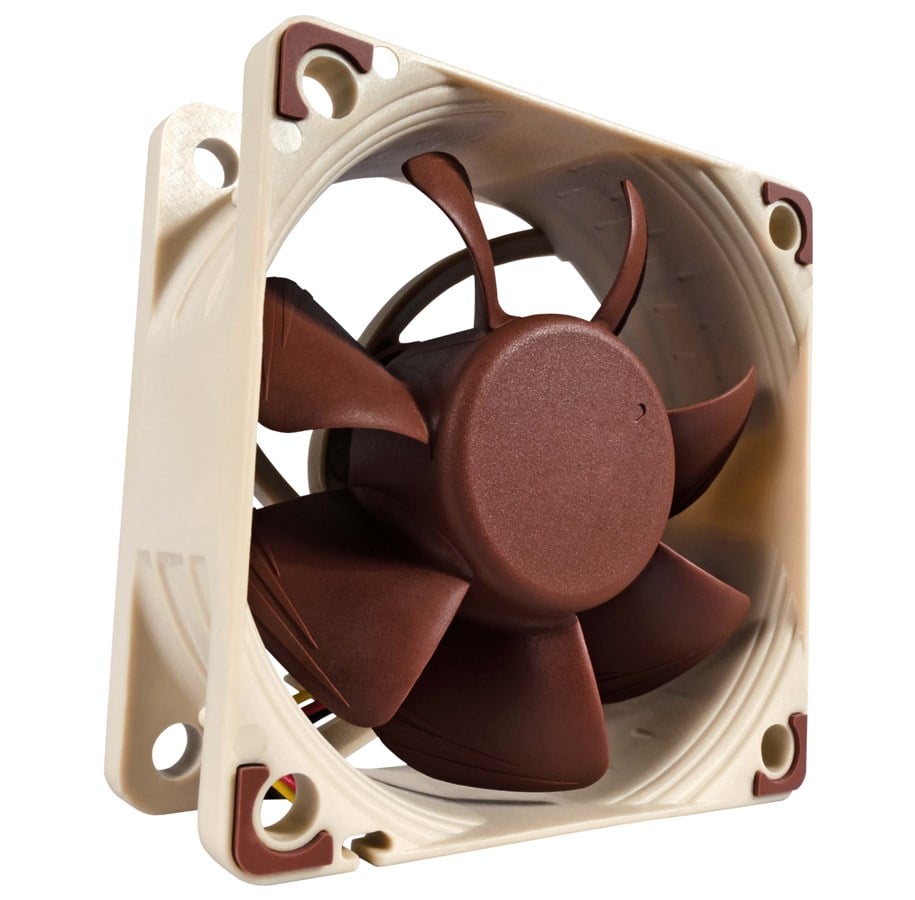

Noctua NF-A6x25 FLX - Case ventilator - 60mm - Brown - 19 dBA

Cabinet cooler, size: 60mm x 60mm x 25mm (HxWxD), noise level: 8.2 - 19.3 dBA, air flow: 9.8 -17.2 CFM, fan RPM:1600-3000 ±10%, with a three-pin motherboard connection and brown color.

Lees meer
Op voorraad
18,40 € 15,21 € excl. BTW
Goedkoopste privé verzending 4,99 €
15+ stks Op voorraad - 2-3 werkdagen levertijd

Featuring advanced aerodynamic design measures such as flow acceleration channels and Noctua's AAO frame, the NF-A6x25 FLX is a highly optimized, premium quality quiet fan. Smooth Commutation Drive technology and Noctua's reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability.

Reduced motor hub size

Reduced motor hub size

Thanks to its streamlined, compact motor design, the NF-A6x25's motor hub is smaller than with conventional 6cm fans. This allows for more blade surface area and thus contributes to the NF-A6x25's superior airflow and pressure performance.
Flow Acceleration Channels

Flow Acceleration Channels

The NF-A6x25 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.
Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A6x25 remarkably quiet even at very close distances.
SSO2 bearing

SSO2 bearing

The NF-A6x25 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
3 speed settings for full flexibility

3 speed settings for full flexibility

Providing 3000, 2400 and 1600 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-A6x25 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and the supplied 3:4 pin adaptor allows the connection of the fan directly to the power supply.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A6x25 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer's warranty.

Producent
Productnummer
2394152
Model
NF-A6x25 FLX
EAN
4716123314707
Naar de website van de producent
Productbeschrijving
Noctua NF-A6x25 FLX - ventilatorhuis
Producttype
Ventilatorhuis
Inhoud pakket
Ultra-lage-ruis adapter (U.L.N.A.), Lage-ruis adapter (L.N.A.), adapter van 3 pins-plug naar 4 pins-Molex, 4x schroeven
Diameter van koelventilator
60 mm
Hoogte ventilator
25 mm
Lager ventilator
SSO2 lager
Rotatiesnelheid
1600-3000 rpm
Luchtstroom
16,7-29,2 cfm
Geluidsniveau
8.2 - 19.3 dBA
Stroomconnector
3 pins-plug
Nominale spanning
12 V
Afmetingen (BxDxH)
6 cm x 6 cm x 2.5 cm

Algemeen

Producttype
Ventilatorhuis
Inhoud pakket
Ultra-lage-ruis adapter (U.L.N.A.), Lage-ruis adapter (L.N.A.), adapter van 3 pins-plug naar 4 pins-Molex, 4x schroeven
Breedte
6 cm
Diepte
6 cm
Hoogte
2.5 cm

Warmteopnemer & koeler

Diameter van koelventilator
60 mm
Hoogte ventilator
25 mm
Lager ventilator
SSO2 lager
Rotatiesnelheid
1600-3000 rpm
Luchtstroom
16,7-29,2 cfm
Geluidsniveau
8.2 - 19.3 dBA
Stroomconnector
3 pins-plug
Nominale spanning
12 V
Nominale stroom
0.12 A
Energieverbruik
1.44 W
Kabellengte
30 cm

Diversen

Montagekit
Inclusief
MTBF (gemiddelde tijd tussen twee storingen)
150,000 uur/uren

Garantie van de fabrikant

Service & Support
Beperkte garantie: - 6 jaar
