Productnummer: 2674878

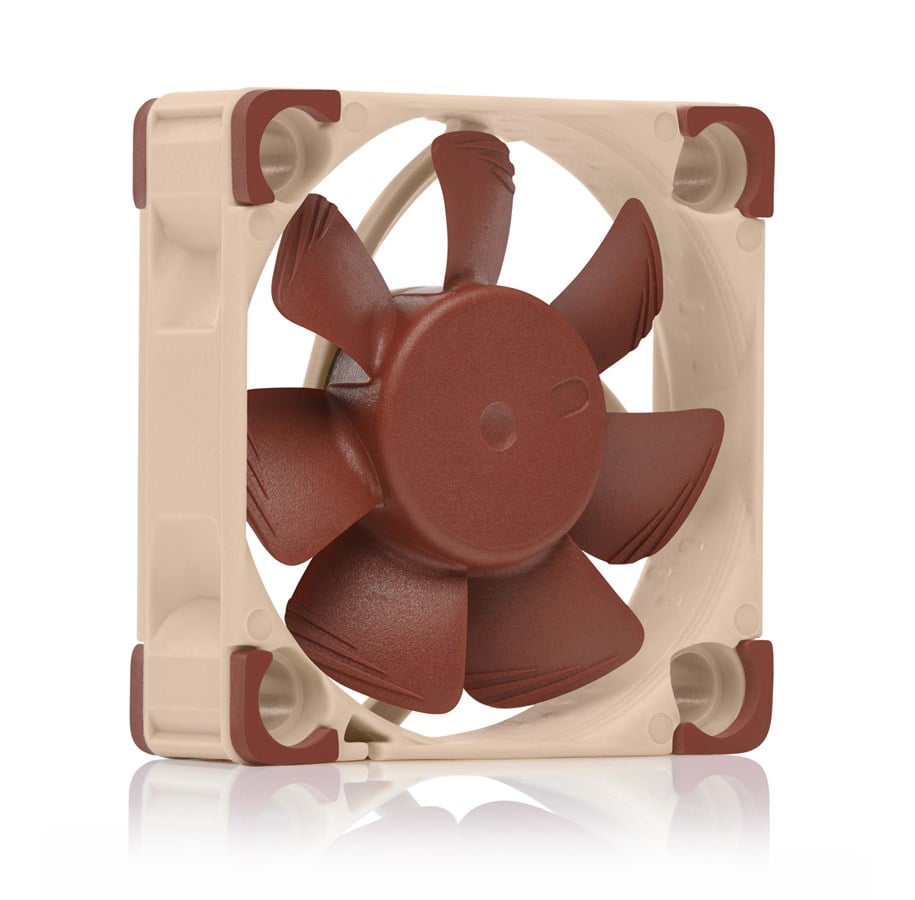

Noctua NF-A4x10 5V PWM - Case ventilator - 40mm - Brown - 20 dBA

Kastkoeler, formaat: 40mm x 40mm x 10mm (HxBxD), geluidsniveau: 12.9 - 19.6 dBA, Luchtstroom: CFM, ventilator RPM: 1000 - 5000 ±10%, PWM-gestuurd, met een vier-pins moederbordaansluiting, werkt op vijf volt en is bruin van kleur.

Lees meer
Op voorraad
17,55 € 14,50 € excl. BTW
Goedkoopste privé verzending 4,99 €
9 stks Op voorraad - 2-3 werkdagen levertijd

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and an AAO frame, the NF-A4x10 5V PWM is a PWM enabled 5V variant of Noctua's award-winning, premium quality quiet 40x10mm fan. The custom designed NE-FD3 PWM IC that integrates Smooth Commutation Drive technology and Noctua's reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability.

Award-winning NF-A4x10 design

Award-winning NF-A4x10 design

Having received more than 50 awards and recommendations from the international press, Noctua’s NF-A4x10 has become a proven premium choice for 40mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
5V PWM version

5V PWM version

Many devices such as network or storage solutions use 5 volt 40mm fans with PWM speed control. With the same operating voltage, PWM support and the included OmniJoin™ adaptor set that makes it compatible with proprietary fan headers, the NF-A4x10 5V PWM is ideal for replacing noisy or broken 5V 40mm fans with PWM.
Reduced motor hub size

Reduced motor hub size

Thanks to its streamlined, compact motor design, the NF-A4x10's motor hub is smaller than with conventional 4cm fans. This allows for more blade surface area and thus contributes to the NF-A4x10's superior airflow and pressure performance.
Flow Acceleration Channels

Flow Acceleration Channels

The NF-A4x10 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A4x10 5V PWM uses Noctua’s custom designed NE-FD3 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Polarity protection

Polarity protection

As many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you're on the safe side if you accidentally connect it with reverse polarity.
SSO2 Bearing

SSO2 Bearing

The NF-A4x10 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
OmniJoin™ Adaptor Set

OmniJoin™ Adaptor Set

Many devices featuring 40mm fans use proprietary fan headers, so the NF-A4x10 comes with Noctua's OmniJoin™ adaptor set. Just cut the original fan's cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-A4x10 to proprietary fan headers!
USB power adaptor cable

USB power adaptor cable

The fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs!
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A4x10 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer's warranty.

Producent
Productnummer
2674878
Model
NF-A4x10 5V PWM
EAN
9010018100327
Naar de website van de producent
Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
4 cm
Rotatiesnelheid ( min)
1000 RPM
Rotatiesnelheid ( max)
5000 RPM
Geluidsniveau (hoge snelheid
19,6 dB
Luchtstroom
8,9 m³/uur
Pulsbreedtemodulatie-ondersteuning
Ja
Type lager
Self-Stabilising Oil-pressure Bearing (SSO)
Kleur van het product
Bruin
Aantal ventilatoren
1 ventilator(en)
Aantal ventilatorbladen
7
Stroomverbruik (typisch)
0,35 W
Spanning
5 V
Stroom (max.)
0,07 A
Breedte
40 mm
Diepte
10 mm
Hoogte
40 mm
Snoerlengte
0,2 m
Meegeleverde kabels
4-pin
Inclusief schroeven
Ja
Antivibratiesysteem
Ja
Gemiddelde storingsinterval (MTTF)
150000 uur
Code geharmoniseerd systeem (HS)
84733080

Prestatie

Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
4 cm
Rotatiesnelheid ( min)
1000 RPM
Rotatiesnelheid ( max)
5000 RPM
Geluidsniveau (hoge snelheid
19,6 dB
Luchtstroom
8,9 m³/uur
Pulsbreedtemodulatie-ondersteuning
Ja
Type lager
Self-Stabilising Oil-pressure Bearing (SSO)

Design

Kleur van het product
Bruin
Aantal ventilatoren
1 ventilator(en)
Aantal ventilatorbladen
7

Energie

Stroomverbruik (typisch)
0,35 W
Spanning
5 V
Stroom (max.)
0,07 A

Gewicht en omvang

Breedte
40 mm
Diepte
10 mm
Hoogte
40 mm
Snoerlengte
0,2 m

Inhoud van de verpakking

Meegeleverde kabels
4-pin
Inclusief schroeven
Ja

Overige specificaties

Antivibratiesysteem
Ja
Gemiddelde storingsinterval (MTTF)
150000 uur

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080
