Productnummer: 3301630

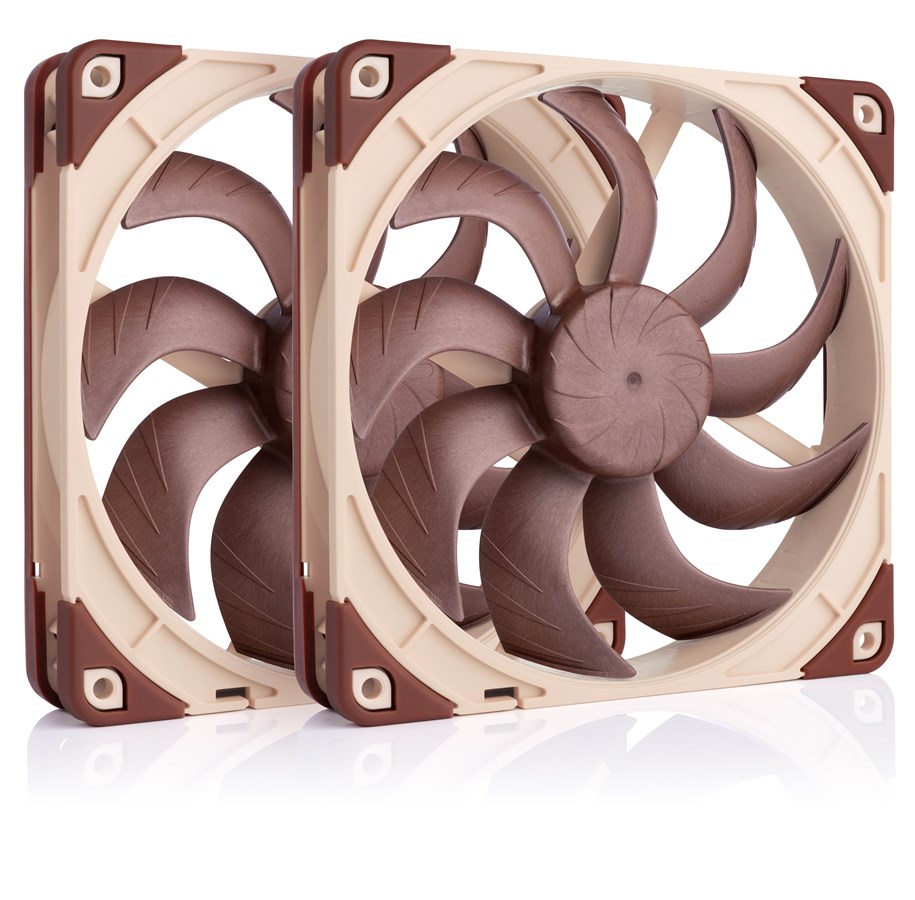

Noctua NF-A14x25 G2 PWM Sx2-PP (2-pack) - Case ventilator - 140mm - Brown - 25 dBA

Ventilator, 140mm x 140mm x 25mm (Hoogte x breedte x diepte), geluidsniveau max 24.8 dBa, lucht doorstroom max 91.58 CFM, max statische druk 2.56 mmH2O, fan snelheid: max 1500 ±10% RPM, PWM gestuurd, lager type: SS02, moederboord aansluiting: 4-pins, kleur bruin.

75,69 € 62,55 € excl. BTW
Goedkoopste privé verzending 4,99 €
Besteld: verwacht op voorraad 14-10-2026

The NF-A14X25 G2 PWM SX2-PP case fan by Noctua offers a solution for enhancing airflow in your system. Featuring a diameter of 140 mm and a height of 25 mm, this fan can achieve a rotation speed of up to 1500 rpm, delivering an airflow of 91.58 cfm while maintaining a noise level of just 24.8 dBA. Designed with features such as Pulse-width modulation (PWM) support and innovative flow acceleration channels, this fan ensures efficient performance and minimal noise, making it suitable for various builds. The inclusion of anti-vibration pads, low-noise adapters, and a range of mounting accessories makes installation straightforward and improves performance in reducing vibrations. Constructed with Sterrox liquid-crystal polymer (LCP), the NF-A14X25 G2 PWM SX2-PP is built for durability, boasting a mean time between failures (MTBF) of 150,000 hours. The fan's design incorporates progressive-bend impellers and ultra-tight tip clearance, further improving its quiet and efficient operation. With overcurrent and overvoltage protection features in place, this case fan meets safety standards, ensuring peace of mind while delivering cooling performance.

Producent
Productnummer
3301630
Model
NF-A14x25 G2 PWM Sx2-PP
EAN
9010018100655
Naar de website van de producent
Productbeschrijving
Noctua NF-A14X25 G2 PWM SX2-PP - ventilatorhuis
Producttype
Ventilatorhuis
Aantal in verpakking
2 (weergegeven specificaties zijn voor één artikel)
Inhoud pakket
2 NA-RC16 low-noise adapters (L.N.A), NA-YC1 4-pin PWM y-cable, 2 NA-EC1 extension cables (30 cm), 8 NA-AV2 anti-vibration mounts, 2 NA-AVG2-LR anti-vibration gaskets, 8 NA-AVP1-LR load-relief anti-vibration pads, ventilatorschroeven, NF-A14x25 G2 PWM PPA fan, NF-A14x25 G2 PWM PPB fan
Diameter van koelventilator
140 mm
Hoogte ventilator
25 mm
Lager ventilator
SSO2 lager
Rotatiesnelheid
300-1500 rpm
Luchtstroom
91.58 cfm
Geluidsniveau
24.8 dBA
Stroomconnector
4 pins-PWM
Nominale spanning
12 V
Functies
A-Series blades with flow acceleration channels, Advanced Acoustic Optimisation (AAO), PWM-ondersteuning (Pulse Width Modulation), progressive-bend impeller, luchtstroomversnellingskanalen, winglet-bladen, ultra-tight tip clearance, Stepped Inlet Design, Inner Surface Microstructures, geïntegreerde anti-trillingskussens, anti-vibration gaskets, Metal Bearing Shell, stops at 0% PWM, SupraTorque technology, etaPERF motor, Smooth Commutation Drive 2
Productmateriaal
Sterrox liquid-crystal polymer (LCP)
Afmetingen (BxDxH)
14 cm x 14 cm x 2.5 cm
Voorzieningen
Overbelastingsbescherming, overspanningsbescherming

Algemeen

Aantal in verpakking
2 (weergegeven specificaties zijn voor één artikel)
Producttype
Ventilatorhuis
Productmateriaal
Sterrox liquid-crystal polymer (LCP)
Inhoud pakket
2 NA-RC16 low-noise adapters (L.N.A), NA-YC1 4-pin PWM y-cable, 2 NA-EC1 extension cables (30 cm), 8 NA-AV2 anti-vibration mounts, 2 NA-AVG2-LR anti-vibration gaskets, 8 NA-AVP1-LR load-relief anti-vibration pads, ventilatorschroeven, NF-A14x25 G2 PWM PPA fan, NF-A14x25 G2 PWM PPB fan
Breedte
14 cm
Diepte
14 cm
Hoogte
2.5 cm

Warmteopnemer & koeler

Diameter van koelventilator
140 mm
Hoogte ventilator
25 mm
Lager ventilator
SSO2 lager
Rotatiesnelheid
300-1500 rpm
Luchtstroom
91.58 cfm
Luchtdruk
2.56 mm
Geluidsniveau
24.8 dBA
Details van geluid en prestaties
19.7 dBA / 74.81 cfm bij 300-1250 rpm
Stroomconnector
4 pins-PWM
Nominale spanning
12 V
Nominale stroom
0.19 A
Energieverbruik
2.28 W
Kabellengte
20 cm
Functies
A-Series blades with flow acceleration channels, Advanced Acoustic Optimisation (AAO), PWM-ondersteuning (Pulse Width Modulation), progressive-bend impeller, luchtstroomversnellingskanalen, winglet-bladen, ultra-tight tip clearance, Stepped Inlet Design, Inner Surface Microstructures, geïntegreerde anti-trillingskussens, anti-vibration gaskets, Metal Bearing Shell, stops at 0% PWM, SupraTorque technology, etaPERF motor, Smooth Commutation Drive 2

Diversen

MTBF (gemiddelde tijd tussen twee storingen)
150,000 uur/uren
Voorzieningen
Overbelastingsbescherming, overspanningsbescherming
Conformiteitsnormen
TUV, UKCA, UL, EN 62368-1, EN 55035, EN 55032, UL-507

Garantie van de fabrikant

Service & Support
Beperkte garantie: - 6 jaar
