Productnummer: 3425254

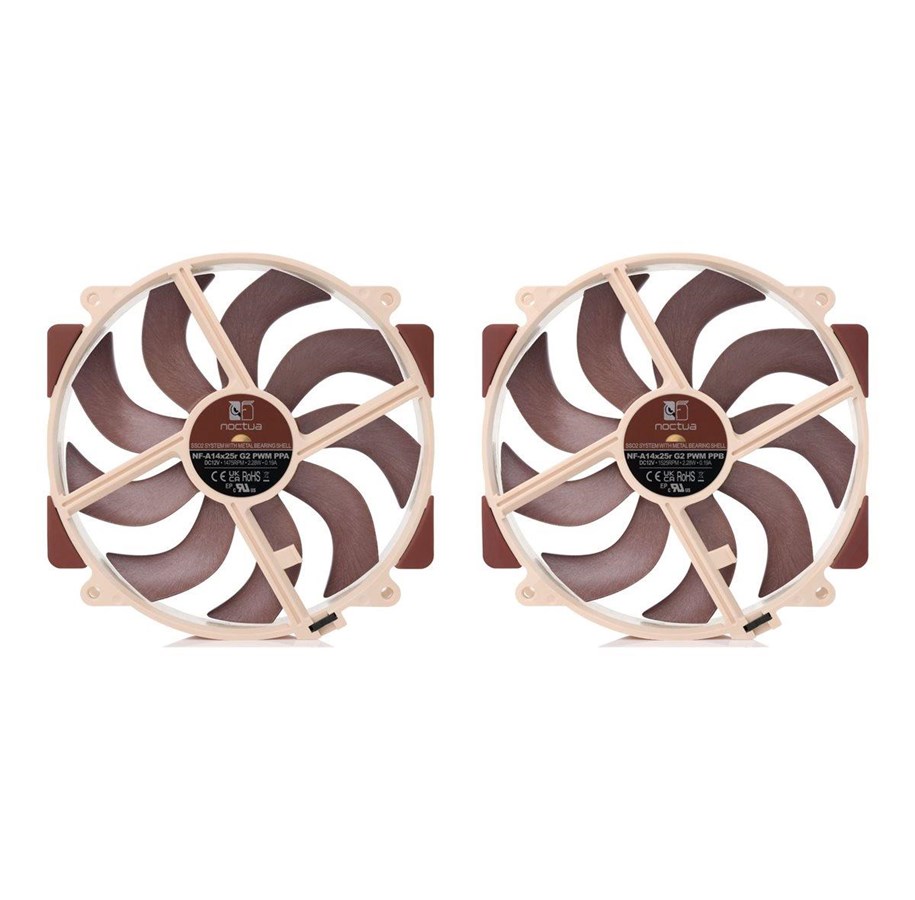

Noctua NF-A14X25R G2 PWM SX2 PP - system fan kit - Case ventilator - 140mm - Brown

Ventilator, 140mm x 140mm x 25mm (Hoogte x breedte x diepte), geluidsniveau max 24.8 dBa, lucht doorstroom max 91.58 CFM, max statische druk 2.56 mmH2O, fan snelheid: max 1500 ±10% RPM, PWM gestuurd, lager type: SS02, moederboord aansluiting: 4-pins, multipack met 2 fans, kleur bruin.

53,69 € Het actieproduct is uitverkocht
71,58 €
59,16 € excl. BTW
Campagne eindigt op: 19-07-2026 23:59 – De promotieprijs geldt voor een beperkt aantal producten. Wanneer deze zijn verkocht, wordt het product tegen de normale prijs aangeboden.
Goedkoopste privé verzending 4,99 €
Extern magazijn, 5 - 6 werkdagen levertijd (verwacht in eigen magazijn 23-7-2026)

The Noctua NF-A14X25R G2 PWM SX2 PP system fan kit is designed for users seeking effective cooling solutions with low noise levels. This fan kit includes two fans and essential accessories, including two Low-Noise Adaptors, fan screws, extension cables, and anti-vibration mounts, enabling easy installation and customization for any setup. With a fan diameter of 140 mm and features such as pulse-width modulation (PWM) support, overload protection, and reverse polarity protection, it offers reliable operation that maximizes performance while minimizing sound output.Engineered with Advanced Acoustic Optimization, the NF-A14X25R delivers airflow of 155.6 m³/h at a sound level of 24.8 dBA. The fan's design incorporates unique technologies such as flow acceleration channels and winglet blades to enhance airflow efficiency. The integrated anti-vibration pads and the stepped inlet design further reduce noise, allowing for a smooth and silent performance. Whether upgrading an existing system or building a new one, this fan kit provides reliability with a lifespan of 150,000 hours, ensuring sustained cooling for years to come.

Producent
Productnummer
3425254
Model
NF-A14x25r G2 PWM Sx2-PP
EAN
9010018100662
Naar de website van de producent
Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
14 cm
Rotatiesnelheid ( max)
1500 RPM
Geluidsniveau (hoge snelheid
24,8 dB
Luchtstroom
155,6 m³/uur
Type lager
Self-Stabilising Oil-pressure (SSO) bearing
Statische druk ventilator
2,56 mmH2O
Materiaal
Vloeibaar-kristalpolymeer (LCP)
Fan connector
4-pin
Spanning
12 V
Stroom (max.)
0,19 A
Maten ventilator (b x d x h)
140 x 25 x 140 mm
Bearing technologie
SSO2
Garantieperiode
6 jaar
Inclusief schroeven
Ja
Adapter voor laag geluidsniveau (LNA)
Ja
Montage gatenpatroon (H x V)
105 x 105 mm
Gemiddelde storingsinterval (MTTF)
150000 uur

Prestatie

Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
14 cm
Rotatiesnelheid ( max)
1500 RPM
Geluidsniveau (hoge snelheid
24,8 dB
Luchtstroom
155,6 m³/uur
Type lager
Self-Stabilising Oil-pressure (SSO) bearing
Statische druk ventilator
2,56 mmH2O

Design

Materiaal
Vloeibaar-kristalpolymeer (LCP)
Fan connector
4-pin

Energie

Spanning
12 V
Stroom (max.)
0,19 A

Gewicht en omvang

Maten ventilator (b x d x h)
140 x 25 x 140 mm

Technische details

Bearing technologie
SSO2
Garantieperiode
6 jaar

Inhoud van de verpakking

Inclusief schroeven
Ja
Adapter voor laag geluidsniveau (LNA)
Ja

Overige specificaties

Montage gatenpatroon (H x V)
105 x 105 mm
Gemiddelde storingsinterval (MTTF)
150000 uur
