Productnummer: 3472940

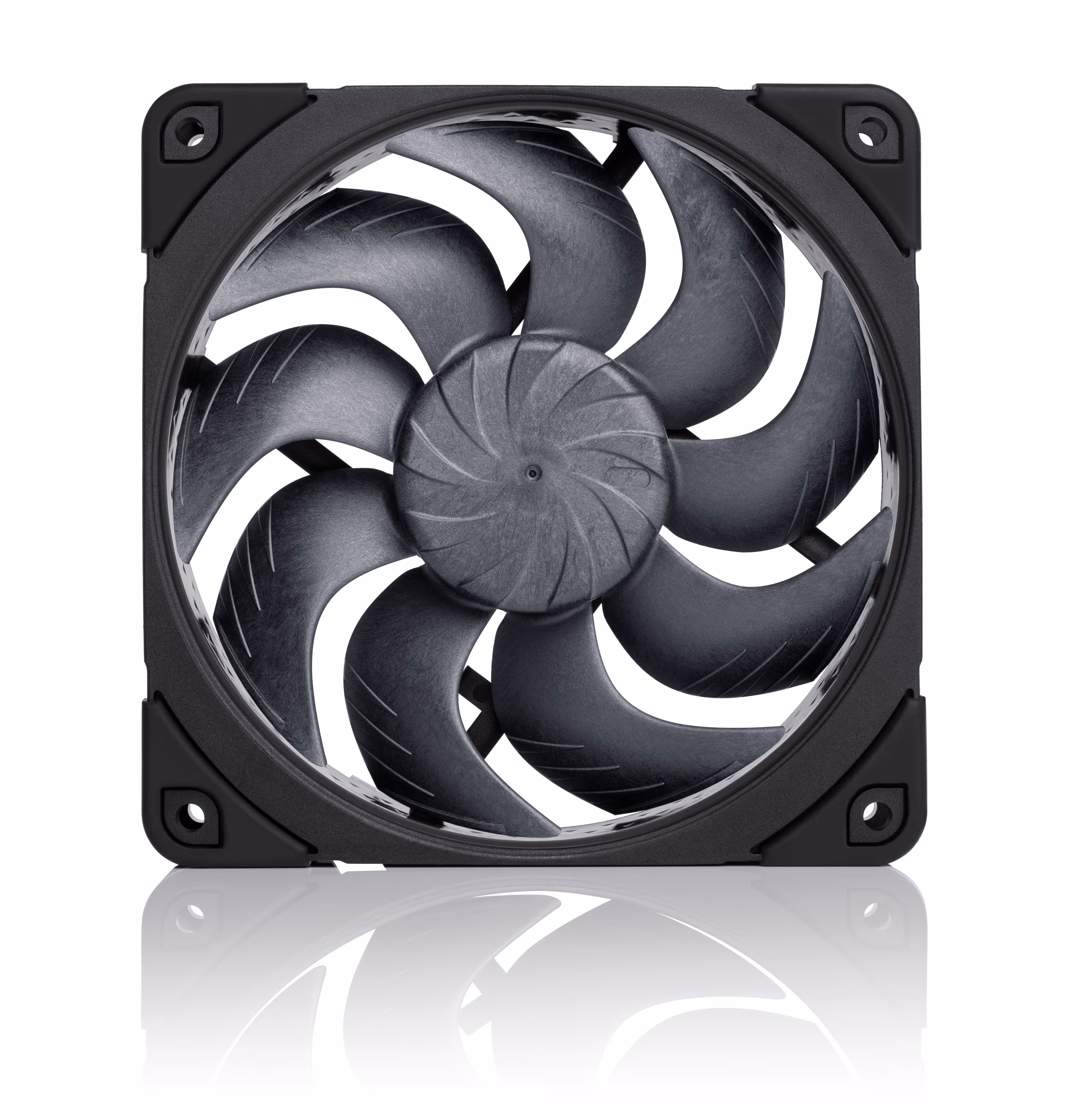

Noctua NF-A12x25 G2 PWM chromax.black - Case ventilator - 120mm - Black

Ventilator, 120mm x 120mm x 25mm (Hoogte x breedte x diepte), geluidsniveau max 22.5 dBa, lucht doorstroom max 63.15 CFM, fan snelheid: 0 - 1800 ±10% RPM, PWM gestuurd, lager type: Fluid Dynamic Bearing (FDB), , kan gekoppeld worden ja - via kabels, kleur zwart.

• Toonaangevende, stille koelprestaties voor pc-behuizingen en waterkoelingsradiatoren in een strak, volledig zwart ontwerp: De chromax.black-versie van de bekroonde NF-A12x25 G2 120mm-ventilator.

Op voorraad
33,40 € 27,60 € excl. BTW
Goedkoopste privé verzending 4,99 €
15+ stks Op voorraad - 2-3 werkdagen levertijd

State-of-the-art quiet cooling performance for PC cases and water cooling radiators in a sleek all-black design: The chromax.black version of the award-winning NF-A12x25 G2 120mm fan.

Succeeding the iconic NF-A12x25, the NF-A12x25 G2 has quickly established itself as a new benchmark for premium quality quiet 120x25mm fans. Its advanced aerodynamic engineering featuring a novel Progressive Bend impeller design with a Centrifugal Turbulator hub, winglets, and a record tight tip clearance of only 0.5mm enables the G2 model to provide a significant boost in performance-to-noise efficiency over its renowned predecessor: Whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on water cooling radiators, where its etaPERF™ motor with SupraTorque™ allows leveraging extra torque headroom, the NF-A12x25 G2 is a proven winner.

The chromax.black edition combines the NF-A12x25 G2’s Sterrox® liquid-crystal polymer impeller, comprehensive feature set and breakthrough quiet cooling proficiency with an attractive black design, which can be customised with coloured anti-vibration pads that are available separately.

Topped off with Noctua’s trusted premium-grade SSO2 bearing, an MTTF rating of more than 150,000 hours and a 6-year manufacturer’s warranty, the NF-A12x25 G2 PWM chromax.black is the perfect choice for users who are looking for cutting-edge quality, quietness and performance in an all-black style.

Award-winning NF-A12x25 G2 design
Providing a significant performance boost over the renowned first-generation NF-A12x25, the NF-A12x25 G2 has become a new favourite among quiet cooling enthusiasts. With rave reviews and dozens of awards from hardware media around the world, the G2 model is a proven premium choice for the highest demands.

chromax.black edition
From the impeller and fan frame to the anti-vibration pads, anti-vibration gasket, anti-vibration mounts, screws and cables, the chromax.black edition is black from head to toe, making it easy to integrate into all-black PC builds and various other environments.

Ultra-tight tip clearance
The NF-A12x25 G2 has an extremely tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.5mm. This highly ambitious design helps the NF-A12x25 G2 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame.

Highly optimised P/Q curve for all applications
The NF-A12x25 G2’s sophisticated aerodynamic design allows for a pressure to airflow (P/Q) curve that is extremely strong in the critical mid-section. This means that the NF-A12x25 G2 is a true jack-of-all-trades with excellent performance in both static pressure demanding and airflow demanding applications.

Producent
Productnummer
3472940
Model
NF-A12x25 G2 PWM chromax.black
EAN
9010018100761
Naar de website van de producent
Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
12 cm
Aantal snelheden
4
Rotatiesnelheid ( min)
0 RPM
Rotatiesnelheid ( max)
1800 RPM
Geluidsniveau (hoge snelheid
22,5 dB
Minimum luchtstroom
63,15 cfm
Luchtstroom
107,3 m³/uur
Pulsbreedtemodulatie-ondersteuning
Ja
Type lager
Zelfstabiliserend oliedruklager (SSO2)
Aantal per verpakking
1 stuk(s)
Statische druk ventilator
3,14 mmH2O
Pomp gemiddelde storingsinterval (MTTF)
150000 uur
Bedrijfstemperatuur (T-T)
-10 - 60 °C
Kleur van het product
Zwart
Materiaal
Polybutyleentereftalaat (PBT), Acrylonitrielbutadieenstyreen (ABS), Vloeibaar-kristalpolymeer (LCP), Rubber
Aantal ventilatoren
1 ventilator(en)
Aantal ventilatorbladen
9
Fan connector
4-pin
Netvoeding
1,8 W
Spanning
13.2 V
Spanningclassificatie
12 V
Startspanning
7 V
Stroomspanning bescherming
Overstroom, Overspanning
Stroom (max.)
0,15 A
Breedte
120 mm
Diepte
25 mm
Hoogte
120 mm
Gewicht
195 g
Snoerlengte
0,5 m
Certificaten van naleving
UL, CE, UKCA, TÜV mark, REACH, RoHS
Type verpakking
Doos
Meegeleverde kabels
4-pin
Montage gereedschap
Ja

Prestatie

Geschikte locatie
Computer behuizing
Soort
Ventilator
Ventilator diameter
12 cm
Aantal snelheden
4
Rotatiesnelheid ( min)
0 RPM
Rotatiesnelheid ( max)
1800 RPM
Geluidsniveau (hoge snelheid
22,5 dB
Minimum luchtstroom
63,15 cfm
Luchtstroom
107,3 m³/uur
Pulsbreedtemodulatie-ondersteuning
Ja
Type lager
Zelfstabiliserend oliedruklager (SSO2)
Aantal per verpakking
1 stuk(s)
Statische druk ventilator
3,14 mmH2O
Pomp gemiddelde storingsinterval (MTTF)
150000 uur
Bedrijfstemperatuur (T-T)
-10 - 60 °C

Design

Kleur van het product
Zwart
Materiaal
Polybutyleentereftalaat (PBT), Acrylonitrielbutadieenstyreen (ABS), Vloeibaar-kristalpolymeer (LCP), Rubber
Aantal ventilatoren
1 ventilator(en)
Aantal ventilatorbladen
9
Fan connector
4-pin

Energie

Netvoeding
1,8 W
Spanning
13.2 V
Spanningclassificatie
12 V
Startspanning
7 V
Stroomspanning bescherming
Overstroom, Overspanning
Stroom (max.)
0,15 A

Gewicht en omvang

Breedte
120 mm
Diepte
25 mm
Hoogte
120 mm
Gewicht
195 g
Snoerlengte
0,5 m

Technische details

Certificaten van naleving
UL, CE, UKCA, TÜV mark, REACH, RoHS

Inhoud van de verpakking

Type verpakking
Doos
Meegeleverde kabels
4-pin
Montage gereedschap
Ja

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
