Productnummer: 2595713

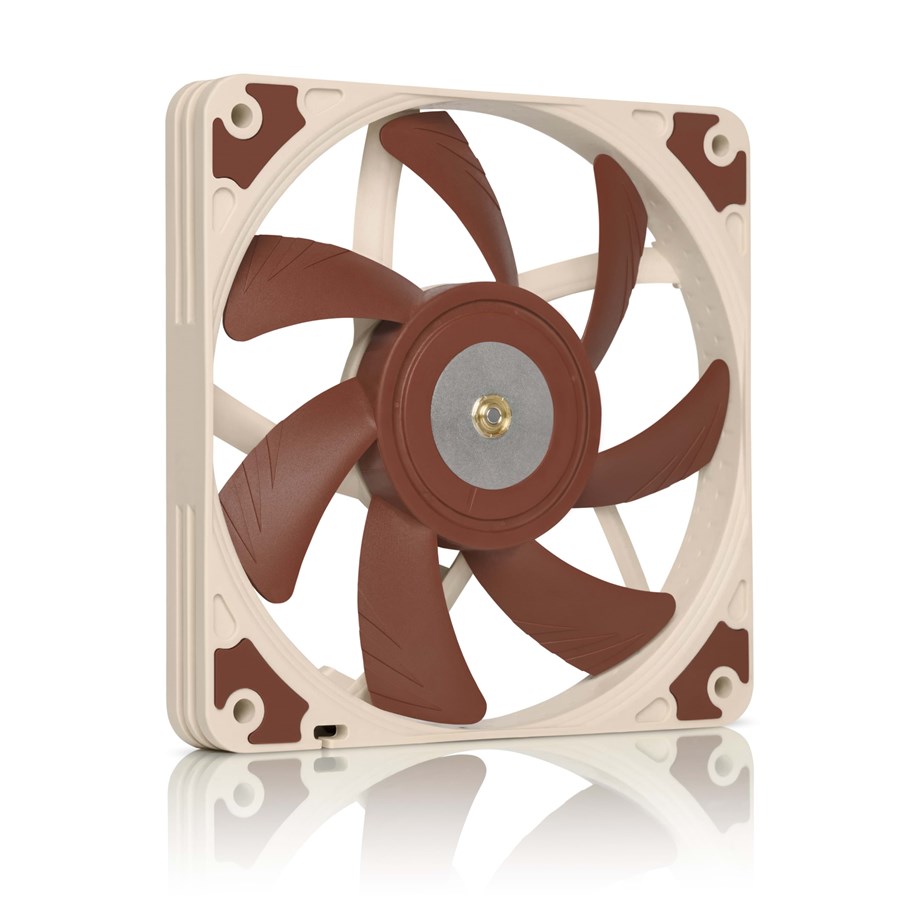

Noctua NF-A12x15 FLX - Case ventilator - 120mm - Brown - 24 dBA
Cabinet cooler, size: 120mm x 120mm x 15mm (HxWxD), noise level: 10.2 - 23.9 dBA, air flow: 46.5 - 94.2 CFM, fan RPM: 950 -1850 ±10%, with a three-pin motherboard and four-pin Molex connection, brown in color.
24,51 €
20,26 € excl. BTW
Goedkoopste privé verzending 4,99 €
Bestelproduct, 8 - 9 werkdagen levertijd
15mm slim designHaving a thickness of only 15mm, the NF-A12x15 is much slimmer than standard 120x25mm fans. This makes it ideal for typical slim fan applications such as low-profile CPU coolers as well as for freeing up space by replacing standard 120x25mm fans on tower coolers, radiators or in PC cases. |
Metal-reinforced motor hubWith many larger-diameter slim fan designs, the shorter axis and bearing lead to a reduced running stability and lifespan. The NF-A12x15 uses a metal-reinforced motor hub, a measure typically found in high-speed industrial fans, in order to guarantee Noctua’s signature stability and longevity. |
Flow Acceleration ChannelsThe NF-A12x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. |
AAO frameNoctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency. |
Stepped Inlet DesignNoctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments. |
Inner Surface MicrostructuresWith the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. |
Integrated Anti-Vibration PadsIntegrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks. |
Custom-designed PWM IC with SCDSupporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds. |
Stops at 0% PWMWhen the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow. |
Low-Noise AdaptorThe NF-A12x15 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 1850 to 1400rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1400rpm or to cap the maximum speed when using automatic PWM control. |
Extensive cabling optionsThe fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second fan to the same PWM fan header for automatic control. |
SSO2 bearingThe NF-A12x15 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. |
6-year manufacturer’s warrantyNoctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A12x15 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty. |
Producent
Productnummer
2595713
Model
NF-A12x15 FLX
EAN
9010018100099
Naar de website van de producent
Productbeschrijving
Noctua NF-A12x15 FLX - ventilatorhuis
Producttype
Ventilatorhuis
Inhoud pakket
Voeding, schroeven, Ultra-lage-ruis adapter (U.L.N.A.), Lage-ruis adapter (L.N.A.), OmniJoin Adaptor Set, verlengkabel (30 cm), NA-AV3 anti-trillingsmontage
Diameter van koelventilator
120 mm
Hoogte ventilator
15 mm
Lager ventilator
SSO2 lager
Rotatiesnelheid
1850 omw/min.
Luchtstroom
94,2 cfm
Geluidsniveau
23.9 dBA
Stroomconnector
3 pins-plug
Nominale spanning
12 V
Functies
Advanced Acoustic Optimisation (AAO), luchtstroomversnellingskanalen, geïntegreerde anti-trillingskussens, Smooth Commutation Drive 2 (SCD2)-technologie, Stepped Inlet Design, Inner Surface Microstructures
Afmetingen (BxDxH)
12 cm x 12 cm x 1.5 cm
Voorzieningen
Flexibiliteit
Algemeen
Producttype
Ventilatorhuis
Inhoud pakket
Voeding, schroeven, Ultra-lage-ruis adapter (U.L.N.A.), Lage-ruis adapter (L.N.A.), OmniJoin Adaptor Set, verlengkabel (30 cm), NA-AV3 anti-trillingsmontage
Breedte
12 cm
Diepte
12 cm
Hoogte
1.5 cm
Warmteopnemer & koeler
Diameter van koelventilator
120 mm
Hoogte ventilator
15 mm
Lager ventilator
SSO2 lager
Rotatiesnelheid
1850 omw/min.
Luchtstroom
94,2 cfm
Geluidsniveau
23.9 dBA
Stroomconnector
3 pins-plug
Nominale spanning
12 V
Nominale stroom
0.13 A
Energieverbruik
1.56 W
Functies
Advanced Acoustic Optimisation (AAO), luchtstroomversnellingskanalen, geïntegreerde anti-trillingskussens, Smooth Commutation Drive 2 (SCD2)-technologie, Stepped Inlet Design, Inner Surface Microstructures
Diversen
Montagekit
Inclusief
MTBF (gemiddelde tijd tussen twee storingen)
150,000 uur/uren
Voorzieningen
Flexibiliteit
Garantie van de fabrikant
Service & Support
Beperkte garantie: - 6 jaar
